Oxley Signal Filter Panel Mount 200V dc 10 A 10000MHz Lead Termination DLT4

Oxley DLT4 Signal Filter is a ceramic dielectric RFI suppression filter designed for industrial electronic applications requiring high-frequency filtering. With a maximum voltage rating of 200V DC and current rating of 10 A, it effectively suppresses unwanted electromagnetic interference in signal and DC lines. The filter operates at a frequency of up to 10000MHz, making it suitable for high-frequency noise reduction.

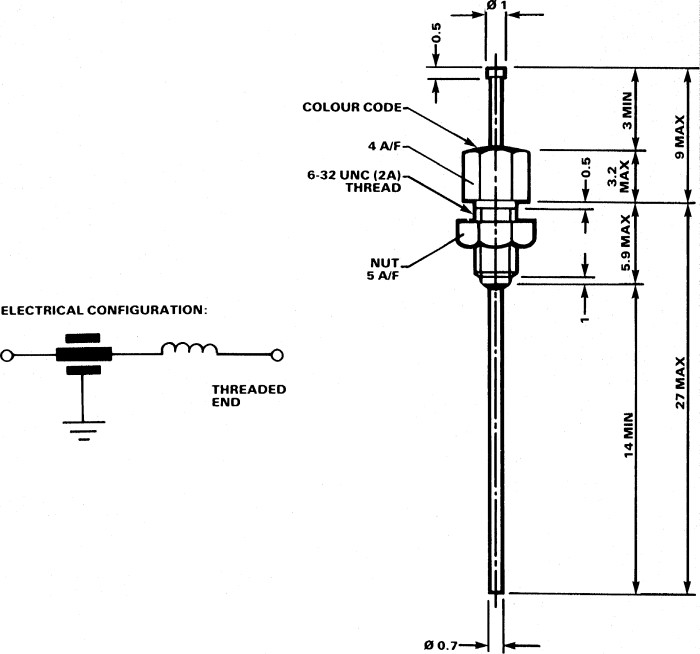

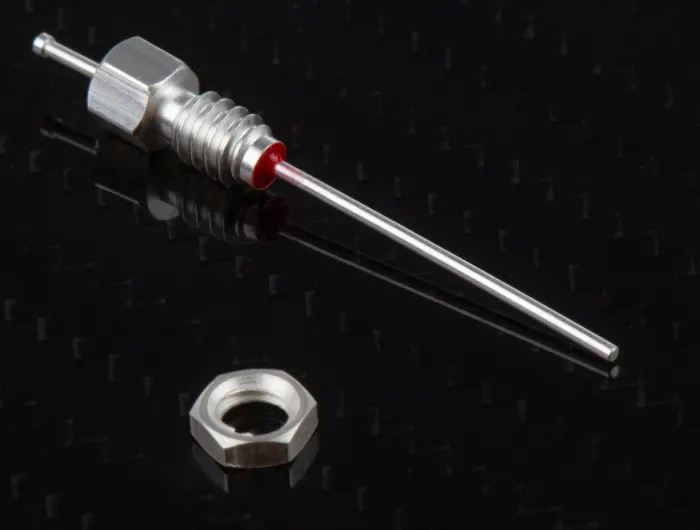

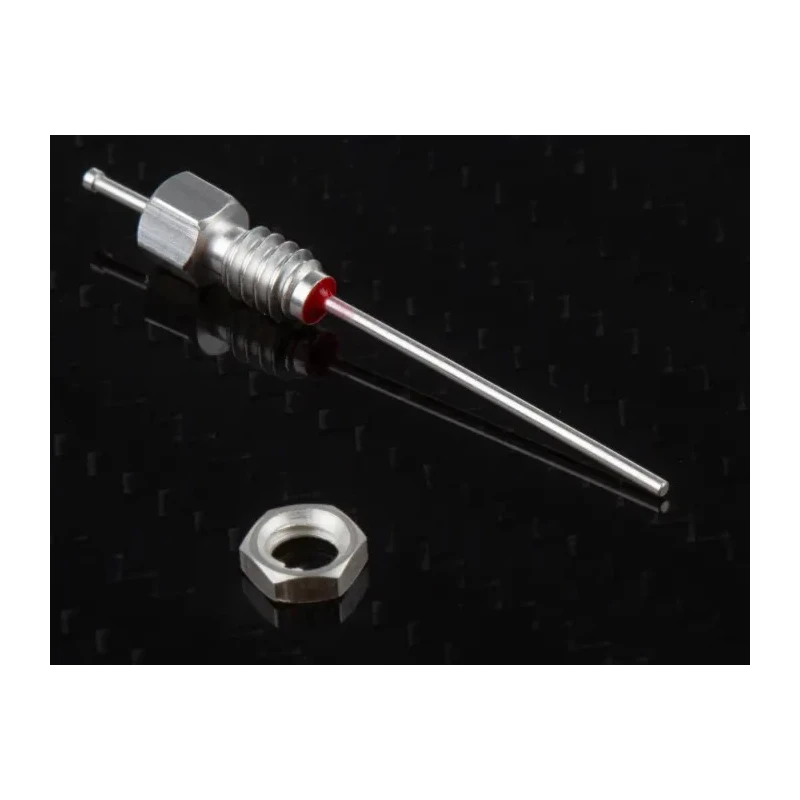

The filter is encapsulated within a robust brass case, intended for panel or chassis mounting where compact size is essential. With dimensions of 22 mm in height and 36 mm in length, it fits tightly into constrained spaces. Its construction uses a combination of a miniature discoidal capacitor and a ferrite inductor, providing reliable reactive filtering effects.

Its operating temperature range from -55°C to 125°C ensures stable performance in harsh industrial environments. The lead termination style simplifies electrical connections for ease of installation. The filter is color-coded on the non-threaded end to assist in quick identification during assembly or maintenance.

Certified with AS9100 Rev D, ISO14001:2015, and ISO9001:2015 standards, this Oxley DLT4 filter is trusted for quality and compliance in demanding industrial and electronic applications. Typical use cases include EMI/RFI noise suppression in control panels, communication equipment, industrial devices, and other electronic instrumentation requiring precise signal filtering.

Choose the Oxley DLT4 Signal Filter for your panel mounting needs where compact size, high frequency, and reliable suppression of electromagnetic noise are critical. It is widely used in industrial automation, manufacturing, HVAC control systems, and electronic assembly projects.

Encapsulated in a brass case suitable for chassis mounting where space is limited. Combines a miniature discoidal capacitor and ferrite inductor for effective reactive filtering. Capacitance of 22nF ideal for low pass filtering applications of DC and signal lines.

Designed to operate between -55°C and 125°C for durability in harsh environments. Color coded on non-threaded end for easy identification. Mounts easily on panels with leads measuring 22 mm height and 36 mm length. Complies with AS9100 Rev D, ISO14001:2015, and ISO9001:2015 quality standards.
