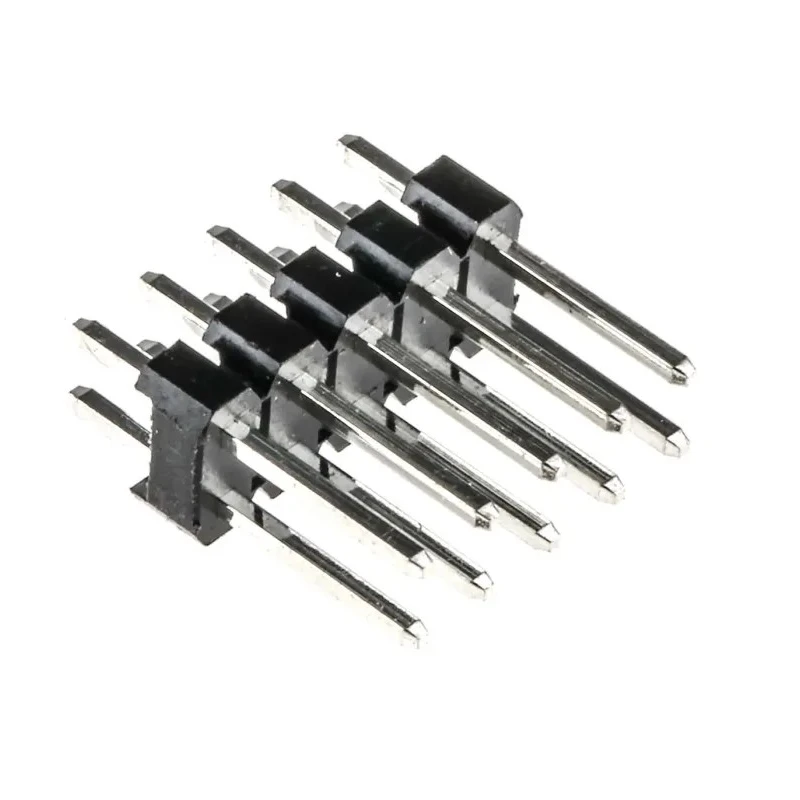

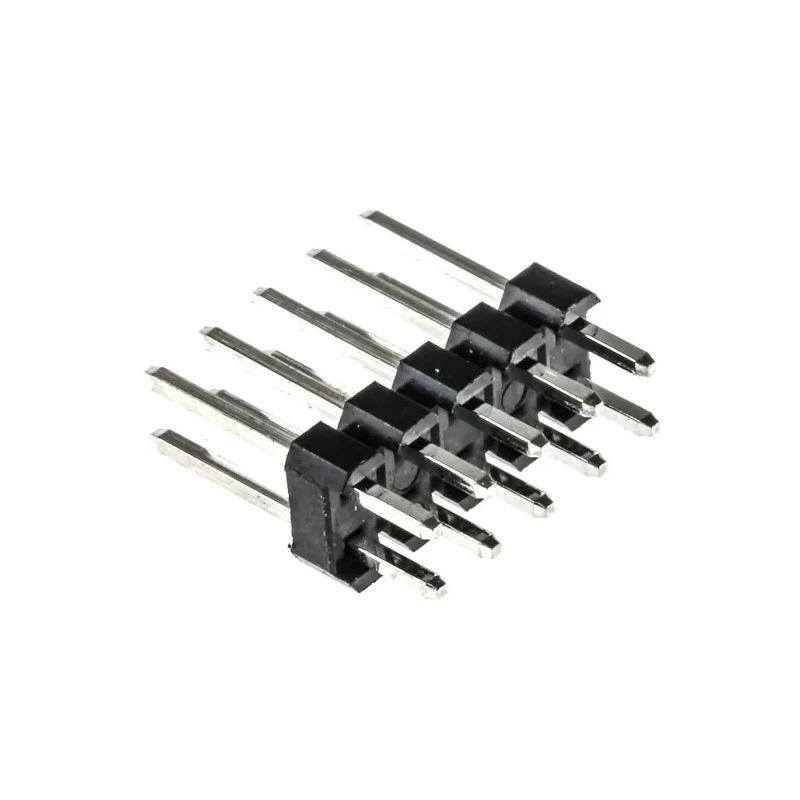

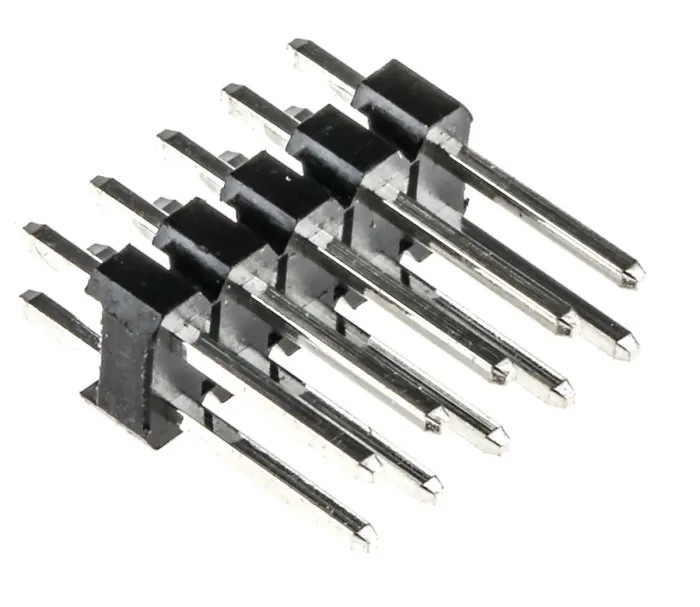

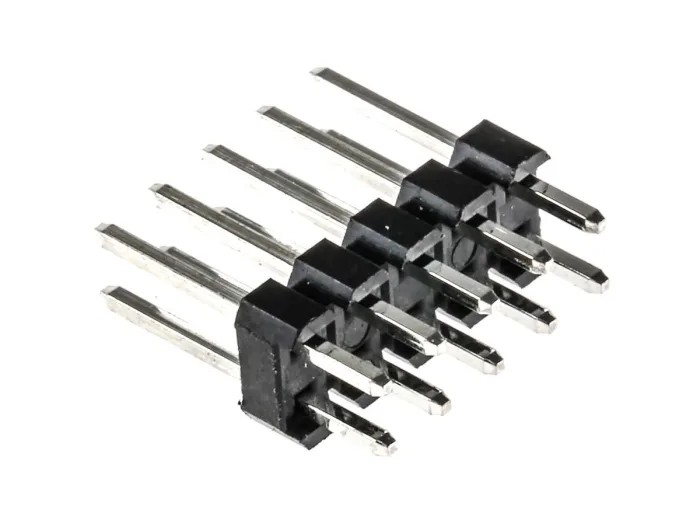

RS PRO Straight Through Hole Pin Header 10 Contacts 2.54 mm Pitch 2 Row Unshrouded 251-8143
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Orientation | Straight |
| Current | 3A |
| Model | 251-8143 |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Termination Type | Solder |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Tail Pin Length | 3mm |
| Mating Pin Length | 7mm |
Key Features
- Constructed with brass contacts that are tin plated for high conductivity.
- Rated for a current of 3 A suitable for low power PCB applications.
- Features 10 contacts arranged in two rows with a 2.54 mm pitch for standard compatibility.
- Through-hole mounting type provides strong mechanical bonding on PCBs.
- Male contact gender with pin lengths of 3 mm tail and 7 mm mating.
- Unshrouded design allows easy access for prototyping and revision.
- Heat-resistant thermoplastic body withstands soldering and reflow processes.
- Ideal for electronics manufacturing, industrial, and laboratory equipment assembly.
Product Description
RS PRO 251-8143 Straight Through Hole Pin Header is an electrical connector designed for bridging printed circuit boards (PCBs) to enable signal and current transmission. Featuring 10 contacts arranged in 2 rows with a 2.54 mm pitch, this unshrouded pin header provides a versatile, straightforward solution for board-to-board or board-to-wire setups.
The connector's straight orientation and through-hole mounting technology ensure a durable mechanical bond that keeps components firmly secured. Manufactured using heat-resistant thermoplastic material, it can withstand soldering and reflow processes without damage, making it highly reliable during assembly.
Its brass contact material plated with tin ensures superior electrical conductivity, while the 3 A current rating supports typical low power applications. Pins have a tail length of 3 mm and a mating length of 7 mm, optimized for secure solder connections and contact engagement.
This unshrouded design is especially useful for prototyping environments where quick modifications and testing are needed. The connector suits various industries including industrial machinery, laboratory instruments, electronics manufacturing, and HVAC control systems.
Constructed with brass contacts that are tin plated for high conductivity. Rated for a current of 3 A suitable for low power PCB applications. Features 10 contacts arranged in two rows with a 2.54 mm pitch for standard compatibility.
Through-hole mounting type provides strong mechanical bonding on PCBs. Male contact gender with pin lengths of 3 mm tail and 7 mm mating. Unshrouded design allows easy access for prototyping and revision. Heat-resistant thermoplastic body withstands soldering and reflow processes.
Ideal for electronics manufacturing, industrial, and laboratory equipment assembly. Manufactured in Taiwan, Province Of China to strict quality standards.
This RS PRO pin header is a reliable electrical connector choice for professionals requiring consistent performance and ease of use in PCB assembly. Explore more from EnvMart's comprehensive range of PCB Headers and connectors to find components suited for your specific technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3 A, making it suitable for low power PCB applications.
It features 10 contacts arranged in two rows with a pitch of 2.54 mm, which is standard for many PCB applications.
This unit utilizes through-hole mounting, providing strong mechanical bonding on printed circuit boards.
The contacts are made of brass and plated with tin for high conductivity, while the body is constructed from heat-resistant thermoplastic.
The tail pin length is 3 mm, and the mating pin length is 7 mm, optimized for secure solder connections.
Yes, the unshrouded design allows easy access for prototyping and revision, making it ideal for testing environments.
This model features male contact gender, which is standard for many PCB connections.
It is manufactured in Taiwan, Province Of China, adhering to strict quality standards.
It is suitable for various industries, including electronics manufacturing, industrial machinery, laboratory instruments, and HVAC control systems.
The termination type for this model is solder, which is common for secure electrical connections on PCBs.
The straight orientation facilitates straightforward connections between boards or wires, ensuring ease of installation.
The unshrouded design allows for easy access to the pins, which is particularly useful during prototyping and testing phases.
