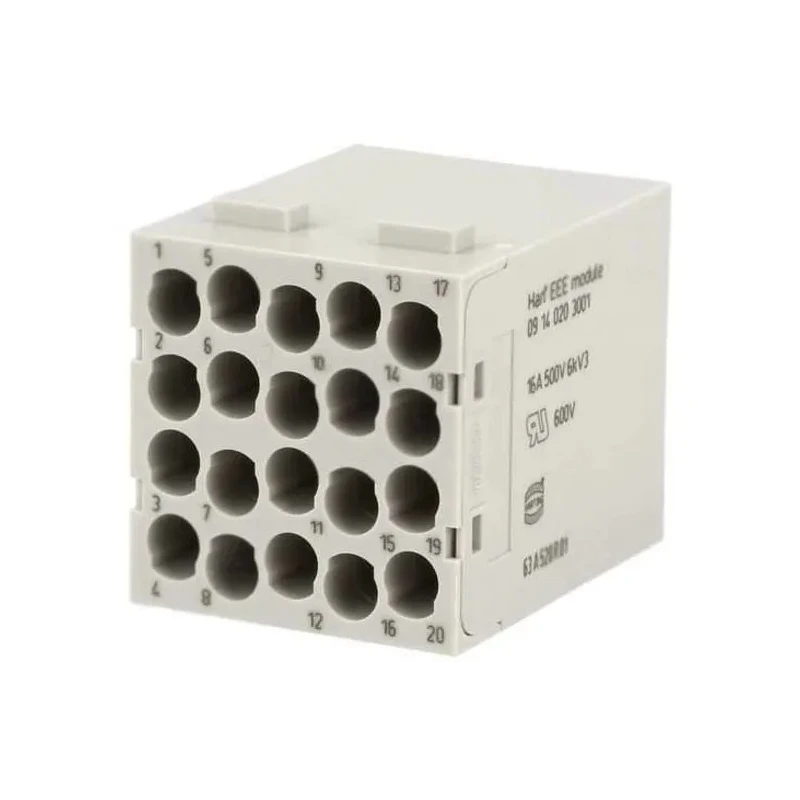

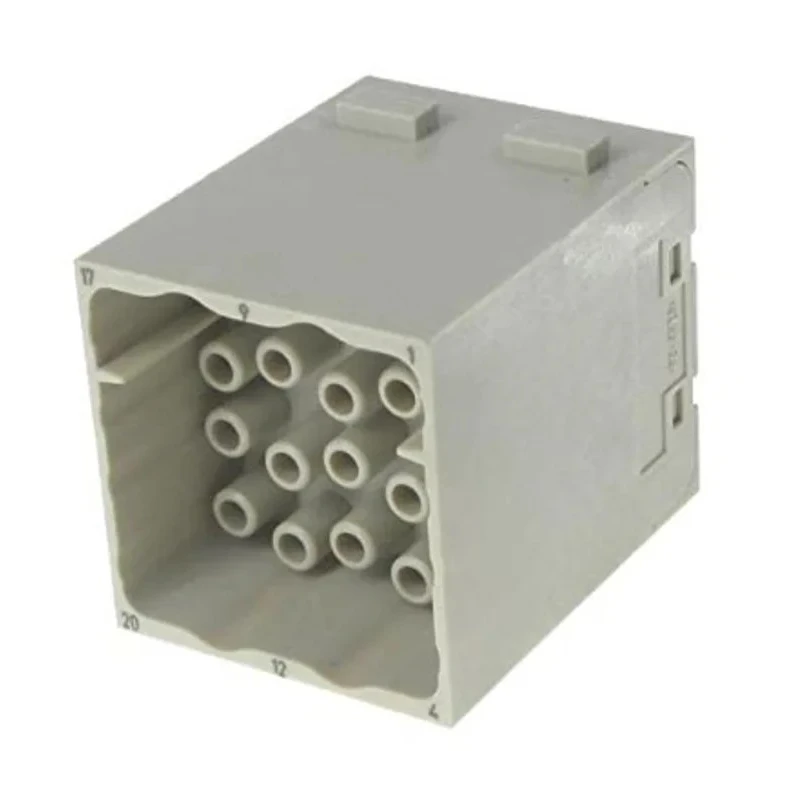

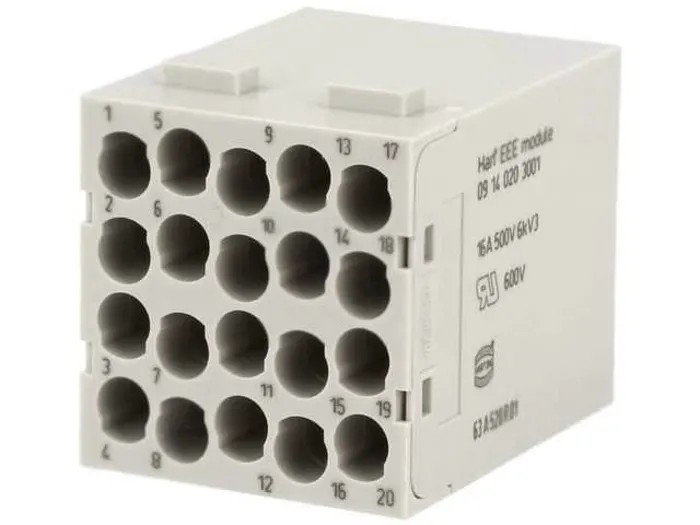

HARTING Heavy Duty Power Connector Module 16A, HAN Modular Series Male, 20 Contacts 09140203001

HARTING 09140203001 Heavy Duty Power Connector Module is designed for industrial and electronic component applications requiring robust and reliable power connections. This HAN Modular Series Male module features a current rating of 16A and voltage rating of 500V, supporting a wide range of heavy-duty power connector uses.

The connector module contains 20 contacts arranged in four rows with a pole format accommodating various wiring configurations. Contacts utilize polycarbonate material, providing high electrical insulation and mechanical stability. It supports cable mount type installation with straight orientation, making it suitable for durable harness assembly.

This module supports wire sizes between 0.14mm² and 4mm², enabling compatibility with a diverse set of conductor dimensions. The crimp connection design ensures a secure and reliable termination, contributing to long-lasting performance in tough industrial environments. The electrical characteristics adhere to DIN EN 61 984 standards, with a mating cycle rated at 500, ensuring durability under repeated connections.

The Han EEE module fits into the HAN Modular system, a versatile platform allowing custom configurations by combining insert modules within standard housings. This system is ideal for signal, power, and pneumatic line applications where tailored connector assemblies are needed. It provides flexibility and modularity in industrial, manufacturing, and laboratory electrical installations.

Manufactured in Germany, this HARTING module assures high-quality production standards and reliability. It is widely used across industrial automation, electrical assembly, construction, and commercial equipment sectors requiring dependable power connectors.

Rated current of 16A suitable for heavy duty industrial applications. Features 20 contacts arranged in 4 rows with a pole format of 20. Voltage rating of 500V ensures reliable power transmission. Construction with polycarbonate contacts for durability and insulation.

Supports wire sizes from 0.14mm² to 4mm² for versatile wiring options. Crimp connection design enables a secure and reliable termination. Compatible with HAN Modular Series standard housings for flexible configurations. Mating cycle rated at 500 for durability under repeated use.

Designed for cable mount type with straight orientation male connector. Manufactured in Germany ensuring consistent product quality. Explore more heavy duty connectors and related industrial components in the Electronics & Electricals category at EnvMart for dependable and high-quality solutions.
