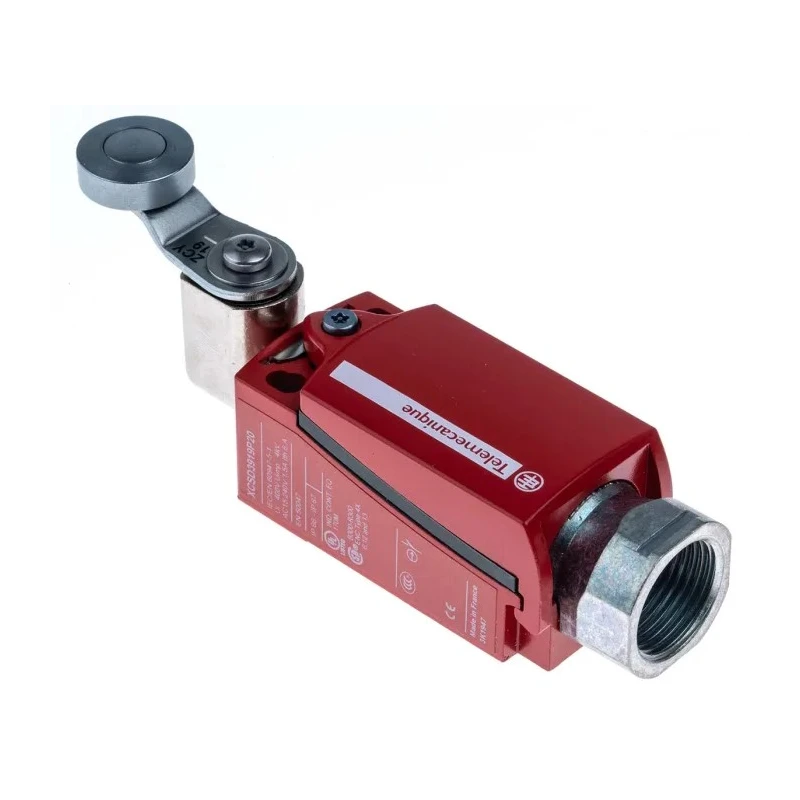

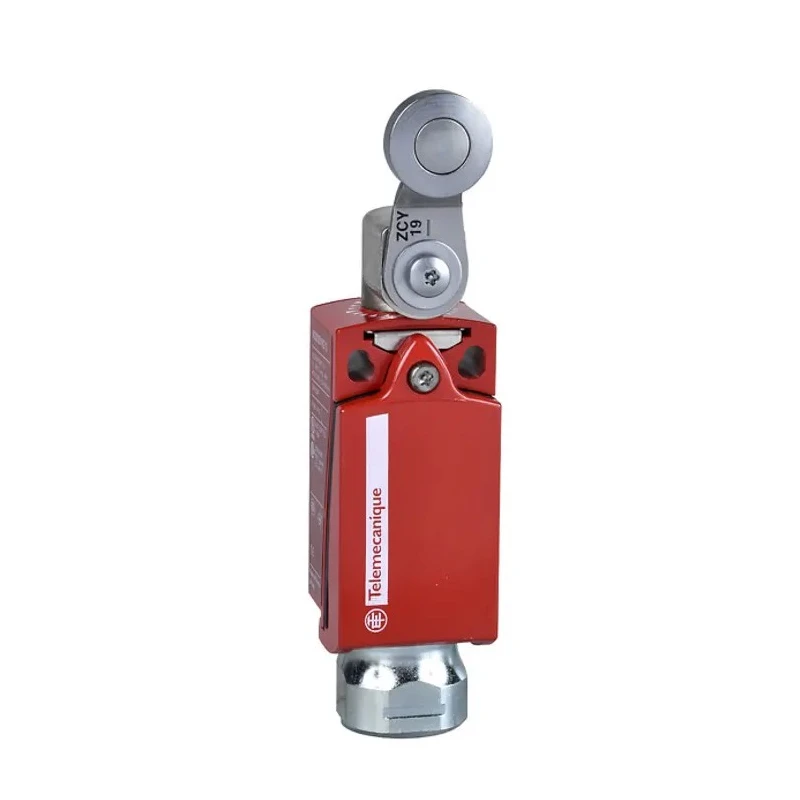

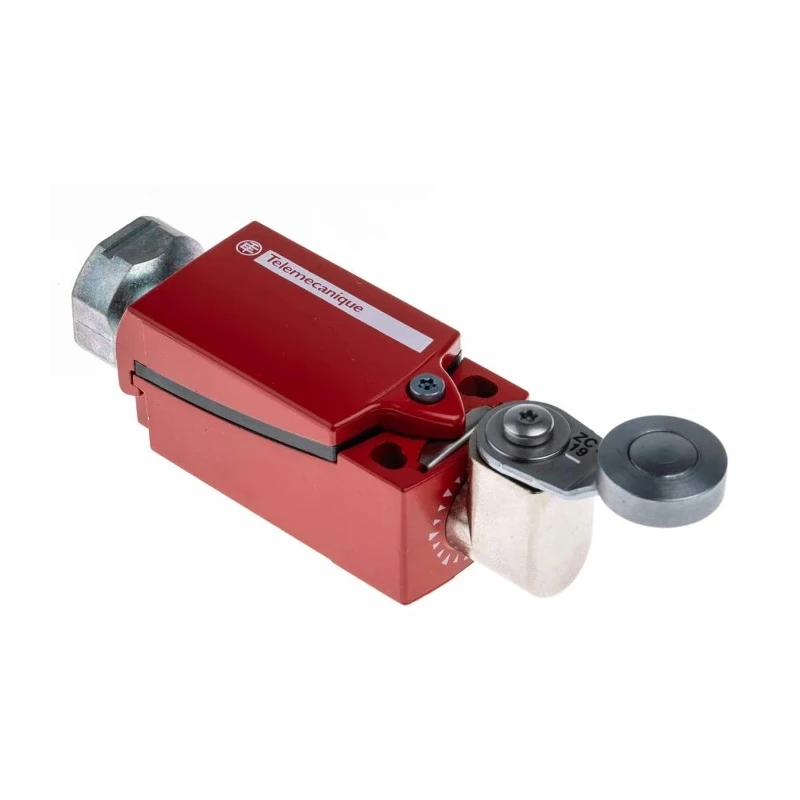

Telemecanique Sensors XCS Series Rotary Safety Limit Switch, 1 NO/2 NC, IP66, IP67, Plastic Housing, 240V ac XCSD3919P20

Telemecanique Sensors XCSD3919P20 rotary safety limit switch is a reliable industrial-grade device designed to monitor position and interrupt control circuits in automation and safety applications. This switch features a rotary actuator housed in a robust plastic enclosure with IP66 and IP67 ingress protection, making it suitable for harsh environments involving dust and water exposure.

It offers a contact configuration of one normally open and two normally closed snap action contacts, enabling versatile switching capabilities with a switching current rating of 1.5A at 240V AC and up to 250V DC. The low actuation force of 0.25 mN reduces mechanical wear, and its mechanical endurance of 10 million operating cycles guarantees durability for long service intervals.

The device includes an M20 x 1.5 conduit entry to simplify the installation of cable glands, ensuring secure and sealed cable connections. The compact dimensions of 34mm width, 35mm depth, and 122mm length facilitate easy integration within control panels or machine mounts.

This rotary safety limit switch is compliant with international standards including CE, CSA, EN, IEC, RoHS, and UL, reflecting its adherence to strict quality and safety requirements. It operates reliably within a temperature range of -25°C to 70°C, making it suitable for a wide range of industrial applications such as automated cells, conveyor end detection, and machine safety interlocks.

Designed with rotary actuator type for precise mechanical signaling. Durable plastic housing provides ingress protection rated IP66 and IP67 for dust and water resistance. Contact configuration includes one normally open and two normally closed snap action contacts.

Rated to switch 240V AC or 250V DC with a low actuation force of 0.25 mN. Supports M20 x 1.5 conduit entry facilitating secure cable connections. Mechanical life expectancy of 10 million cycles ensures long-term reliability.

Operates in ambient temperatures from -25°C to 70°C for industrial use. Complies with CE, CSA, EN, IEC, RoHS, and UL standards for safety and quality. Compact dimensions suitable for tight panel or actuator mounting.

This product is ideal for industrial, manufacturing, automation, and safety applications where reliable positional feedback and circuit interruption are critical. Browse our Limit Switch category for additional industrial control components and safety devices from Telemecanique Sensors and other trusted brands.
