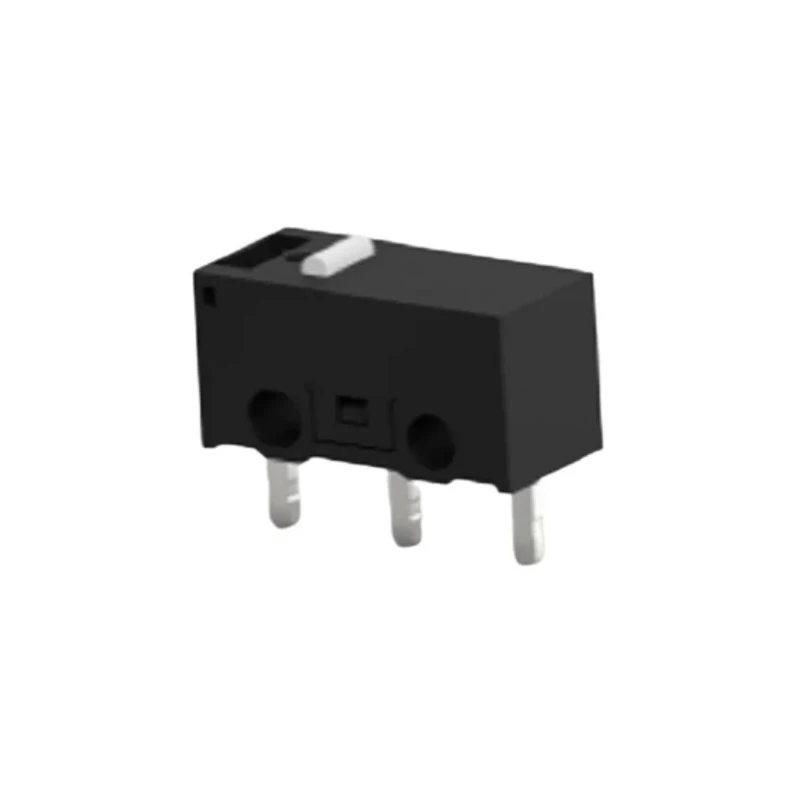

TE Connectivity Pin Plunger Snap Action Micro Switch, PCB Terminal, 0.1A, SPDT SAJ101XPP0N74SDTPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XPP0N74SDTPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- This switch supports a contact current of 0.1A suitable for low power operations.
- Featuring a SPDT contact configuration for versatile switching functions.
- The miniature micro switch type conforms with UL standards for safety.
- Operating force is low at 0.75N enabling precise actuation.
- Designed to operate reliably between -25°C and 75°C temperature range.
- Mechanical life expectancy of up to 1,000,000 cycles ensures durability.
- PCB terminal type offers high resistance to flux making it ideal for PCB mounting.
- Compliant with RoHS standards ensuring environmentally safe materials.
Product Description
TE Connectivity SAJ101XPP0N74SDTPTQ pin plunger snap action micro switch with PCB terminal provides precise and reliable mechanical to electrical signal conversion. It is engineered for miniature applications requiring a durable switch with consistent performance over extensive cycling.
Featuring a small form factor, this micro switch is ideal for use in home appliances, consumer electronics, factory automation, and various industrial controls. The snap action design ensures fast switching response and stable contact.
The switch supports a contact current of 0.1A with SPDT (Single Pole Double Throw) contact configuration, allowing flexible circuit design. The PCB terminal type facilitates easy and reliable mounting on printed circuit boards and exhibits excellent flux resistance.
It operates with a low force of 0.75N for easy actuation and works reliably over a temperature range from -25°C up to 75°C, suitable for diverse environmental conditions.
Manufactured in series SAJ1, it conforms to RoHS standards ensuring compliance with hazardous material regulations. Its mechanical longevity of 1,000,000 cycles meets rigorous industrial demands.
This miniature micro switch supports low current switching applications. The pin plunger actuator type offers consistent and repeatable actuation. Designed with PCB terminals that resist flux corrosion for reliable circuit connections.
Its SPDT contact configuration supports multiple circuit switching scenarios. The low operating force reduces actuator wear and energy consumption. Suitable for use in home appliances, factory automation, and industrial electronics.
Conforms to international RoHS environmental standards. Designed for high durability with a mechanical life of one million cycles. Manufactured in China ensuring quality control and cost efficiency.
This product is part of the comprehensive TE Connectivity Micro Switch range listed in EnvMart’s Electronics & Electricals category. For users requiring dependable snap action switches with miniature designs, explore further options or complementary accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this micro switch is 75°C.
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching functions.
The mechanical life expectancy of this switch is up to 1,000,000 cycles, ensuring long-term reliability.
The operating force required to actuate this switch is low at 0.75N, facilitating easy actuation.
The switch supports a contact current rating of 0.1A, suitable for low power operations.
This model operates reliably within a temperature range of -25°C to 75°C.
It uses a pin plunger actuator type, which provides consistent and repeatable actuation.
This switch features PCB terminals, which offer high resistance to flux, making it ideal for PCB mounting.
Yes, it conforms to RoHS standards, ensuring compliance with hazardous material regulations.
This model is suitable for applications in home appliances, consumer electronics, factory automation, and various industrial controls.
The country of origin for this micro switch is China.
This micro switch is part of the SAJ1 series from TE Connectivity.
