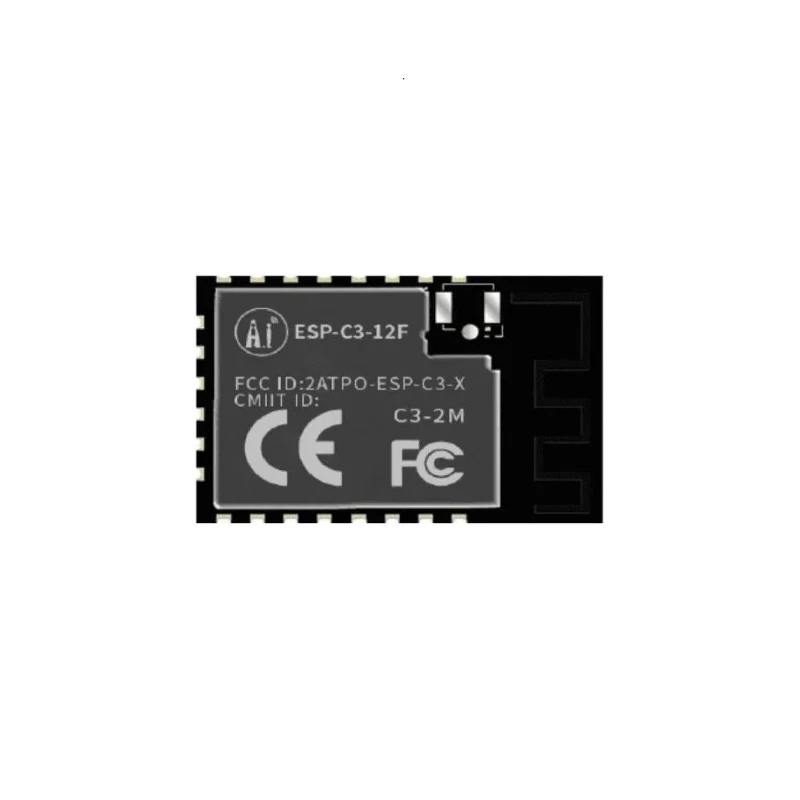

RF Solutions WiFi Module 3.6V DC, 2400MHz, Multiple Interfaces ESP32-C3-12F

RF Solutions ESP32-C3-12F is a high-performance WiFi module operating at 3.6V DC with a frequency of 2400MHz, designed for modern communication applications in IoT, smart home devices, wearable electronics, and mobile platforms. It features a 32-bit RISC-V single-core processor running at up to 160 MHz, enabling efficient processing for a broad range of tasks without additional microcontrollers.

This module supports Wi-Fi IEEE 802.11b/g/n protocols in 1T1R mode with data rates up to 150Mbps, along with Bluetooth Low Energy 5.0, allowing dual wireless connectivity options. The ESP32-C3 integrates multiple interfaces including ADC, GPIO, I2C, SPI, UART, and PWM signals which facilitate easy integration with sensors and other peripherals.

The module's small SMD-22 form factor (24mm x 16mm x 3.1mm) suits compact device designs. It supports multiple sleep modes with ultra-low deep sleep current below 5µA, optimizing battery life for portable applications. Its security standards include AES and WEP, ensuring robust wireless transmission security.

Further flexibility comes from support for STA/AP/STA+AP Wi-Fi modes and Mix mode, enabling use cases such as device access points or station mode connectivity. Additional convenience is provided by features like Smart Config and AirKiss for one-click network configuration on Android and iOS platforms.

The module supports firmware upgrades via UART port locally or through remote Firmware Over The Air (FOTA) updates, simplifying device management. RF Solutions ESP32-C3-12F is RoHS compliant and built to meet industry standards, with a recommended minimum supply voltage of 3V and maximum of 3.6V DC, suitable for reliable operation under various environmental conditions from -40°C upwards.

Due to its versatile capabilities and compact size, this module is ideal for industrial, commercial, and laboratory uses including IoT gateways, smart appliances, and wireless sensor networks.

Supports Wi-Fi IEEE 802.11b/g/n with 150Mbps data rate. Includes Bluetooth 5.0 for dual wireless communication. Equipped with 32-bit RISC-V processor at up to 160 MHz. Multiple peripheral interfaces including ADC, GPIO, I2C, SPI, and UART.

Energy efficient with deep sleep current below 5µA. Security standards AES and WEP ensure secure data transmission. Compact SMD-22 package: 24mm x 16mm x 3.1mm dimensions. Supports easy network configuration for Android and IOS devices.

Firmware upgrades supported locally and over-the-air (FOTA). RoHS compliant and manufactured in China. Explore EnvMart’s comprehensive range of communication and Wi-Fi Modules for your industrial or commercial requirements.
