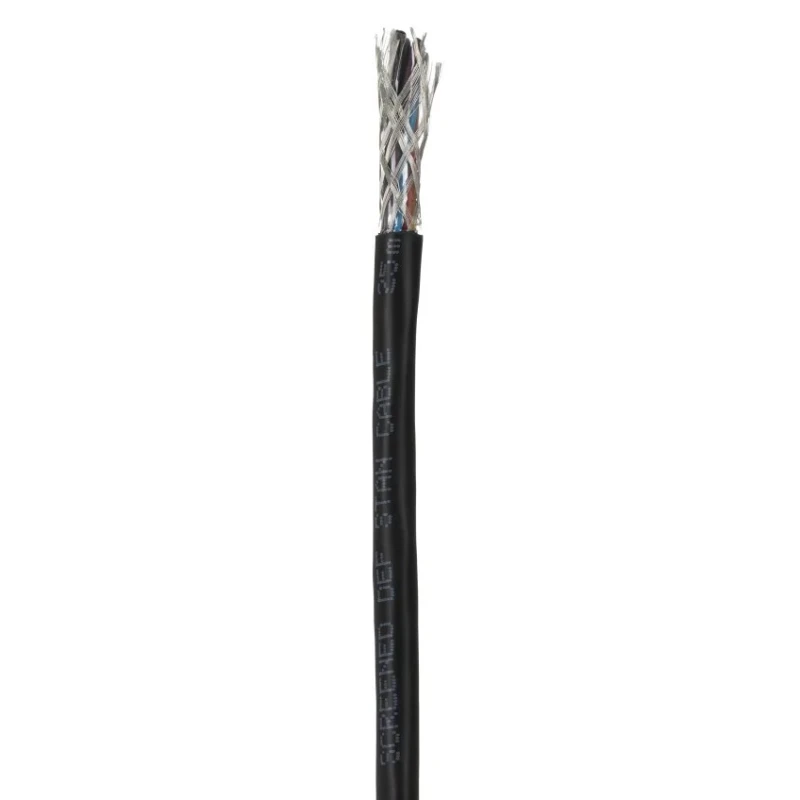

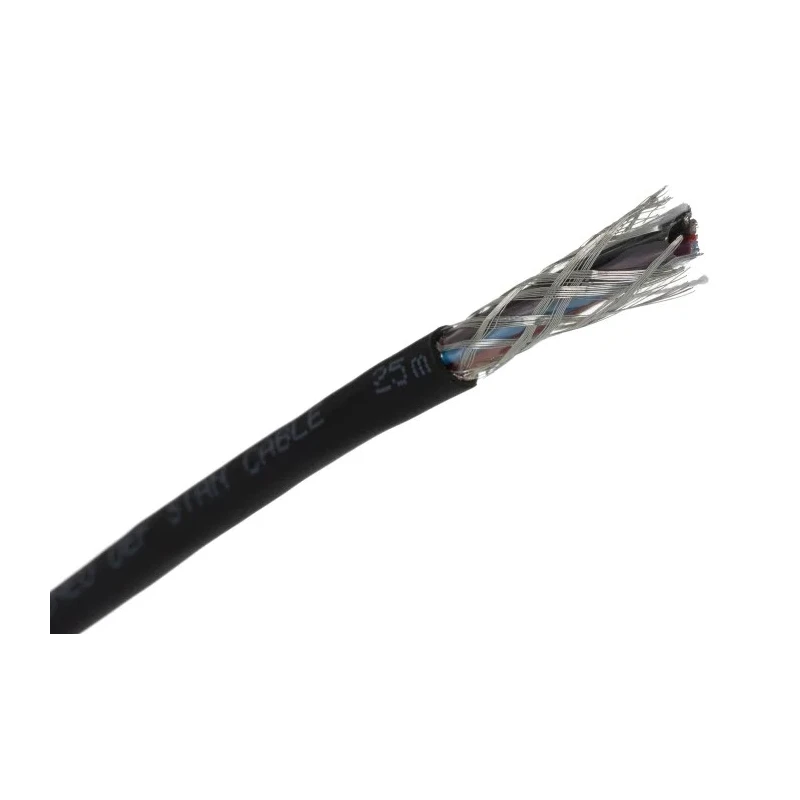

RS PRO DEF STAN Multi-Core Industrial Cable 6 Cores 0.22mm² Screened 100m Black Polyvinyl Chloride Sheath 236-9268
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| Operating Temperature | -15 °C to +85 °C |
| Model | 236-9268 |
| Cable Length | 100m |
| Series | DEF STAN |
| Outside diameter | 11mm |
| Maximum Operating Temperature | 120°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Conductor | 7/0.2 mm tinned copper (nominal construction) |
| Standards/Approvals | RoHS |
| Jacket Colour | Black |
| Screened/Unscreened | Screened |
| Conductor Type | Solid |
| Cable CSA | 0.22mm² |
| Conductor Resistance | 92 Ω/km |
| Braid Shield | Tinned copper, 0.1mm, 91% coverage |
| 4 cores - RS stock no | 236-9263 |
| 6 cores - RS stock no | 236-9269 |
| 8 cores - RS stock no | 236-9274 |
| 12 cores - RS stock no | 236-9248 |
| 20 cores - RS stock no | 236-9253 |
| 36 cores - RS stock no | 236-9258 |
| RS PRO Control Cable, 6 Cores, 0.22 mm², Screened, 100m, Black PVC SheathBrand | RS PRO |
Key Features
- This cable includes 6 tinned copper conductor cores for reliable conductivity.
- The black polyvinyl chloride jacket provides robust insulation and mechanical protection.
- It is screened with a tinned copper braid of 0.1 mm thickness and 91% coverage to reduce electromagnetic interference.
- The cable has an outside diameter of 11 mm and a voltage rating of 250 V.
- Operating temperature ranges from -15 °C to +85 °C, suitable for varied industrial environments.
- It meets Defence Standard 61-12 Part 4 and RoHS compliance standards.
- Ideal for industrial applications such as machine control, conveyors, audio equipment, data networking, and harsh environments.
- Specified conductor resistance is 92 Ω/km, with solid conductor type and 7/0.2 mm nominal tinned copper construction.
Product Description
RS PRO 236-9268 multi-core industrial cable is a high-quality, screened cable with 6 cores, each having a 0.22 mm² cross-sectional area and constructed with 7/0.2 mm tinned copper conductors. The black polyvinyl chloride (PVC) sheath offers excellent protection and durability against physical and environmental stress.
This cable features a tinned copper braid shield of 0.1 mm thickness with 91% coverage, effectively reducing electromagnetic interference to maintain signal integrity in industrial settings.
Designed according to Defence Standard 61-12 Part 4 and RoHS compliant, this cable withstands operating temperatures from -15°C to +85°C, allowing it to function reliably in a wide range of industrial applications.
The 11 mm outside diameter facilitates ease of installation in confined spaces while maintaining robust insulation rated for 250 V operation. This cable is non-armoured but screened, optimizing flexibility and protection.
Typical industrial and commercial uses include machine control systems, conveyor connections, audio and data networking equipment, and deployment in harsh industrial or marine environments where reliable signal and power transmission is critical.
This cable contains 6 cores of 0.22 mm² tinned copper conductors for efficient electrical performance. The sturdy black PVC sheath provides electrical insulation and mechanical protection suitable for industrial conditions.
Screening with tinned copper braid enhances noise immunity and signal quality. It complies with Defence Standard 61-12 Part 4 and RoHS, ensuring safety and environmental standards. Rated voltage is 250 V with an operating temperature range of -15 °C to +85 °C.

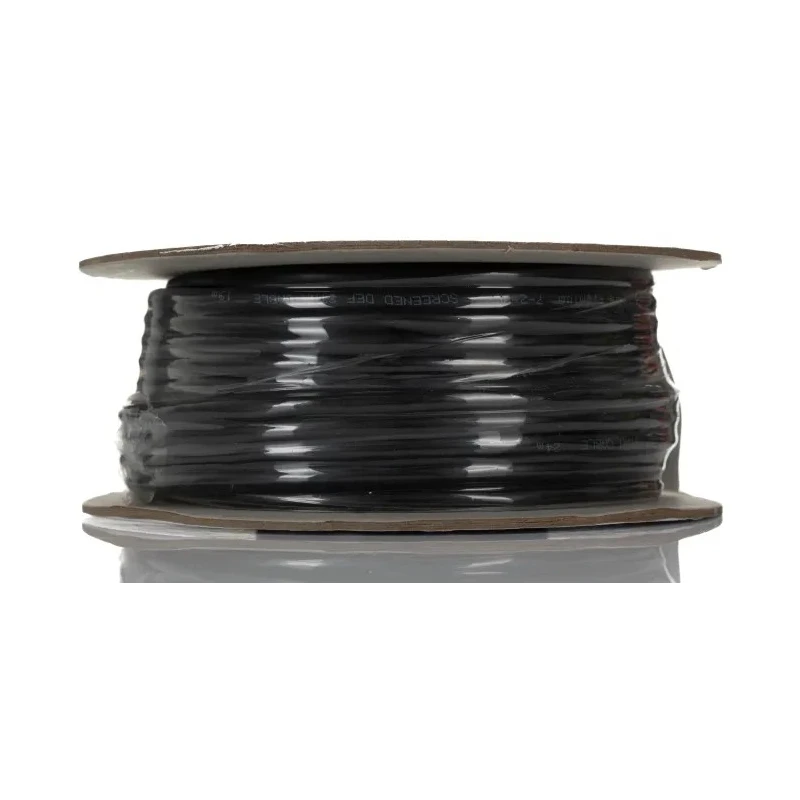

Conductor resistance is 92 Ω/km, supporting consistent conductivity over length. Sold as a 100 m length roll, ideal for large installations or splicing. Its compact 11 mm diameter assists in space-saving cable management.
Specifically designed for installations requiring screened cables in control, instrumentation, and marine applications. Manufactured in China under RS PRO quality standards. Explore our full range of RS PRO Multi-Core Industrial Cables, available in various core counts and lengths to match your industrial installation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this cable is 250 V.
It operates within a temperature range of -15 °C to +85 °C.
This cable has 6 cores, each with a cross-sectional area of 0.22 mm².
The conductors are made of tinned copper wire, specifically constructed as 7/0.2 mm.
The outside diameter of this model is 11 mm.
It is screened with a tinned copper braid of 0.1 mm thickness and 91% coverage to reduce electromagnetic interference.
Yes, it meets Defence Standard 61-12 Part 4 and is RoHS compliant.
The specified conductor resistance is 92 Ω/km.
This cable is ideal for industrial applications such as machine control, conveyors, audio equipment, and data networking.
The cable is sold in a 100 m length roll.
The jacket material is polyvinyl chloride (PVC).
The minimum operating temperature is -40 °C, while the maximum is 120 °C.
