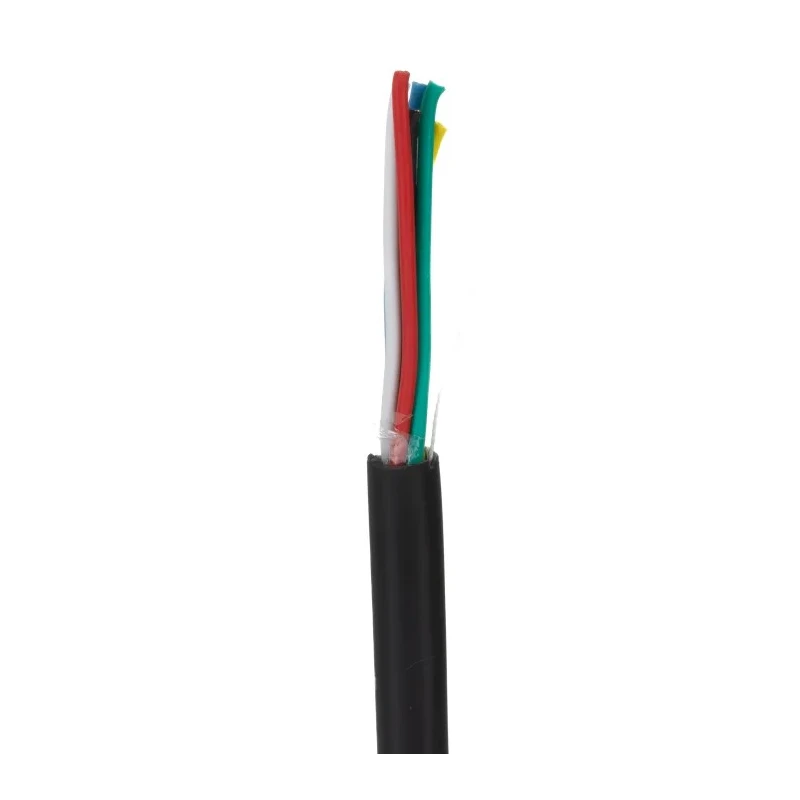

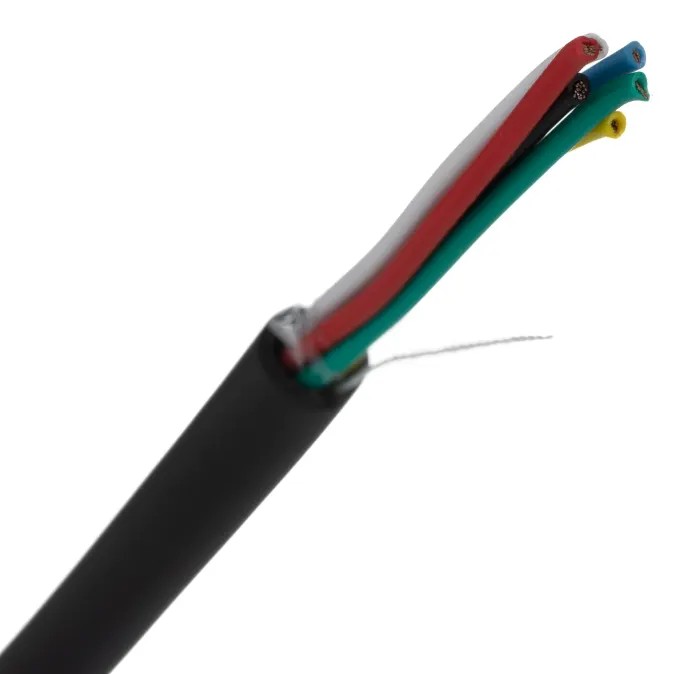

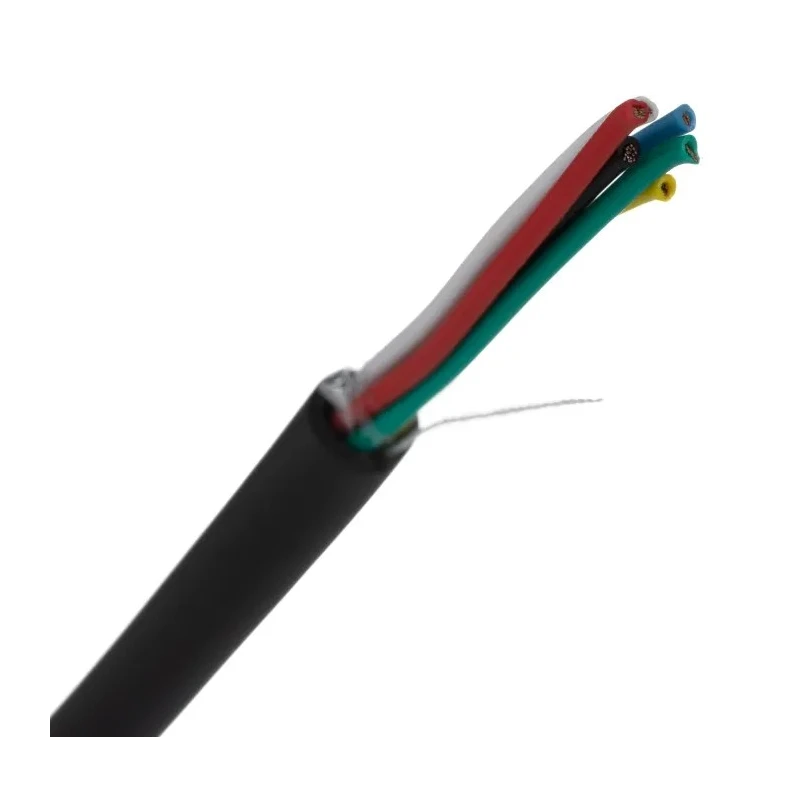

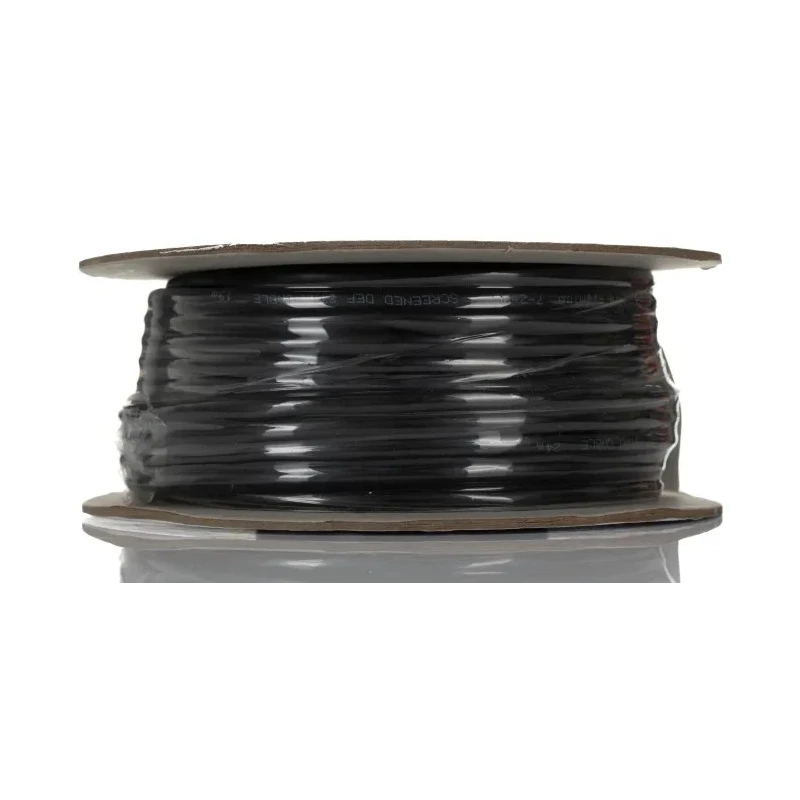

RS PRO DEF STAN Multi-Core Industrial Cable 6 Cores 0.22mm² Screened Armoured Black PVC Sheath 25 m 236-9269
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Operating Temperature | -15 °C to +85 °C |
| Model | 236-9269 |
| Cable Length | 25m |
| Series | DEF STAN |
| Outside diameter | 11mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Polyvinyl Chloride |
| Conductor | 7/0.2 mm tinned copper (nominal construction) |
| Standards/Approvals | EN, CE, EAC |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 0.22mm² |
| Conductor Resistance | 92 Ω/km |
| Braid Shield | Tinned copper, 0.1mm, 91% coverage |
| 4 cores - RS stock no | 236-9263 |
| 6 cores - RS stock no | 236-9269 |
| 8 cores - RS stock no | 236-9274 |
| 12 cores - RS stock no | 236-9248 |
| 20 cores - RS stock no | 236-9253 |
| 36 cores - RS stock no | 236-9258 |
| RS PRO Control Cable, 6 Cores, 0.22 mm², Screened, 25m, Black PVC SheathBrand | RS PRO |
Key Features
- Constructed with 7/0.2 mm tinned copper stranded conductor for high conductivity.
- Features a screened PVC sheath to reduce electromagnetic interference.
- Rated for 440 V voltage with flame retardant behavior to ensure safety.
- Operating temperature range from -15°C to +85°C suitable for harsh environments.
- Armoured design for enhanced mechanical protection.
- Outside diameter measures 11 mm for compact installation.
- Complies with Defence Standard 61-12 Part 4 and certifications EN, CE, EAC.
- Ideal for military, marine, machine control, conveyors, audio, data networking, and industrial environments.
Product Description
RS PRO 236-9269 Multi-Core Industrial Cable is a high-quality, screened, armoured cable with 6 cores and a cross-sectional area of 0.22 mm², encased in a durable black polyvinyl chloride sheath. With a length of 25 meters and a compact outside diameter of 11 mm, it is specifically designed for industrial electrical installations requiring reliable performance and EMI protection.
The cable consists of stranded 7/0.2 mm tinned copper conductors that ensure excellent conductivity and flexibility. The screened PVC sheath reduces electromagnetic interference, making it suitable for sensitive control and data transmission applications. It is rated for operation at voltages up to 440 V and can withstand temperatures ranging from -15°C to +85°C, accommodating various industrial and harsh environmental conditions.
This armoured cable is constructed according to Defence Standard 61-12 Part 4 and holds certifications including EN, CE, and EAC, assuring compliance with stringent quality and safety standards. The flame retardant fire behavior extends safety in critical applications.
Typical applications for this RS PRO cable include military and marine industries, machine control equipment, conveyors, audio systems, data networking, and other harsh industrial environments requiring robust and shielded cabling solutions. The braid shield features tinned copper wire with 91% coverage, enhancing protection against noise and interference. The core colors are standardized for easy identification and installation.
7/0.2 mm tinned copper stranded conductor provides reliable electrical transmission. Screened PVC sheath prevents electromagnetic interference. Armoured protection ensures durability in demanding environments. Flame retardant construction enhances safety during operation.
Complies with Defence Standard 61-12 Part 4 and multiple regional certifications. Operating temperature range supports diverse industrial settings. Compact 11 mm diameter allows installation in confined spaces. Suitable for critical industrial, military, and marine uses.
Explore additional RS PRO industrial cables and related electrical wiring products on EnvMart for your professional application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for operation at voltages up to 440 V.
The operating temperature range is from -15°C to +85°C.
The conductors are made of 7/0.2 mm tinned copper stranded wire, which provides high conductivity and flexibility.
This model features 6 cores.
The outside diameter measures 11 mm, allowing for compact installation.
It has a screened PVC sheath that reduces electromagnetic interference, making it suitable for sensitive applications.
Yes, it is designed to withstand harsh environments, accommodating temperatures from -15°C to +85°C and featuring an armoured design for mechanical protection.
It complies with Defence Standard 61-12 Part 4 and holds certifications including EN, CE, and EAC.
The cable length is 25 meters.
Typical applications include military, marine, machine control, conveyors, audio systems, and data networking in industrial environments.
The cable has a flame retardant construction, enhancing safety during operation in critical applications.
The conductor resistance is 92 Ω/km.
