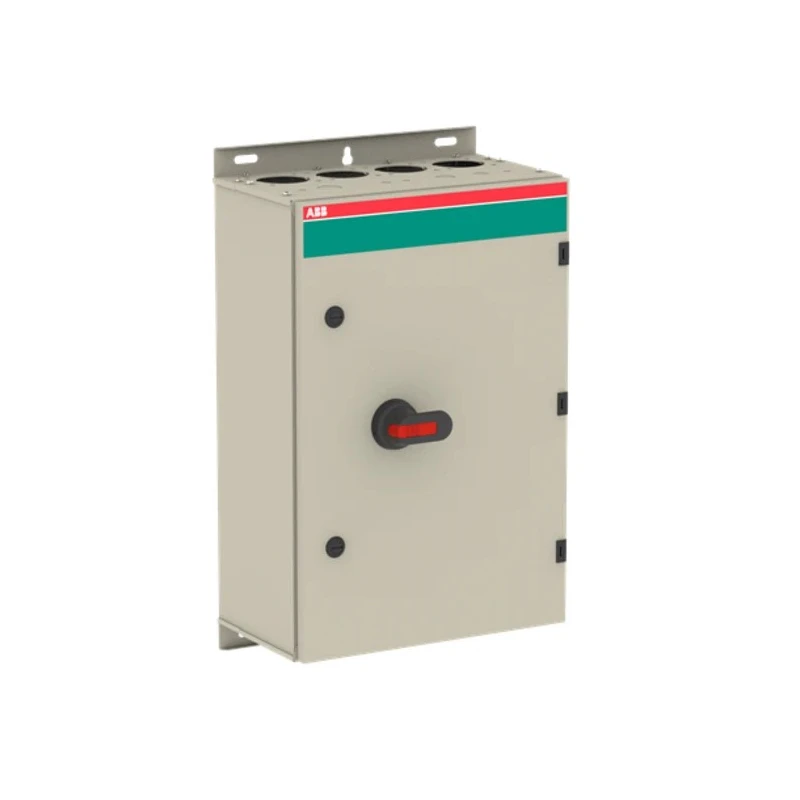

ABB 4-Pole Screw Mount Switch Disconnector IP65 Rated OT Series 0A

Free Delivery in India | Lowest Global Shipping Charges

ABB 4-Pole Screw Mount Switch Disconnector IP65 Rated OT Series 0A



Category Switch Disconnector Brand ABB Condition New

Specifications

Country of Origin	Finland
Brand	ABB
Length	230mm
Model	IP65
Depth	230mm
IP Rating	IP65
Width	400mm
Mount Type	Screw
Series	OT
Minimum Operating Temperature	0°C
Switching Current	0A
Terminal type	Screw Clamp
Handle Colour	Black
Number of Poles	4
Standards/Approvals	RoHS

Key Features

The enclosure is made of galvanised steel with a polyester coating for excellent outdoor durability.
Provides protection against UV light and ingress with IP65 rating.
Includes an inbuilt gas pressure relief function to safeguard users against internal arc hazards.
The door is earthed via hinges and supports padlock locking for up to 3 padlocks.
Supports single and parallel cable entry with configurations including blank, ring-flange, or C-flange types.
Features a black handle with an interlocked cover and optional bypass for thermographing.
Has 4 poles and auxiliary contacts available with a maximum of 2NO, 2NC.
Rated operational voltage is 1000V with OT series classification.

Product Description

ABB 1SCA022461R5410 4-Pole Screw Mount Switch Disconnector is engineered for robust electrical isolation in industrial and commercial installations. Featuring a galvanised steel enclosure with polyester coating, it is optimized for outdoor usage with excellent resistance to UV light and ingress protection rated at IP65. The product complies with RoHS standards and is manufactured in Finland.

This switch disconnector comes with a built-in gas pressure relief mechanism designed to protect users from internal arc events during operation, enhancing workplace safety. The door is earthed via resilient hinges and equipped with a black handle that supports interlocking and padlocking with up to three padlocks for secure usage.

The enclosure accommodates multiple cable entry types, allowing for flexible installation with options such as blank, ring-flange, or C-flange (FL21), supporting different cable configurations like top/bottom or bottom/bottom entries. This adaptability simplifies integration into existing electrical systems.

The OT series switch disconnector is rated for 0A switching current and an operational voltage of up to 1000V. It includes four poles and supports auxiliary contacts with a maximum configuration of 2 normally open (NO) and 2 normally closed (NC), enabling customizable control signaling.

Terminal connections are made via screw clamps, ensuring reliable and secure electrical contacts. The dimensions of the enclosure - 400mm width, 230mm length, and 230mm depth - provide a compact footprint suitable for various installation spaces.

The enclosure’s galvanised steel and polyester coating make it highly durable for outdoor applications. IP65 protection rating ensures dust tightness and water resistance. Gas pressure relief function enhances operator safety by venting internal arcs.

Door earthing and padlockable handle increase operational safety and security. Flexible cable entry options facilitate multiple installation scenarios. Supports auxiliary contacts for extended control capabilities. Rated operational voltage of 1000V suits a wide range of electrical applications.

Compact dimensions simplify mounting in constrained spaces. Manufactured in Finland adhering to quality and compliance standards. Ideal for industrial, commercial, and electrical automation environments.

This switch disconnector is suitable for use in industries requiring reliable isolation and safety such as electrical distribution, automation control systems, HVAC, water treatment plants, manufacturing facilities, and other commercial electrical setups. It provides dependable switching performance and enhanced safety features in a rugged construction.
