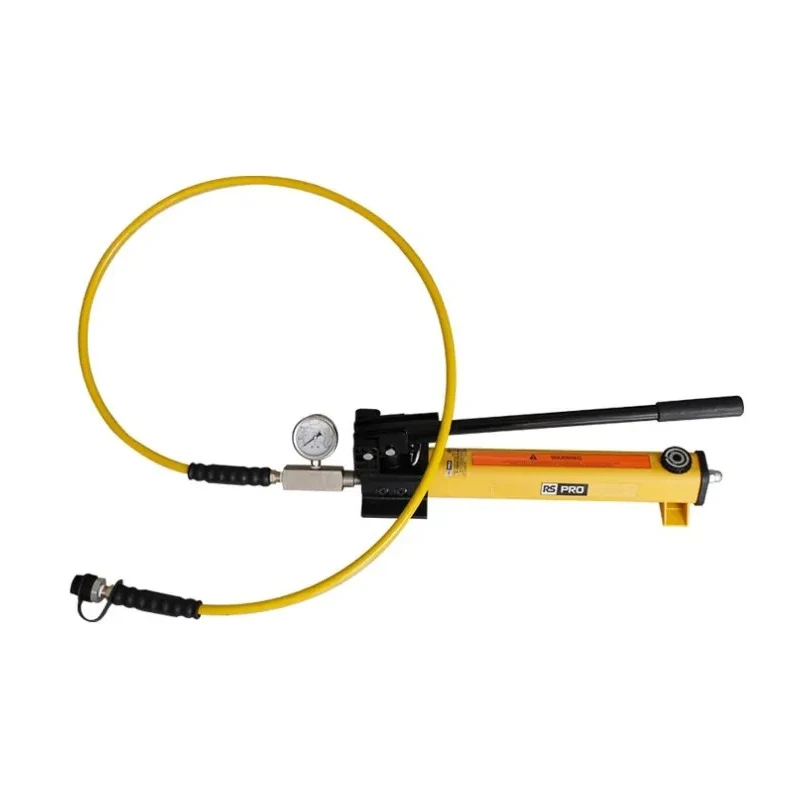

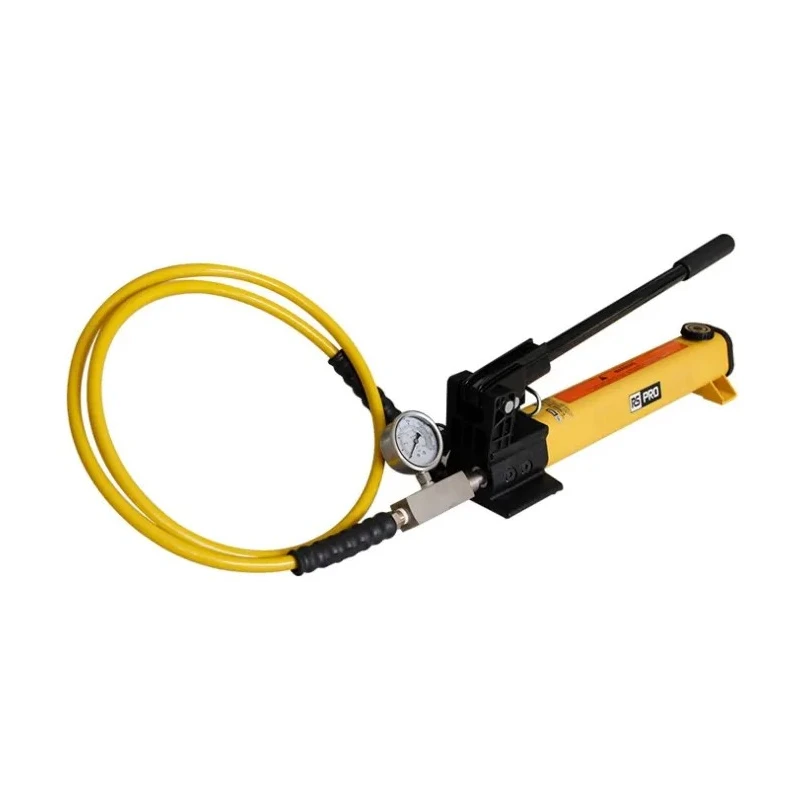

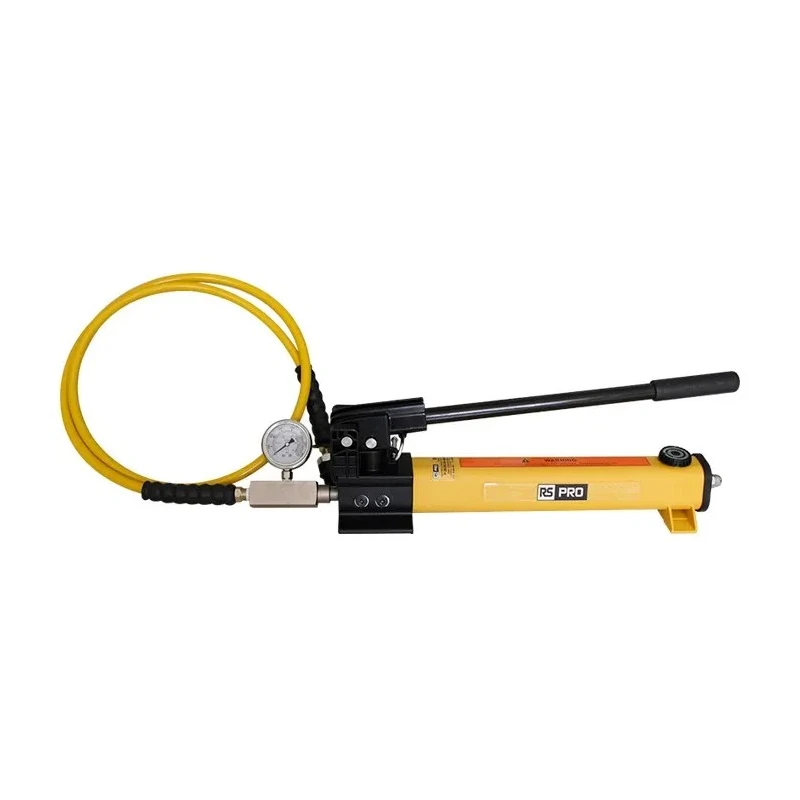

RS Pro Hydraulic Hand Pump with 0.901 L Oil Capacity, 25.4 mm Cylinder Stroke, 700 bar Maximum Operating Pressure 234-9583
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS Pro |
| Maximum Operating Pressure | 700 bar |
| Height | 157mm |
| Length | 533mm |
| Model | 234-9583 |
| Gross Weight | 4.5kg |
| Width | 127mm |
| Pump Type | Hand |
| Stroke | 156 mm |
| Oil Capacity | 226 cm³ |
| Interfaces | Landscaping |
| Pump Material | Steel |
| Outlet Type | NPT3/8 |
| Displacement Per Stroke 1st Stage | 11.26cm³ |
| Cylinder Effective Area | 14.5 cm2 |
| Usable Oil Capacity | 0.901L |
| Displacement Per Stroke 2nd Stage | 2.47cm³ |
| Maximum Handle Effort | 42.2kg |
| Cylinder Stroke | 25.4mm |
| Standards/ApprovalsEN 1494 | 2000+A1:2008, UKCA, CE, EN ISO 12100:2010 |
| 1st Stage Operating Pressure | 13bar |
| 2nd Stage Operating Pressure | 700bar |
| Maximum Cylinder Capacity | 981kN |
| EN 1494 | 2000+A1:2008, UKCA, CE, EN ISO 12100:2010 |
| Plunger Stroke | 25.4 mm |
| Plunger Type | Solid |
Key Features
- Features a durable steel construction ensuring long-lasting performance.
- Compact design with dimensions 533 mm length, 127 mm width, and 157 mm height for easy handling.
- Equipped with a two-speed operation with automatic switching to optimize efficiency.
- Includes an internal pressure relief valve preventing pump overload.
- Maximum handle effort limited to 42.2 kg to minimize operator fatigue.
- Compatible with a 10-ton single-acting hydraulic cylinder for versatile applications.
- Corrosion-resistant nylon encapsulated aluminium pump base enhances durability.
- Ideal for industrial use including bending, cutting, assembling, and dismantling tasks.
Product Description
RS Pro 234-9583 Hydraulic Hand Pump is engineered for high performance in industrial, manufacturing, and mechanical fluid power applications. This two-speed, single-acting hand pump supports a maximum operating pressure of 700 bar and features a 0.901 L oil reservoir for efficient hydraulic power delivery.
The pump incorporates an internal pressure relief valve to prevent overload conditions and a corrosion-resistant nylon encapsulated aluminium base for enhanced durability. Its compact design (533 mm length × 127 mm width × 157 mm height) paired with a lightweight steel construction weighing 4.5 kg ensures ease of use and portability.

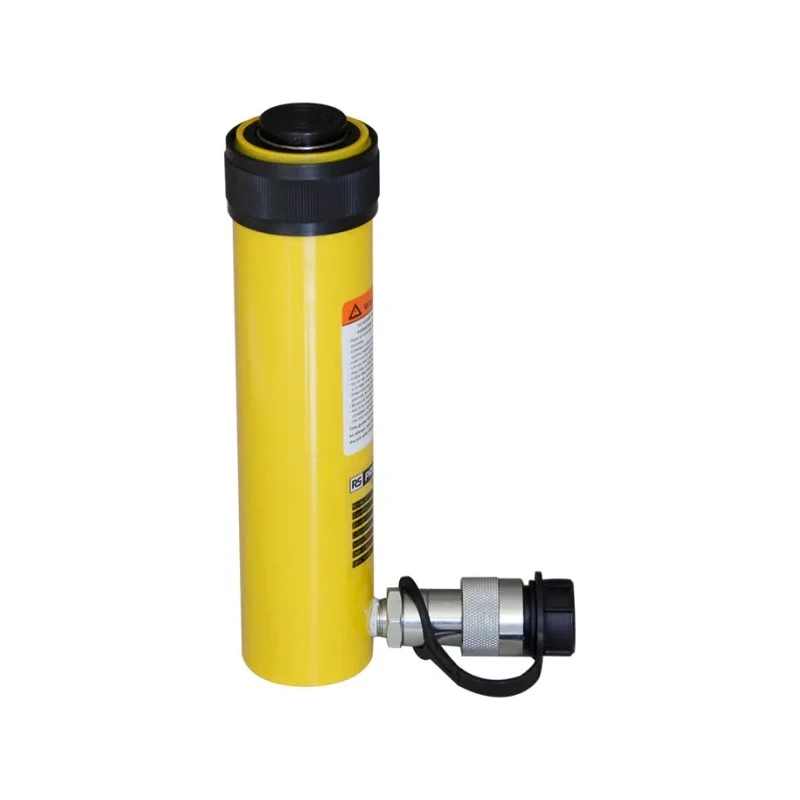

The two-speed automatic switching mechanism allows seamless modulation of pressure and flow, reducing operator effort with a maximum handle effort of 42.2 kg. This pump is suitable for coupling with a 10-ton single-acting hydraulic cylinder featuring a 25.4 mm cylinder stroke and a maximum cylinder capacity of 981 kN for pushing or lifting tasks.
Applications include synchronous lifting, load positioning, jacking, gantries, and general workshop hydraulic operations. The pump meets multiple standards and approvals including EN 1494:2000+A1:2008, UKCA, CE, and EN ISO 12100:2010, ensuring compliance and reliability.
Durable steel pump material and corrosion-resistant design. Two-stage displacement per stroke for versatile hydraulic control. Oil capacity of 901 ml for sustained hydraulic power. Compact form factor for reduced operator fatigue and increased ergonomics.

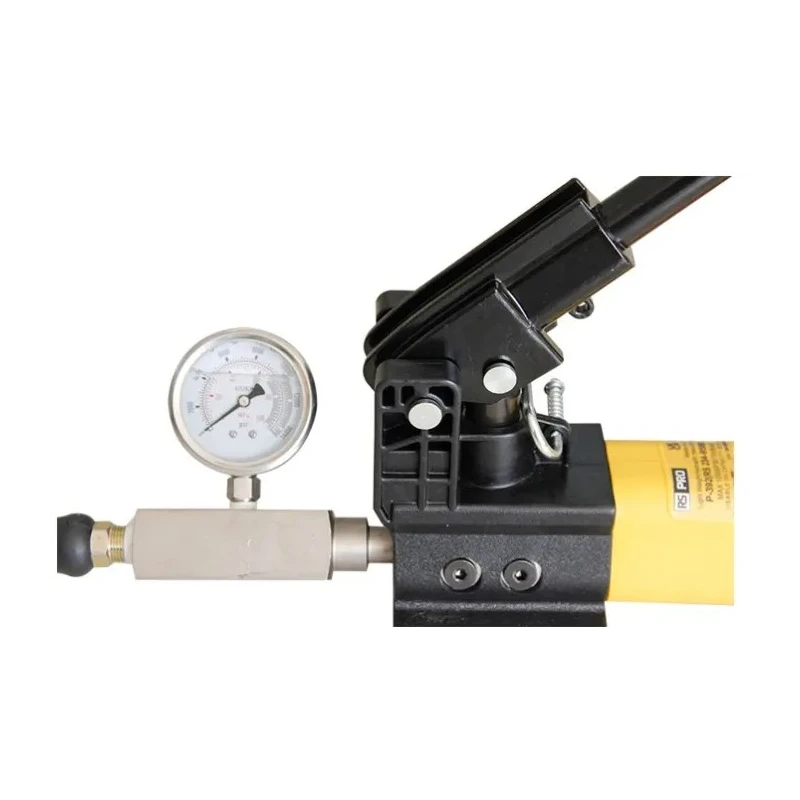

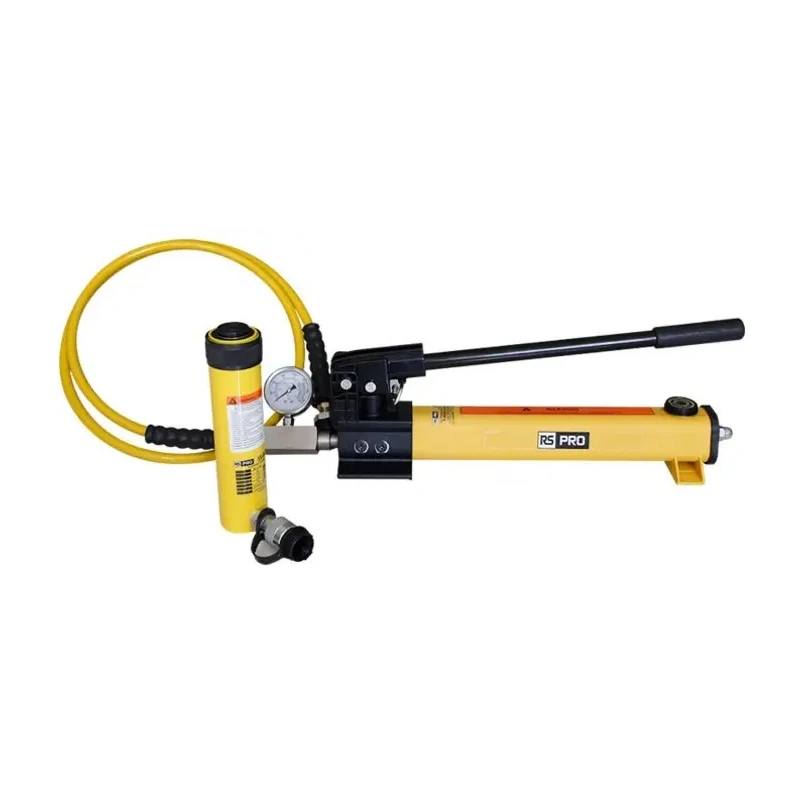

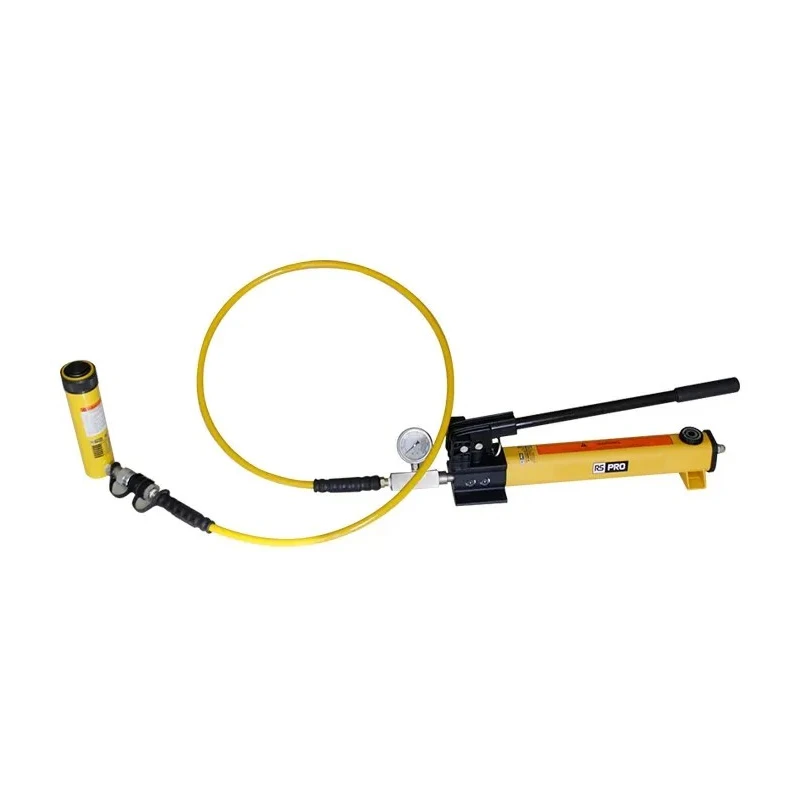

Complete set includes two-speed hydraulic hand pump, 10-ton cylinder, 2.0 m safety hose, pressure gauge, gauge adapter, and quick release NPT3/8 couplings for immediate operation.
This hydraulic hand pump assembly from RS Pro is engineered for demanding industrial, construction, and maintenance use cases where precision and reliability are critical. Explore more Hydraulic Pumps and fluid power tools at EnvMart to support your operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this hydraulic hand pump is 700 bar.
This model has a usable oil capacity of 0.901 liters (226 cm³).
The dimensions of this hydraulic pump are 533 mm in length, 127 mm in width, and 157 mm in height.
The cylinder stroke length for this hydraulic hand pump is 25.4 mm.
This unit weighs 4.5 kg.
The pump is constructed from durable steel and features a corrosion-resistant nylon encapsulated aluminium base.
The maximum handle effort required to operate this pump is limited to 42.2 kg.
It complies with multiple standards including EN 1494:2000+A1:2008, UKCA, CE, and EN ISO 12100:2010.
This pump is suitable for applications such as synchronous lifting, load positioning, jacking, and general workshop hydraulic operations.
The outlet type for this hydraulic pump is NPT3/8.
The displacement per stroke is 11.26 cm³ for the first stage and 2.47 cm³ for the second stage.
Yes, it is compatible with a 10-ton single-acting hydraulic cylinder.
