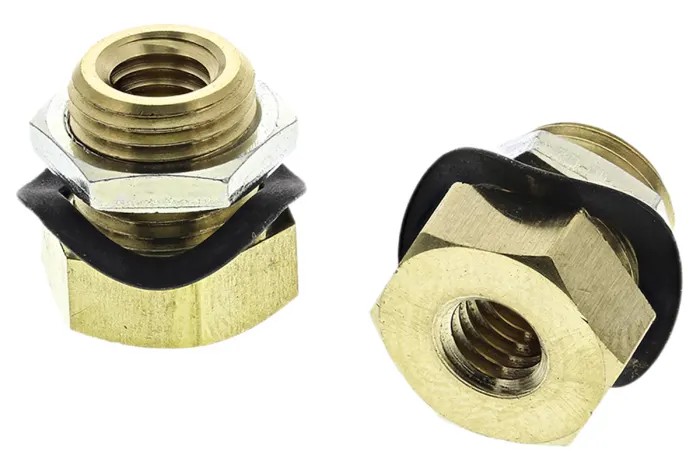

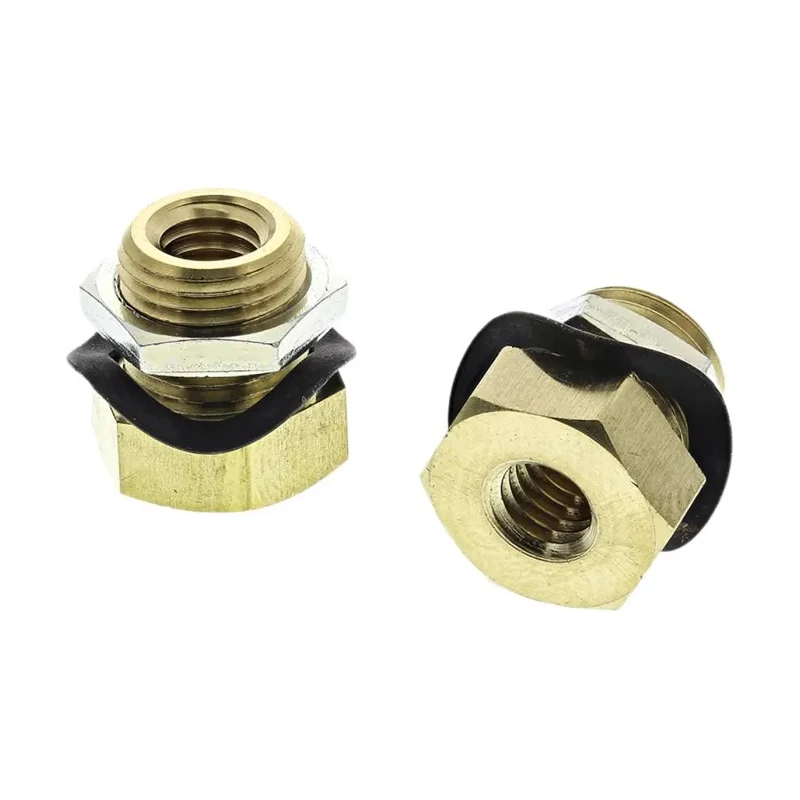

SMC Brass Pneumatic Fitting Female M5 Metric Thread 60°C Operating Temperature M-5E

The SMC M-5E is a brass pneumatic fitting designed for industrial and mechanical fluid power applications requiring a compact, durable right-angle feed-through connection. This female fitting features an M5 metric thread that facilitates secure coupling with compatible metric-threaded assemblies.

Constructed of nickel-plated brass, the M-5E fitting offers excellent corrosion resistance, particularly beneficial in exposed panel environments. It operates reliably up to a maximum temperature of 60°C and withstands system pressures up to 1 MPa, making it suitable for various pneumatic systems.

This fitting is designed as a 90° bulkhead union to provide efficient, space-saving through-panel connections commonly needed in instrumentation and control systems requiring M5 female metric bulkhead connectors.

Brass with nickel finish ensures corrosion protection and durability. Supports continuous operation up to 60°C in moderate temperature applications. Maximum pressure rating of 1 MPa for routine pneumatic system loads. Compact M5 female metric thread offers compatibility with standard fittings.

90-degree angle facilitates right-angle feed in panel assemblies. RoHS compliance ensures adherence to restricted substance regulations.

Ideal for use where moderate pressure pneumatic or fluid lines pass through panels or enclosures, the SMC M-5E facilitates installation in industrial, laboratory, HVAC, and manufacturing settings. Its robust brass construction matched with precise metric threading makes it a dependable fitting for pneumatic connectors in various applications.
