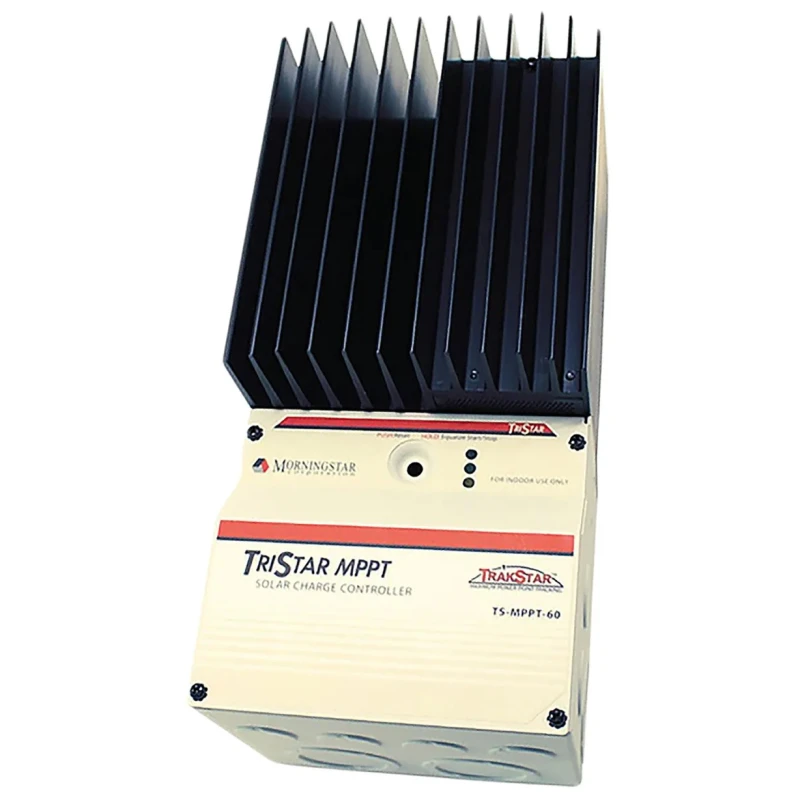

Morningstar 150 V dc Solar Charge Controller 45 A TS-MPPT-60

Morningstar TS-MPPT-60 150 V dc Solar Charge Controller 45 A is an advanced maximum power point tracking (MPPT) battery charger tailored for off-grid photovoltaic (PV) systems up to 3 kW. It delivers the industry's highest peak efficiency of 99%, minimizing power losses compared to other MPPT controllers. This controller incorporates a smart tracking algorithm that rapidly locates the solar array's peak power point, optimizing energy harvest from photovoltaic panels.

Equipped with an on-board Ethernet port, the TS-MPPT-60 supports a fully web-enabled interface, allowing remote monitoring and control. Additionally, it stores up to 200 days of data logs for comprehensive system analysis. Certified to multiple international standards including ETL (UL1741), CE, cETL (CSA C22.2 No. 107.1-01), and compliant with NEC U.S. National Electric Code, it meets rigorous safety and performance criteria.

Manufactured in an ISO 9001 certified facility, this renewable energy solution is RoHS compliant and designed for various industrial and commercial applications such as hybrid photovoltaic-plus-second energy source systems, railroad signaling, residential solar setups, security instrumentation, rural electrification, and telecommunications infrastructure.

The compact form factor measures 291 mm in length, 130 mm in width, and 142 mm in depth, supporting versatile installation options. This solar charge controller ensures extremely high reliability and very high efficiency, delivering optimal performance in demanding environments. Its certification to FCC Class B Part 15 further guarantees electromagnetic compatibility, making the TS-MPPT-60 suitable for sensitive electronic ecosystems.

Choose the Morningstar TS-MPPT-60 to maximize energy harvest in off-grid solar photovoltaic systems with trusted durability and advanced features. Features a peak efficiency of 99% ensuring minimal power loss during operation.

Includes a smart tracking algorithm to quickly find the solar array peak power point. On-board Ethernet interface enables full web-enabled control and up to 200 days of data logging. Certified to ETL (UL1741), CE, cETL, and complies with NEC U.S. National Electric Code.

Suitable for hybrid systems, telecommunications, and rural electrification applications. Manufactured in a certified ISO 9001 facility with RoHS compliance. Compact dimensions of 291mm (Length) x 130mm (Width) x 142mm (Depth) enable versatile installation.

Constructed to meet stringent FCC Class B Part 15 standards for electromagnetic compatibility. Designed to provide high reliability for residential, commercial, and industrial solar power systems. Explore more Solar Charge Controllers and renewable energy solutions in the EnvMart catalog to find the perfect fit for your project's needs.
