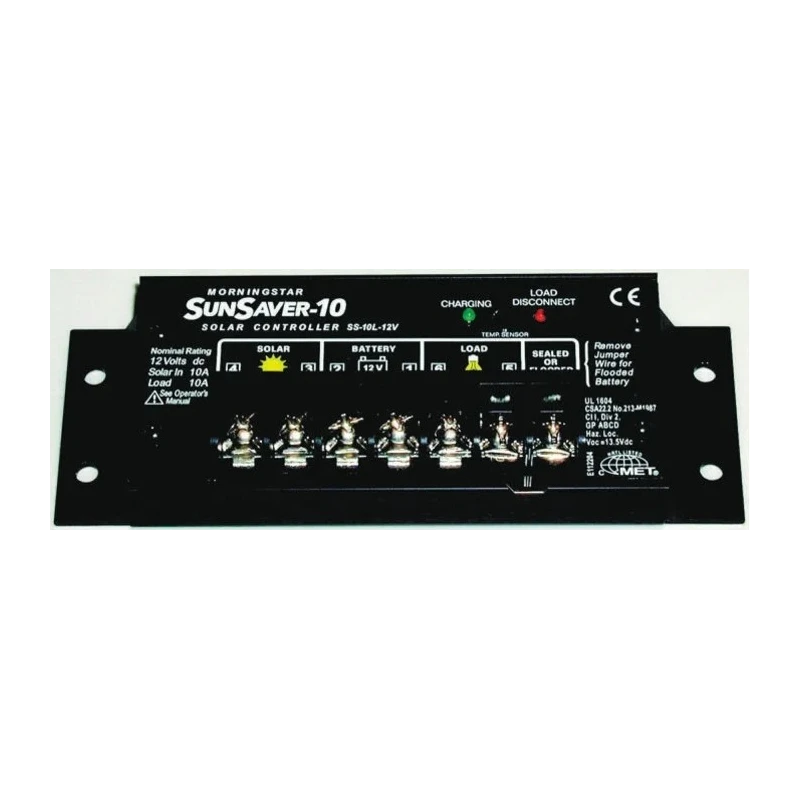

Morningstar 12 V dc Solar Charge Controller SS-10L-12, PWM Battery Charging, 10A Load Current, CE Certified SS-10L-12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Morningstar |
| Length | 152mm |
| Model | SS-10L-12 |
| Depth | 34mm |
| Width | 55mm |
| Standards/Approvals | CE |
| Better World Claim | Renewable Energy Solution |
| Solar Panel Voltage | 12V dc |
Key Features
- Operates with 12V dc solar panel voltage suitable for small solar systems.
- Employs PWM charging technology for optimal battery performance and long life.
- Includes low voltage disconnect to protect battery from over-discharge.
- Fully encapsulated with epoxy potting ensuring durability and weather resistance.
- Temperature compensated charging for improved battery efficiency.
- Selectable sealed or flooded battery types for versatile battery compatibility.
- Green charging and red low voltage disconnect indicators for clear status monitoring.
- Compact dimensions of 152mm length, 55mm width, and 34mm depth for easy installation.
Product Description
Morningstar SS-10L-12 is a high-quality 12 V dc Solar Charge Controller designed to manage solar panel input efficiently while protecting batteries in solar power systems. Featuring PWM (Pulse Width Modulation) battery charging, this controller provides precise set-point accuracy of 35mV and can handle 10A load current with a 25% overload rating, making it suitable for various small to medium solar installations.
The unit is fully encapsulated in epoxy potting to resist harsh environmental conditions and includes temperature compensation to maximize battery charging efficiency across different climates. Users can select between sealed or flooded battery types depending on their battery configuration, ensuring versatile use.
Low voltage disconnect functionality protects the battery from deep discharge, enhancing battery lifespan. The controller provides intuitive green charging and red low voltage disconnect LED indicators for easy monitoring of system status.
With dimensions of 152mm length, 55mm width, and 34mm depth, it offers a compact form factor for straightforward installation in solar power setups for industrial, residential, agricultural, and commercial applications.
This CE-certified charge controller is optimal for renewable energy solutions and supports sustainable energy goals. The product is manufactured in Taiwan, Province Of China, reflecting international quality standards.
Operates with 12V dc solar panel input voltage. Employs PWM charging technology with high set-point accuracy. Includes low voltage disconnect for battery protection. Robust epoxy potting for environmental protection. Temperature compensation for efficient charging.
Selectable sealed/flooded battery compatibility. Clear LED status indicators for charging and disconnect. Compact dimensions for easy integration. CE-certified for quality assurance. Ideal for renewable energy applications across industries.
Explore EnvMart's comprehensive range of Solar Charge Controllers for trusted solutions in solar energy management and sustainable power systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SS-10L-12 solar charge controller can handle a maximum load current of 10A with a 25% overload rating.
This model allows for selectable compatibility with either sealed or flooded battery types, providing versatility for different battery configurations.
The SS-10L-12 operates with a solar panel input voltage of 12V dc, making it suitable for small solar systems.
The PWM (Pulse Width Modulation) technology used in this controller provides precise set-point accuracy of 35mV, optimizing battery performance and longevity.
The dimensions of the SS-10L-12 are 152mm in length, 55mm in width, and 34mm in depth, allowing for easy installation in various setups.
It includes a low voltage disconnect feature to protect the battery from over-discharge, enhancing battery lifespan.
Yes, the SS-10L-12 is CE certified, ensuring it meets international quality standards.
The unit is fully encapsulated with epoxy potting, providing durability and weather resistance against harsh environmental conditions.
This model is suitable for various applications including industrial, residential, agricultural, and commercial solar power setups.
The controller features green charging and red low voltage disconnect LED indicators for clear status monitoring of the system.
The SS-10L-12 is manufactured in Taiwan, reflecting its adherence to international quality standards.
The SS-10L-12 is part of a renewable energy solution, contributing to sustainable energy goals.
