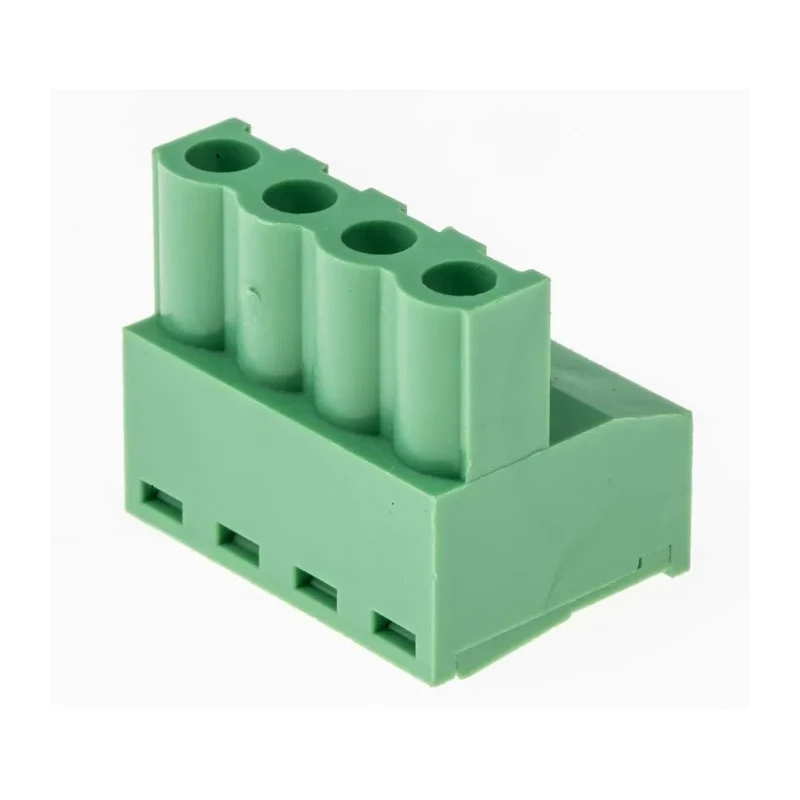

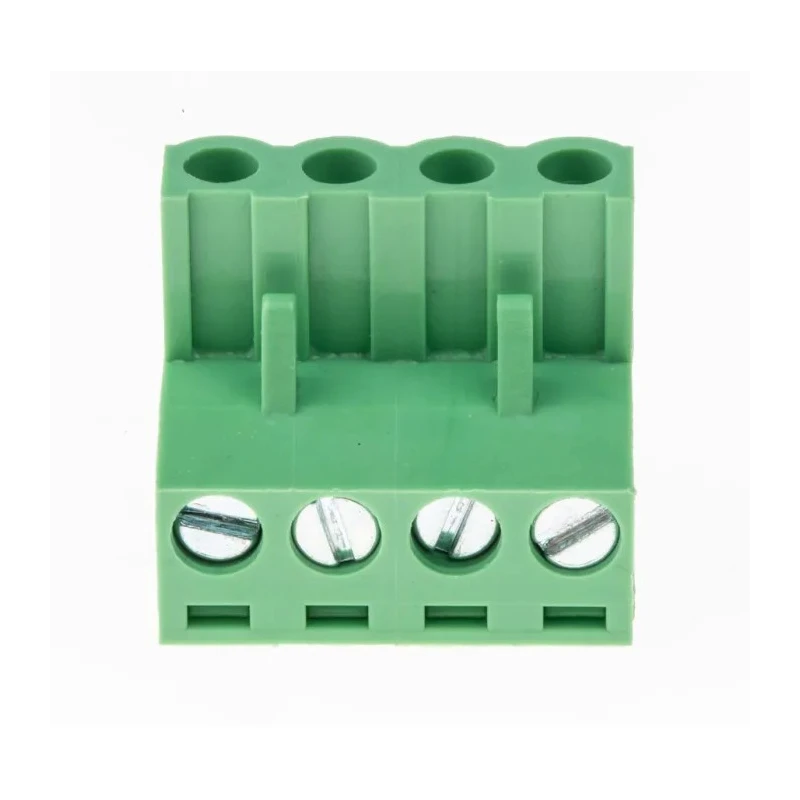

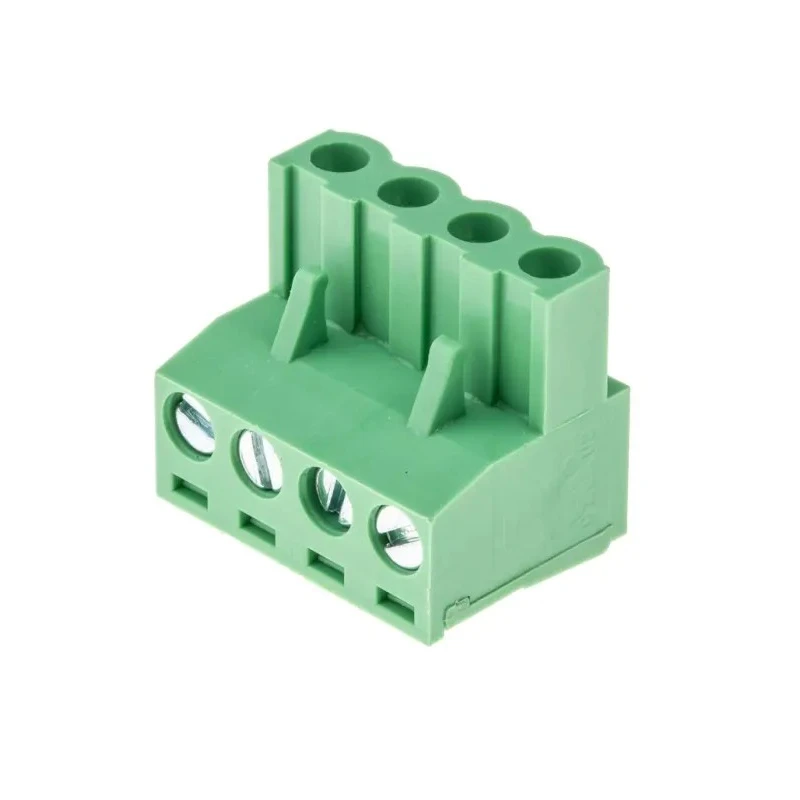

RS PRO Series Pluggable Terminal Block, 4-Contact, 5.08 mm Pitch, 1 Row, Female Connector, 15A, 300V, Polyamide CTB9209
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Length | 20.3mm |
| Model | CTB9209 |
| Depth | 15mm |
| Width | 17.7mm |
| Housing Material | Polyamide |
| Series | CTB9209 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | cURus, UL94-V0 |
| Number of Contacts | 4 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.33mm² |
| Maximum Wire Size mm² | 2mm² |
| Wire Connection Method | Screw |
Key Features
- Constructed from green polarised polyamide (PA66) housing with UL94-V0 flame retardant rating.
- Features tin plated brass terminals secured by M2.5 captive slotted screws.
- Supports wire sizes from 0.33 to 2 mm² for both solid and stranded cables.
- Rated for 15A current and 300V voltage suitable for power and signal transmission.
- Right-angle orientation with guided pin alignment for secure PCB mounting.
- Operating temperature range from -40°C to +105°C ensures reliability in harsh conditions.
- Complies with standards cURus and UL94-V0 for safety and quality assurance.
- Ideal for permanent or temporary circuit applications in industrial and electronic equipment.
Product Description
RS PRO CTB9209 Series Pluggable Terminal Block is a high-quality connector designed for safe and reliable PCB wiring in industrial, electronic, and manufacturing applications. Featuring a 4-contact configuration arranged in a single row with a standard 5.08 mm pitch, this terminal block delivers efficient signal and power connections.
The housing is made from robust green polyamide (PA66), meeting the UL94-V0 flame retardant standard, providing excellent durability and fire resistance. The connector uses tin plated brass terminals with captive M2.5 slotted screws to ensure stable and secure wire connections for wire sizes ranging from 0.33 to 2 mm², compatible with both solid and stranded conductors.
This pluggable terminal block supports a current rating of 15A at 300V, suitable for a wide range of industrial and electronic applications including control panels, wiring assemblies, HVAC equipment, and automation systems. Its right-angle orientation and guided pin alignment facilitate easy and precise PCB mounting, enhancing assembly efficiency and reliability.
Engineered to operate reliably in temperatures from -40°C to +105°C, this product ensures consistent performance even in harsh or demanding environments. It complies with safety standards such as cURus and UL94-V0, affirming its quality and safety credentials.
Green polarised polyamide housing with UL94-V0 rating for flame retardance. Tinned brass terminals with captive M2.5 screws for secure connections. Supports 0.33 to 2 mm² wire sizes for flexible wiring options. Rated for 15A current and 300V voltage for power and signal transmission.
Right-angle orientation with pin alignment for reliable PCB installation. Operating temperature range from -40°C to +105°C for versatility. Certified to cURus and UL94-V0 standards for safety compliance. Ideal for industrial, manufacturing, and electronic PCB applications.
This RS PRO CTB9209 pluggable terminal block is an essential component for engineers and technicians seeking reliable, safe, and easy-to-use PCB terminal solutions. Browse more connectors and accessory solutions in the Electronics & Electricals category on EnvMart to complete your equipment setup.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 15A and a voltage of 300V, making it suitable for both power and signal transmission applications.
The terminal block features a 5.08 mm pitch and has a 4-contact configuration arranged in a single row.
It supports wire sizes ranging from 0.33 mm² to 2 mm² for both solid and stranded cables.
The housing is made from green polyamide (PA66) with a UL94-V0 flame retardant rating, and it features tin plated brass terminals.
Wires are connected using a screw method with M2.5 captive slotted screws, ensuring stable and secure connections.
The dimensions are as follows: length 20.3 mm, width 17.7 mm, and depth 15 mm.
This model has a right-angle orientation, which facilitates easy and precise PCB mounting.
It complies with cURus and UL94-V0 standards for safety and quality assurance.
It is ideal for use in industrial, electronic, and manufacturing applications, including control panels and automation systems.
Yes, it is certified to cURus and UL94-V0 standards, ensuring compliance with safety and quality requirements.
This terminal block features a female connector gender, suitable for various wiring applications.
