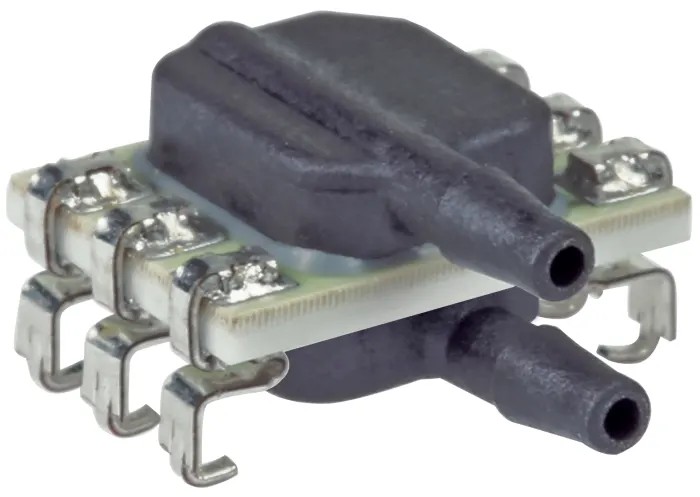

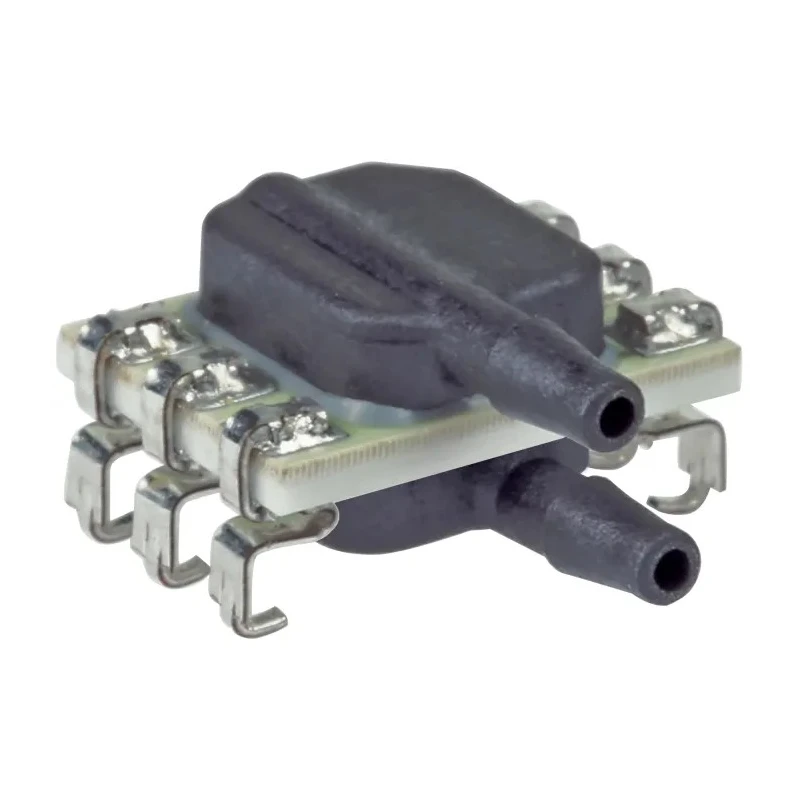

Honeywell Technologies Differential Pressure Sensor 15 psi 6-Pin SMT Surface Mount ABPMRRV015PDAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 15 psi |
| Height | 10.63mm |
| Length | 7.3mm |
| Model | ABPMRRV015PDAA5 |
| Sensor Type | Differential Pressure Sensor |
| Mount Type | Surface |
| Series | ABP |
| Maximum Operating Temperature | 85°C |
| Port Type | Dual Radial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | -15psi |
| Maximum Overload Pressure | 250psi |
Key Features
- Provides ±0.25% BFSL accuracy for precise differential pressure measurements.
- Operates across a temperature range from -40°C to 85°C with stable readings.
- Dual radial barbed port type supports wet/wet differential sensing with silicone-based gel coating protection.
- Supports single low-voltage supply operation at 3.3 V or 5 V with low power sleep mode.
- High update rates with 1 kHz analogue and 2 kHz digital outputs for real-time pressure monitoring.
- Compact surface mount SMT package with 6 pins suitable for PCB board mounting.
- Robust overpressure tolerance up to 250 psi with ±1.5% total error band across compensated range.
Product Description
Honeywell Technologies ABPMRRV015PDAA5 is a differential pressure sensor with a maximum operating pressure of 15 psi, housed in a compact 6-pin SMT surface mount package. Designed to deliver highly accurate, reliable performance in industrial, medical, and commercial systems, this sensor supports both gage and differential pressure measurements.
The sensor features a ±0.25% BFSL accuracy, ensuring precise pressure readings. It operates over a wide temperature range from -40°C to 85°C, supported by on-board temperature compensation via an ASIC for stable measurements. The device runs from a low-voltage 3.3V or 5V supply and includes a low-power sleep mode, reducing current consumption to microampere levels.
The dual radial barbed port configuration allows for easy tubing connections and supports wet/wet differential sensing. The sensor’s P1 port is coated with a silicone-based gel to protect from non-corrosive liquids and condensation, while port P2 can accept non-corrosive liquids for wet applications.
Its mechanical design tolerates overpressure up to 250 psi with a total error band of ±1.5% FSS across the compensated pressure range. The sensor’s compact dimensions of 7.3 mm length and 10.63 mm height make it ideal for PCB-mounted integration.
±0.25% BFSL accuracy for precise measurement. Operating temperature range from -40°C to 85°C for harsh environments. Wide supply voltage range of 3.3V to 5V with low power consumption. Dual radial barbed ports for ease of fluid connection and wet sensing compatibility.
Robust construction with 250 psi maximum overload pressure. Compact 6-pin SMT surface mount package suitable for industrial and medical applications. Suitable for ventilators, oxygen concentrators, HVAC systems, and pneumatic controls.
This differential pressure sensor is widely used in industrial automation, medical devices, HVAC systems, and commercial appliances requiring precise pressure monitoring and control. Its combination of accuracy, size, and protective features makes it a reliable choice for various demanding applications.
Explore more Honeywell Pressure Sensors and components in our Electronics & Electricals category on EnvMart to find the optimal solution for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has an accuracy of ±0.25% BFSL, ensuring precise differential pressure measurements.
The maximum operating pressure is 15 psi.
It operates over a temperature range from -40°C to 85°C.
This model supports a low-voltage supply operation at 3.3V or 5V.
It features dual radial barbed ports for easy tubing connections and supports wet/wet differential sensing.
It can tolerate a maximum overload pressure of 250 psi.
The sensor has a length of 7.3 mm and a height of 10.63 mm.
This differential pressure sensor has a pin count of 6.
The total error band is ±1.5% across the compensated pressure range.
It is widely used in industrial automation, medical devices, HVAC systems, and commercial appliances requiring precise pressure monitoring.
This model is RoHS compliant.
Yes, it includes a low-power sleep mode that reduces current consumption to microampere levels.
