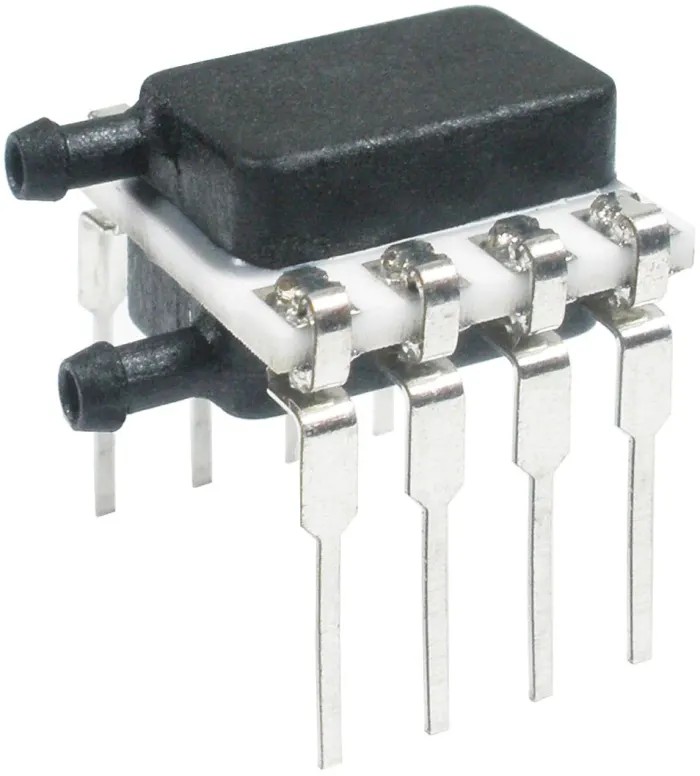

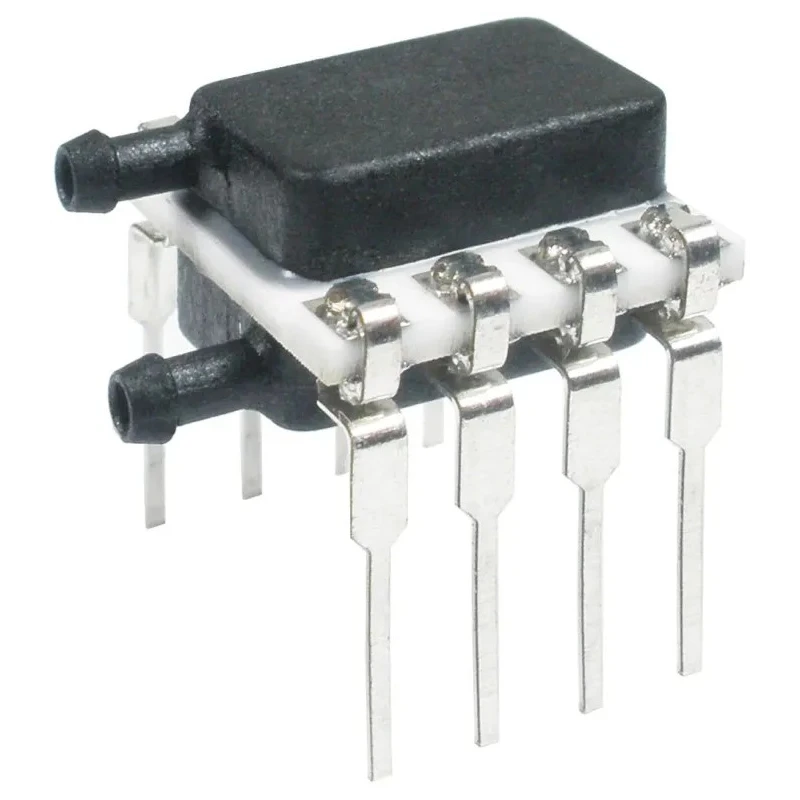

Honeywell Technologies Gauge Pressure Sensor Through Hole DIP Package 8 Pin 3.3-5V ±0.25% Accuracy 100mbar SSCDRRV100MGAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 100 mbar |
| Height | 13.75mm |
| Length | 10mm |
| Model | SSCDRRV100MGAA5 |
| Sensor Type | Gauge Pressure Sensor |
| Mount Type | Through Hole |
| Series | SSC |
| Maximum Operating Temperature | 85°C |
| Port Type | Dual Radial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Minimum Operating Pressure | 0mbar |
| Maximum Overload Pressure | 850mbar |
Key Features
- Operates within a supply voltage range of 3.3V to 5V for versatile electronic integration.
- Features a through-hole mount type suitable for robust PCB assembly.
- Offers high accuracy of ±0.25% to ensure reliable readings.
- Supports maximum operating pressure of 100 mbar and overload pressure up to 850 mbar.
- Equipped with dual radial barbed port type for stable sensor functionality.
- Designed to operate in temperature ranges from -40°C to 85°C for demanding environments.
- Compact dimensions with length 10mm and height 13.75mm for space-efficient designs.
- Part of Honeywell’s SSC (TruStability Standard Accuracy Silicon Ceramic) Series for industry-leading stability.
Product Description
Honeywell SSCDRRV100MGAA5 Gauge Pressure Sensor is a high-precision piezoresistive silicon sensor designed to deliver a ratiometric analog output. It features a Through Hole 8 DIP package, making it ideal for electronic circuit board integration with reliable mechanical stability. This sensor operates within a supply voltage range of 3.3V to 5V and accurately measures gauge pressures up to 100 mbar while withstanding overload pressures up to 850 mbar.
The SSCDRRV100MGAA5 sensor supports dual radial barbed ports and operates effectively within a wide temperature range from -40°C to 85°C, ensuring functionality in harsh industrial and commercial environments. Its compact footprint, with a length of 10mm and height of 13.75mm, allows for installation in space-constrained applications.
Part of the Honeywell TruStability Standard Accuracy Silicon Ceramic (SSC) Series, this sensor offers industry-leading long-term stability, making it suitable for industrial automation, HVAC systems, laboratory instruments, and precise pressure measurement tasks. The device complies with RoHS standards and includes a liquid media option, expanding its application versatility.
The sensor’s 8-pin DIP package enhances electrical connections and integration into printed circuit boards through a through-hole mounting method, providing robust mechanical support. It delivers consistent and accurate pressure sensing, vital for water treatment plants, manufacturing quality control, automotive testing, and other specialized pressure sensing applications.
Operates at supply voltages from 3.3V to 5V. Accuracy of ±0.25% ensures precision measurement. Maximum operating pressure rating of 100 mbar with 850 mbar overload tolerance. Dual radial barbed port reduces signal loss and improves stability.
Temperature operating range from -40°C up to 85°C supports demanding environments. Compact length of 10mm and height of 13.75mm fits diverse designs. Piezo-resistive silicon technology delivers ratiometric analog output for easy signal processing.
RoHS compliant sensor suitable for industrial, laboratory, and HVAC applications.
This Honeywell pressure sensor is a reliable choice for electronics requiring gauge pressure measurement with high accuracy and mechanical durability. Browse our Electronics & Electricals Sensors category for more pressure sensor solutions.
Explore more products in our Pressure Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this gauge pressure sensor is 100 mbar, with an overload pressure tolerance of up to 850 mbar.
This model features an accuracy rating of ±0.25%, ensuring reliable pressure measurements.
The sensor operates effectively within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
It supports a through-hole mount type, which is ideal for robust PCB assembly.
The sensor has a compact design with a length of 10mm and a height of 13.75mm.
This model operates within a supply voltage range of 3.3V to 5V, allowing for versatile electronic integration.
It delivers a ratiometric analog output, facilitating easy signal processing.
It is equipped with dual radial barbed ports, which reduce signal loss and improve stability.
Yes, the sensor complies with RoHS standards, making it suitable for various applications.
This sensor is suitable for industrial automation, HVAC systems, laboratory instruments, and precise pressure measurement tasks.
The DIP package of this sensor has 8 pins, enhancing electrical connections for PCB integration.
It utilizes piezoresistive silicon technology, which provides accurate pressure sensing capabilities.
