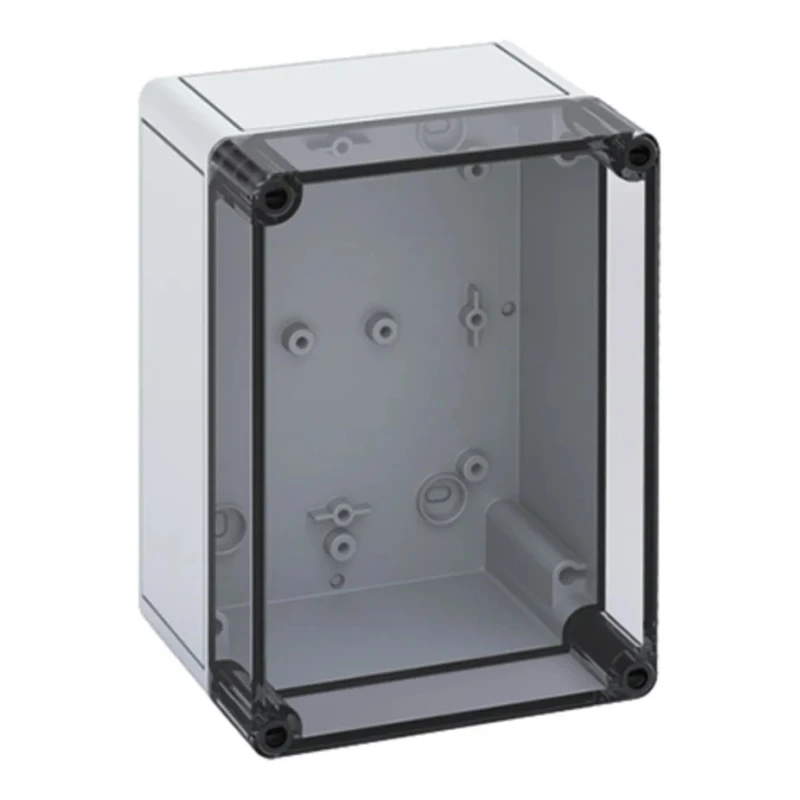

Spelsberg TK PS Series Grey Transparent Lid Polystyrene Enclosure IP66 IK07 111 mm x 130 mm x 180 mm

Spelsberg 11151601 TK PS Series Polystyrene Enclosure features a grey polystyrene body combined with a transparent lid made of polycarbonate, providing superior visibility and protection. This enclosure is designed to house a wide range of electrical, electronic, and pneumatic equipment safely and efficiently.

The enclosure boasts an IP66 ingress protection rating according to EN 60529 and DIN VDE 0470-1, ensuring complete dust ingress protection and resistance to water jets, making it ideal for industrial and outdoor applications requiring high protection levels.

Its IK07 rating per DIN EN 5012 and VDE 0470 Part 100 guarantees excellent resistance against impacts, protecting the housed equipment from mechanical damage. The flammability rating conforming to VDE 0471 and UL94 at 650 °C / HB underlines its safety in electrical environments sensitive to fire hazards.

The compact dimensions (External Height: 111 mm, External Length: 130 mm, External Width: 180 mm) allow it to be installed in tight spaces while providing adequate room for wiring and components. Wall mounting is facilitated using through holes located below the lid fixing screws, and surface mounting can be done using knockouts in the base, which are sealed with plugs to maintain the enclosure's IP rating.

A polyurethane cover gasket is integrated to ensure a secure seal against environmental contaminants. The enclosure is halogen-free, reducing the risks associated with toxic emissions during fire, aligning with safety and environmental regulations.

This product is RoHS compliant and manufactured in Germany under strict quality controls, meeting high industry standards. The TK PS series enclosure is suitable for diverse industrial, laboratory, HVAC, agricultural, and commercial electrical housing applications.

Made from durable polystyrene body with a transparent polycarbonate lid for easy visual inspection. Rated IP66 for complete dust protection and resistance to powerful water jets. IK07 impact rating ensures excellent resistance to mechanical impacts.

Dimensions of 111 mm height, 130 mm length, and 180 mm width provide compact housing for equipment. Suitable for wall and surface mounting with included sealing plugs and polyurethane gasket for enhanced protection. Operating temperature range of -25 to +40 °C accommodates a variety of environments.

Flammability rated VDE 0471, UL94, 650 °C / HB standards for safety compliance. Halogen-free construction minimizes harmful emissions in case of fire. Designed without metric knockouts to offer flexible customization for cables and conduits.

Manufactured in Germany assuring quality and RoHS compliance. Explore more reliable electrical enclosures within the EnvMart catalog to find the perfect fit for your industrial electrical housing needs.
