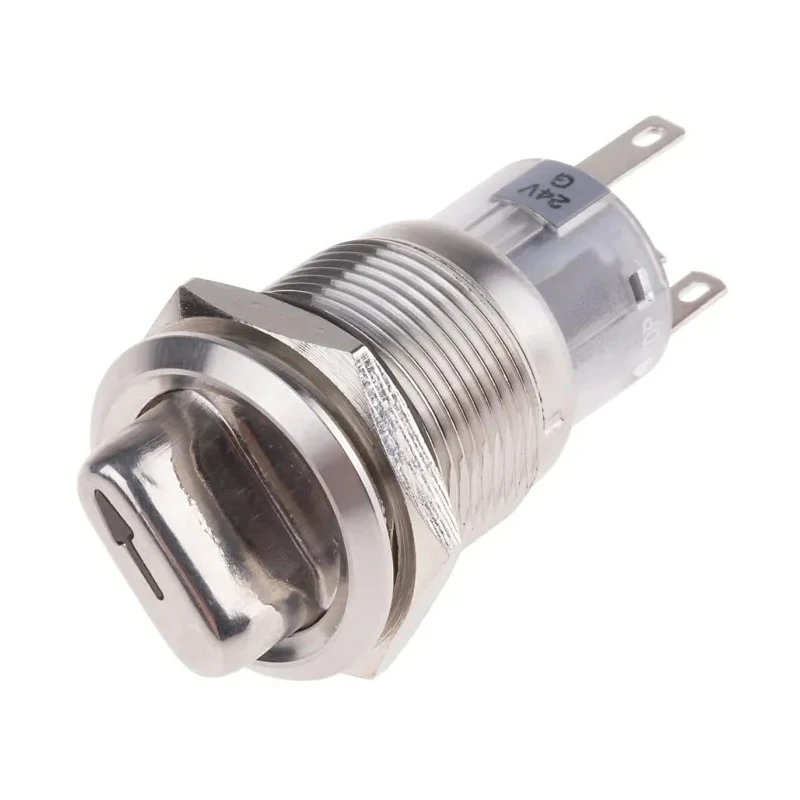

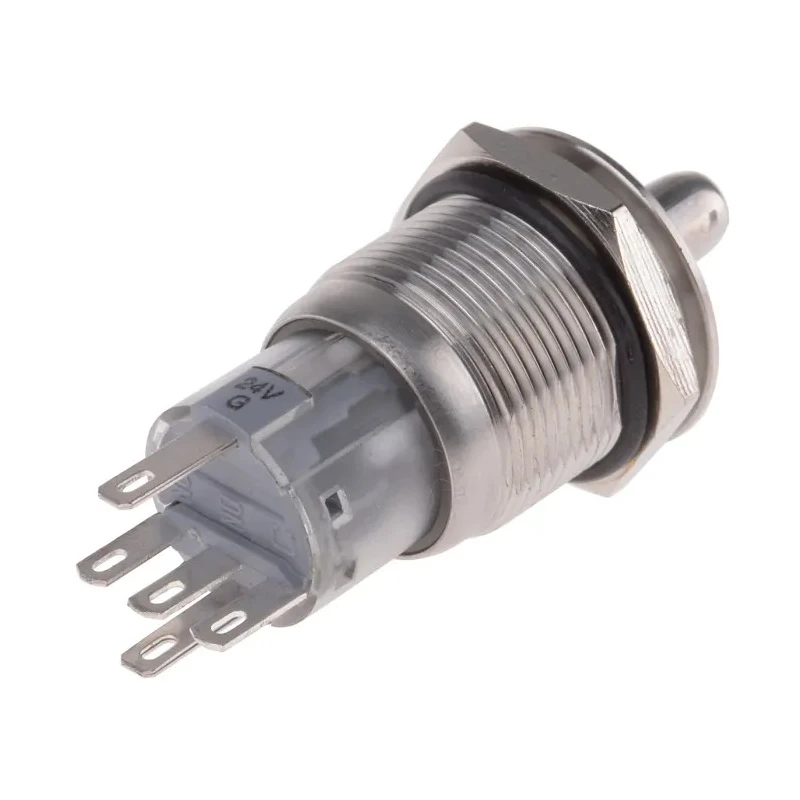

RS PRO Illuminated Anti-Vandal Selector Switch On-On 2 Positions IP67 Stainless Steel AV03 Series 877-1971

The RS PRO 877-1971 illuminated selector switch is a robust anti-vandal rotary switch designed for industrial and automation applications. Featuring a maintained On-On contact configuration, this switch offers precise control with two selectable positions and a 90° angle of throw.

Constructed from stainless steel, this 19mm rotary switch ensures high mechanical strength and vandal resistance, further complemented by an IP67 rating, which guarantees protection against dust ingress and water immersion above the panel. The switch also boasts an IK02 rating, resisting minor impacts of 0.2 joules.

Illumination is provided via LEDs available in red, green, or blue colors, with voltage options of 12V, 24V, and 220V, allowing clear visual indication of switch position and status. The illuminated arrow feature enhances user interaction and operational clarity.

The mechanical life of the switch is rated at 50,000 cycles without load, ensuring reliable long-term use in demanding environments. Installation hardware includes a securing nut and a panel sealing O-ring to maintain the IP67 protection level.

This selector switch meets international standards including CE, RoHS, and UL, emphasizing safety and regulatory compliance. The switch is ideally suited for use in electrical panels, industrial automation, HVAC controls, and other commercial equipment requiring robust and reliable switching solutions.

The switch offers a maintained On-On operation with a 90° throw angle. Stainless steel construction provides anti-vandal protection for harsh environments. IP67 rating ensures excellent protection against water and dust ingress.

Available LED illumination in multiple voltages and colors enhances visibility. Mechanical life rated at 50,000 cycles for durable performance. Includes nut and sealing O-ring for installation integrity. Complies with CE, RoHS, and UL standards for quality and safety.

Manufactured in Taiwan, Province of China, ensuring high-quality production standards. Explore the RS PRO range on EnvMart for an extensive selection of Selector Switches and industrial electrical components tailored for your technical requirements.
