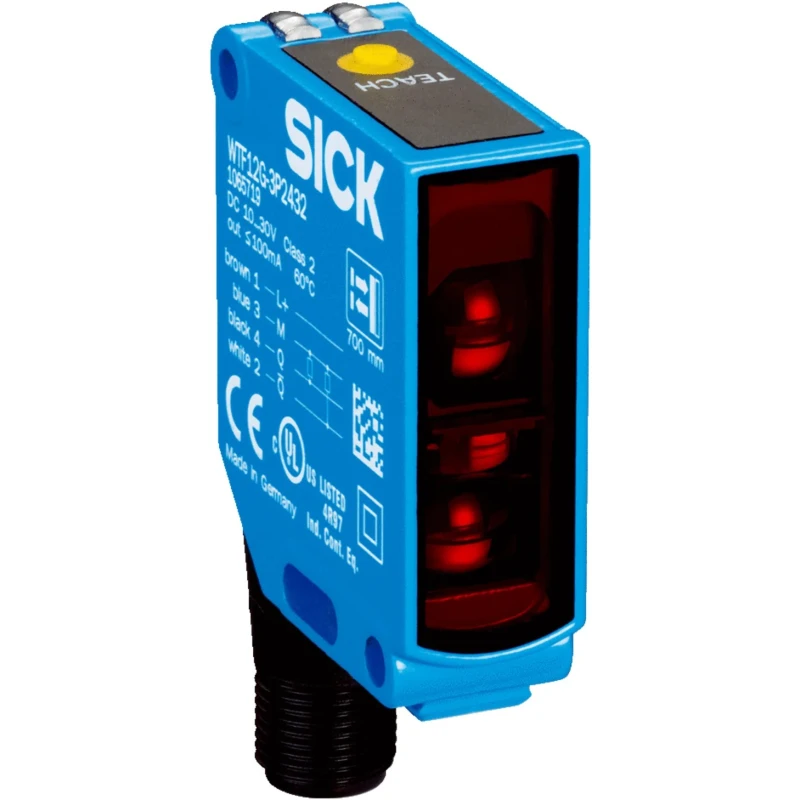

SICK Foreground Suppression Photoelectric Sensor, Block Style, 150 mm to 700 mm Detection Range, PNP Output WTF12G-3P2432
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 2ms |
| Light Source | Red Light |
| Detection range | 150 mm → 700 mm |
| Model | WTF12G-3P2432 |
| IP Rating | IP66, IP67 |
| Mount Type | Screw |
| Housing Material | Metal |
| Output type | PNP |
| Series | TranspaTect |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Foreground Suppression |
| Terminal type | 4-Pin Connector |
| Interface Type | 4-Pin, M12 Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE Certified, UL Certified |
| Materials Detected | Shiny Object, Transparent Object |
| Sensor Style | Block |
| Freedom of machine design | no mounting system for the installation of a reflector required |
| Quick commissioning | there is no need to mount a reflector or precisely adjust the sensor |
| Machine downtime is minimized | the integrated AutoAdapt function extends the time between cleanings |
| Heightened productivity | mechanical and chemical ruggedness due to the metal housing |
Key Features
- Rugged metal housing with optional PTFE coating for mechanical and chemical resistance.
- Reliable detection of shiny, transparent, and semitransparent objects without need for a reflector.
- IP66 and IP67 rated for robust protection against dust and water.
- Quick and easy commissioning via a teach-in pushbutton and visible status LEDs from all sides.
- Continuous AutoAdapt function ensures uninterrupted operation even with background contamination.
- Response time of 2 milliseconds for fast detection tasks.
- Operates in temperature range from -40°C to 60°C.
- Red light source with a 4-pin M12 connector interface.
Product Description
The SICK WTF12G-3P2432 foreground suppression photoelectric sensor is designed for industrial automation, providing reliable and accurate detection of transparent, semitransparent, and shiny objects without the need for a reflector. With a block style sensor body and detection range spanning from 150 mm to 700 mm, it integrates advanced SICK technology guaranteeing stable operation in varied environmental conditions.
This sensor features a rugged metal housing with available PTFE coating on request, enhancing its resistance to mechanical and chemical stresses commonly found in manufacturing environments. Its PNP output and 4-pin M12 connector interface provide seamless integration into control systems.
Thanks to its AutoAdapt feature, the sensor continuously adapts threshold settings even in contaminated backgrounds, minimizing machine downtime and maintenance needs. The bright PinPoint LED ensures precise alignment and easy troubleshooting, complemented by pushbutton teach-in and status LEDs visible from multiple angles.
Operating within a wide temperature range from -40°C to 60°C and protected to IP66/IP67 ingress ratings, this sensor suits demanding industrial applications including packaging, food and beverage processing, and pharmaceuticals industries.
The device complies with CE and UL safety standards, assuring quality and reliability for critical automation tasks. The screw mounting enables stable installation for long-term use in industrial setups.
Rugged metal construction ensures durability and chemical resistance. Detects transparent objects without reflector, reducing installation complexity. IP66 and IP67 rating protects against dust and water ingress. Fast response time of 2 ms improves process efficiency.
AutoAdapt maintains sensitivity despite background contamination. Easy commissioning via teach-in pushbutton and visible LED indicators. Wide operating temperature range from -40°C to 60°C. CE and UL certified for global compliance.
Red light source with 4-pin connector simplifies system integration. Screw mount for secure mechanical attachment.
The SICK WTF12G-3P2432 sensor finds extensive applications in industrial automation, manufacturing, quality control, and process monitoring where precise detection of difficult materials and objects is crucial. Its advanced features and robust construction ensure high productivity and safety in industrial and commercial environments.
Explore more Photoelectric Sensors and industrial automation products in our Electronics & Electricals category to find components that meet your application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model spans from 150 mm to 700 mm.
It features a PNP output type, suitable for various control systems.
The sensor has a fast response time of 2 milliseconds, enhancing detection efficiency.
The sensor is rated IP66 and IP67, providing robust protection against dust and water ingress.
It operates within a temperature range of -40°C to 60°C, making it suitable for various industrial environments.
This unit uses a red light source for detection tasks.
It features a screw mount type for stable installation in industrial setups.
It is designed to detect shiny, transparent, and semitransparent objects without the need for a reflector.
The maximum current rating is 100 mA, ensuring compatibility with various systems.
No, it does not require a reflector, simplifying installation and setup.
It complies with CE and UL safety standards, assuring quality and reliability.
It features a 4-pin M12 connector interface for easy integration into control systems.
