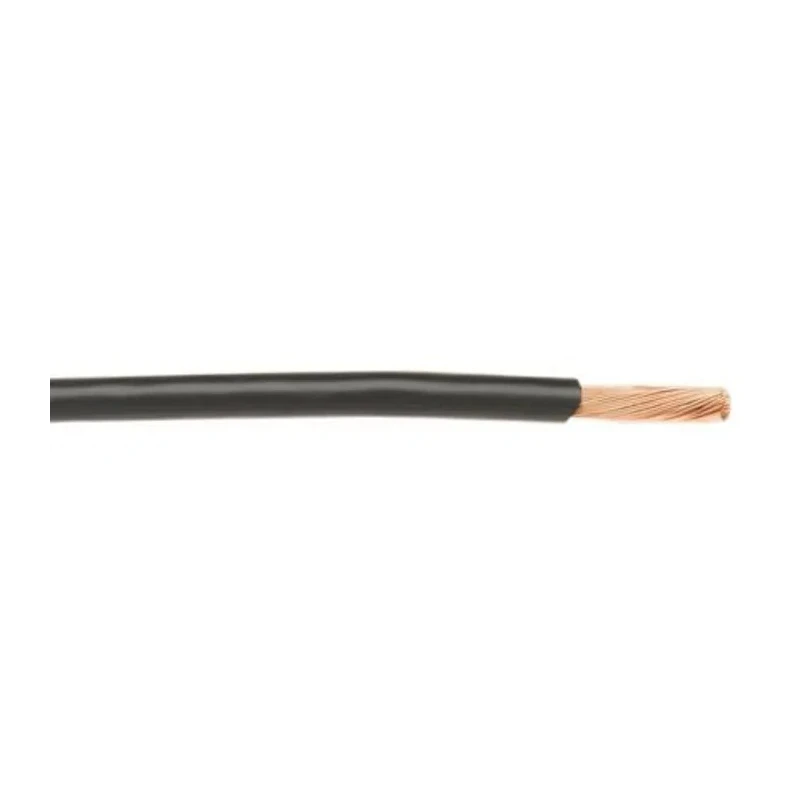

Alpha Wire Hook Up Wire PVC Series Black 0.13 mm², 26 AWG, 7 x 0.16 mm Strands, Copper Conductor, 150V, 105°C 7053 BK005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Hook Up Wire PVC Series Black 0.13 mm², 26 AWG, 7 x 0.16 mm Strands, Copper Conductor, 150V, 105°C 7053 BK005

Name: Alpha Wire Hook Up Wire PVC Series Black 0.13 mm², 26 AWG, 7 x 0.16 mm Strands, Copper Conductor, 150V, 105°C 7053 BK005
Brand: ALPHA WIRE
SKU: 108634
Price: 48.24 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	150V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.13mm²
Model	7053 BK005
Cable Length	30m
Series	Hookup Wire PVC
Outside diameter	0.99mm
Maximum Operating Temperature	105°C
Conductor Material	Copper
Cable Type	Hookup
Minimum Operating Temperature	-55°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	CSA International AWM I A/B, FT1, Military MIL-W-16878E TYPE B, UL AWM/STYLE 1429
Jacket Colour	Black
Fire Behaviour	FT1
American Wire Gauge	26AWG
Number of Strands	7
Core Strands	7 x 0.16mm
Size of Strands	0.16mm

Key Features

This hook up wire features stranded tinned copper conductors for enhanced conductivity and flexibility.
The irradiated PVC insulation provides resistance to soldering iron heat and corrosive environments.
The black, color-coded jacket supports easy circuit identification and installation.
Designed to withstand temperatures from -55°C to 105°C with FT1 fire behavior rating for safety.
Complies with military, UL, and CSA standards to ensure reliability in demanding applications.
Optimal for control cabinets, transformers, machine tools, and military electronic devices.
Measures 0.13 mm² cross-sectional area with 7 strands of 0.16 mm diameter each.
Operating voltage rating is 150 V suitable for enclosed electronic equipment and high-density wiring.

Product Description

Alpha Wire 7053 BK005 Hook Up Wire PVC Series Black 0.13 mm², 26 AWG with 7 x 0.16 mm copper strands, rated 150 V and maximum operating temperature of 105°C, is specifically designed for low voltage and current electronic applications.

This irradiated PVC hook up wire features a stranded tinned copper conductor that enhances conductivity and flexibility, making it ideal for use in high-density wiring inside enclosures.

The PVC insulation is irradiated for better resistance to soldering iron heat and corrosive environments while maintaining abrasion resistance. Its black jacket enables color-coded circuit identification, facilitating installation and maintenance.

Designed to meet the rigorous requirements of military, UL, and CSA standards, this wire is suitable for demanding applications such as control cabinets in protected environments, machine tools, transformers, off-road construction equipment, and military devices requiring high reliability.

The Hook Up Wire measures 0.13 mm² cross-sectional area with 7 strands of 0.16 mm each core strand diameter, and an outside diameter of 0.99 mm, providing a fine balance between compactness and electrical performance.

The wire is rated for continuous operation in temperatures ranging from -55°C to 105°C and has a fire behavior class of FT1, ensuring safety compliance in various industrial and commercial applications.

This product features stranded tinned copper conductors for superior electrical performance. Irradiated PVC insulation for heat and corrosion resistance. Black jacket for easy circuit identification. High temperature rating of 105°C and voltage rating of 150 V.

Meets CSA, UL, and MIL-W military standards for quality assurance. Suitable for use in control cabinets, transformers, military and machine tool applications. Strand construction of 7 x 0.16 mm core strands. Length of 30 meters for flexible deployment.
