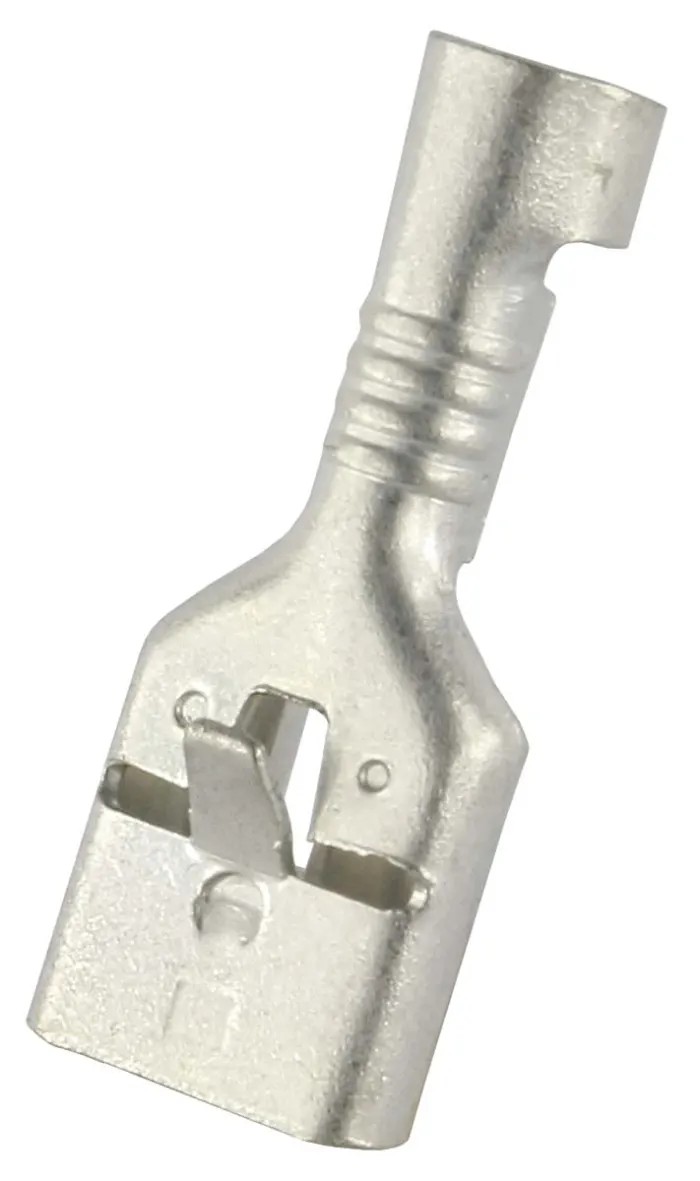

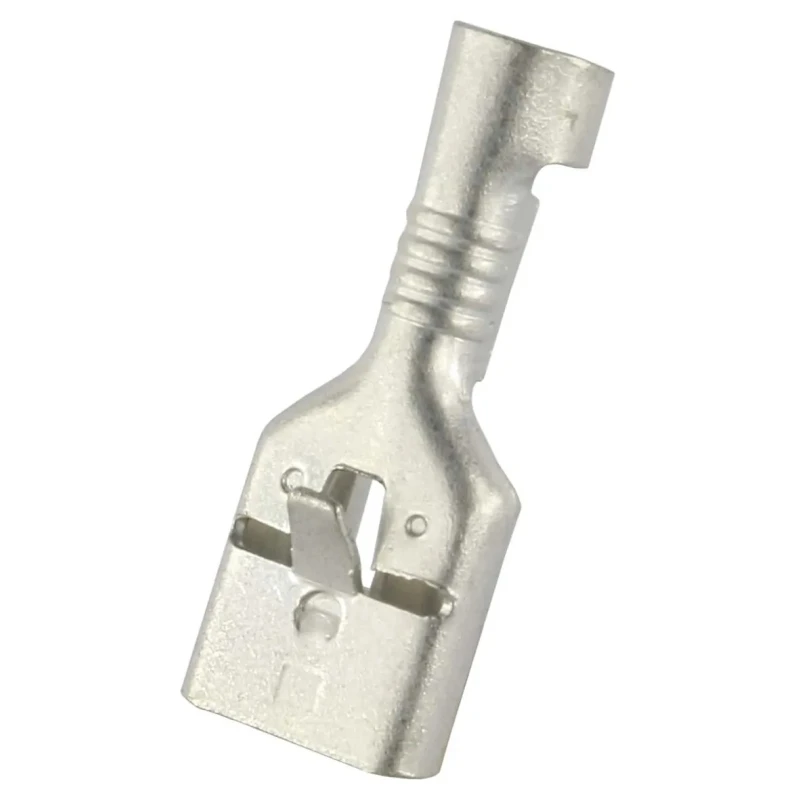

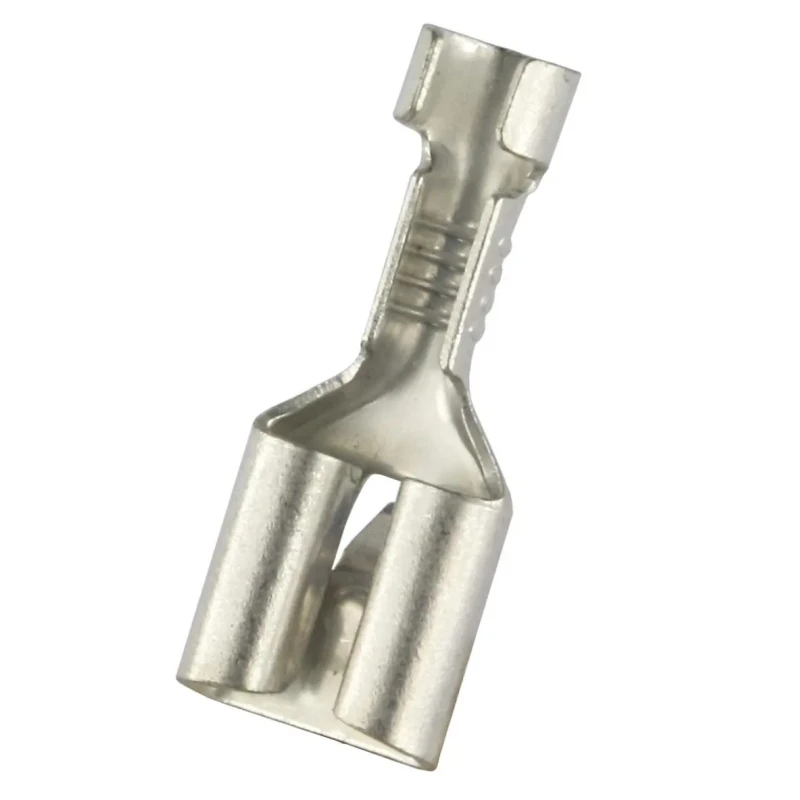

TE Connectivity RS PRO Silver Uninsulated Female Spade Connector Crimp 0.8 x 6.35 mm Tab Size 22 AWG to 16 AWG 205-5270
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TE Connectivity |
| Colour | Silver |
| Orientation | Straight |
| Model | 205-5270 |
| Gender | Female |
| Insulation | Uninsulated |
| Overall Length | 19.2mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.8mm |
| Tab Size | 0.8 x 6.35 mm |
Key Features
- Constructed from brass with tin plating for excellent conductivity and corrosion resistance.
- Measures 0.8mm thickness by 6.35mm tab width and 19.2mm overall length.
- Straight orientation design offers easy insertion and secure fit on matching male spade terminals.
- Uninsulated style allows visual inspection of the crimped connection.
- Suitable for automotive, industrial control, HVAC, communication, and power supply applications.
- Crimp termination facilitates fast, permanent electrical unions using quality crimp tools.
- Compatible with wire sizes from 0.5 mm² to 1.5 mm² (22 AWG to 16 AWG).
- Originates from Taiwan, Province Of China, ensuring quality manufacturing standards.
Product Description
TE Connectivity 205-5270 is a silver uninsulated female spade connector designed for crimp termination, with specifications tailored to 0.8 mm thickness and 6.35 mm tab width. This product provides a secure and permanent electrical connection ideal for wire sizes ranging from 22 AWG to 16 AWG.
The connector is manufactured from high-quality brass material with tin plating, ensuring excellent conductivity and resistance to corrosion, vital in demanding electrical environments. Its straight orientation simplifies assembly and mating with compatible male spade terminals.
This uninsulated female spade connector allows easy visual inspection of the crimped joint for quality assurance. It is engineered for applications such as automotive wiring, industrial control systems, HVAC installations, communication equipment, and power supply connections, demonstrating versatile use across various electronics and electrical fields.
Installation is straightforward: insert the appropriate wire size (0.5 mm² to 1.5 mm²) into the connector tunnel and apply moderate pressure with a quality crimp tool or pliers to achieve a secure bond. This ensures a professional, consistent, and durable electrical union.
Manufactured in Taiwan, Province Of China, this product is part of the RS PRO series, signifying reliable quality and adherence to manufacturing excellence standards. Brass construction with tin plating enhances electrical performance and durability.
Crimp termination creates a secure and permanent electrical connection. Uninsulated design permits visual inspection of the wire connection. Compatible with wire gauges from 22 AWG to 16 AWG for versatile use. Straight male-to-female orientation supports ease of assembly and reliable mating.
Ideal for automotive, industrial control, HVAC, communication, and power supply applications. Overall length of 19.2 mm ensures appropriate reach and contact engagement.
EnvMart offers this highly dependable TE Connectivity RS PRO 205-5270 female Spade Connector suitable for professionals and DIY enthusiasts in electrical installation and maintenance contexts. Browse other electronics components and connectors from industry-leading brands on EnvMart for quality assurance and technical reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this spade connector is 0.8 mm thickness by 6.35 mm width.
It is compatible with wire sizes ranging from 0.5 mm² to 1.5 mm², which corresponds to 22 AWG to 16 AWG.
The overall length of this connector is 19.2 mm.
This model is constructed from brass with tin plating, enhancing its conductivity and corrosion resistance.
This connector uses crimp termination, allowing for a secure and permanent electrical connection.
This spade connector is uninsulated, which allows for visual inspection of the crimped connection.
The connector features a straight orientation, facilitating easy insertion and a secure fit on matching male spade terminals.
It is suitable for various applications including automotive wiring, industrial control systems, HVAC installations, communication equipment, and power supply connections.
This connector is a female spade connector.
This product originates from Taiwan, Province Of China.
The contact material of this connector is brass, which is plated with tin.
This connector is part of the RS PRO series from TE Connectivity.
