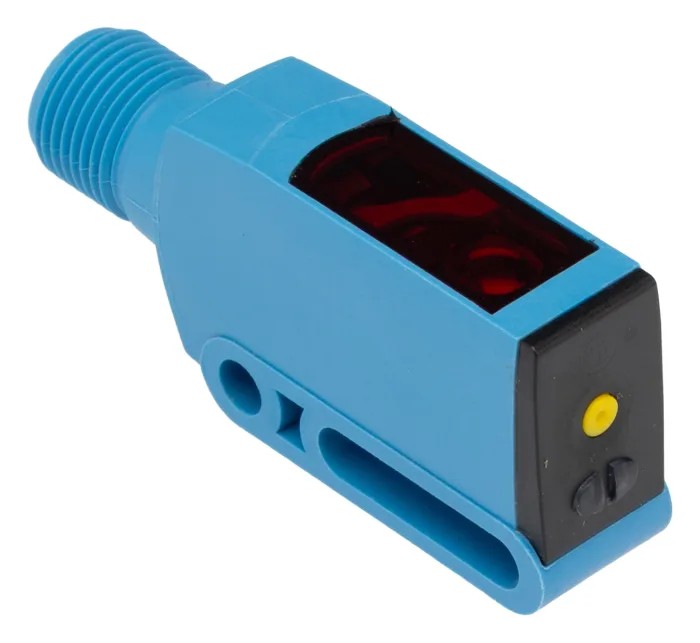

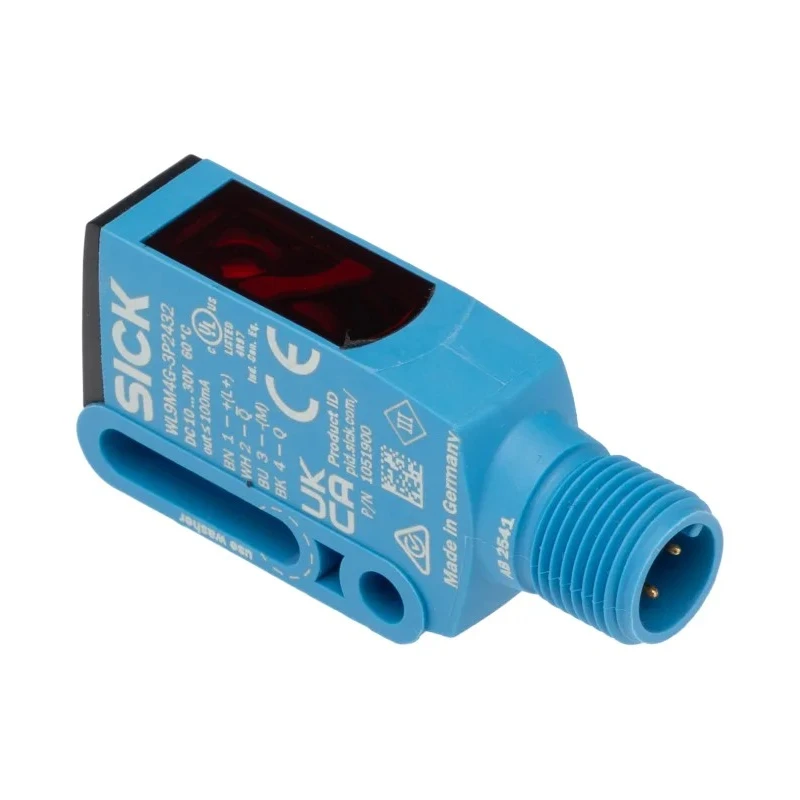

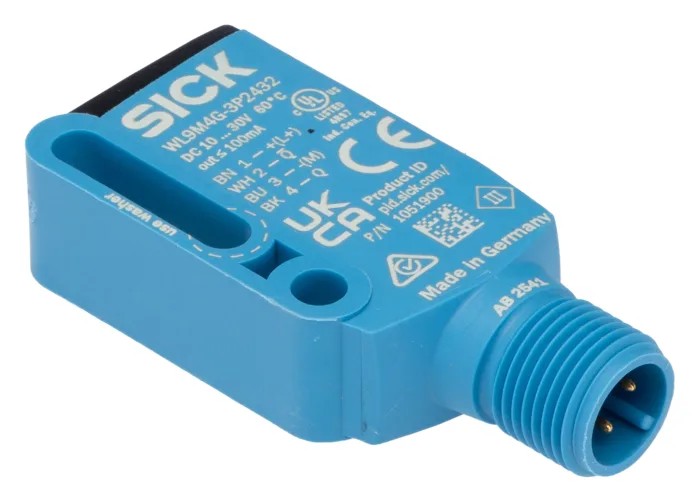

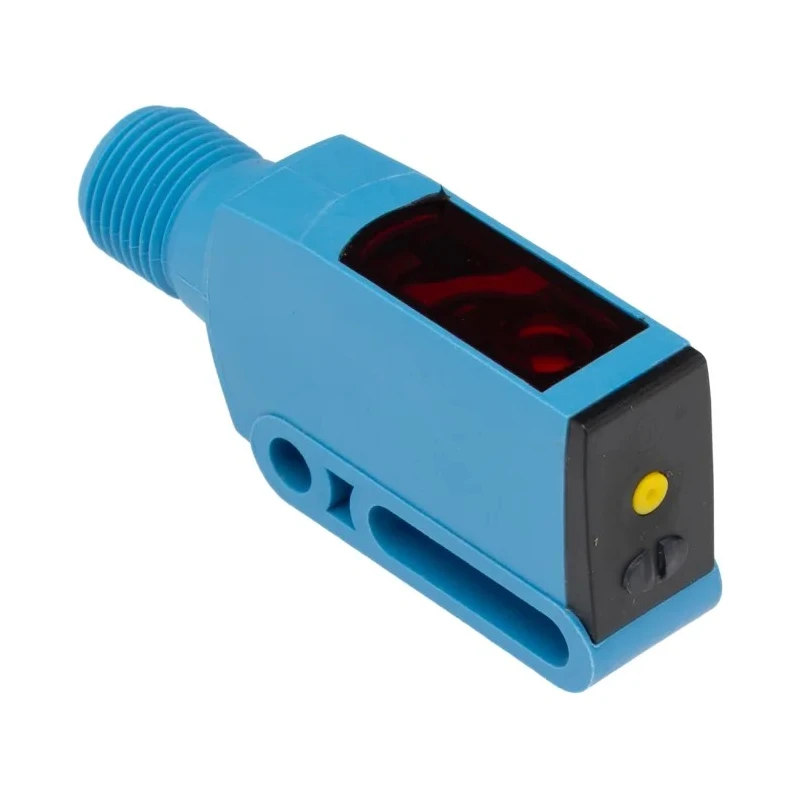

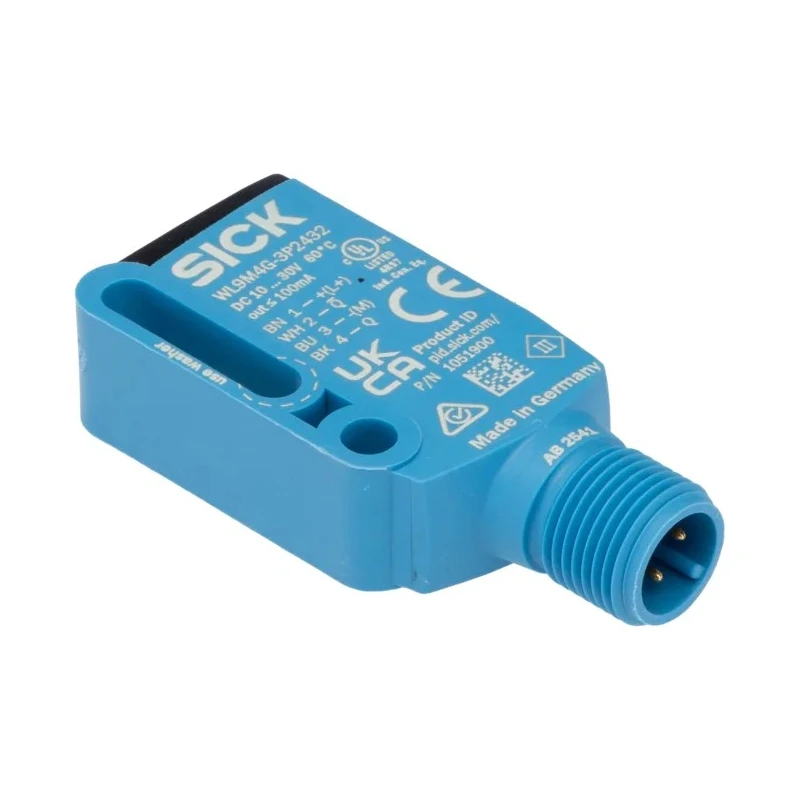

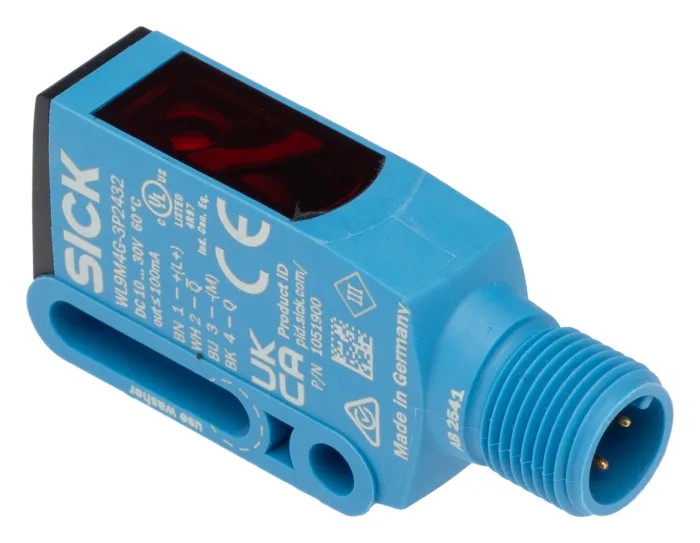

SICK Retroreflective Photoelectric Sensor Block Type 5 m Detection Range PNP Output IP66 IP67 IP69K WL9M4G-3P2432
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | LED |
| Detection range | 5 m |
| Model | WL9M4G-3P2432 |
| IP Rating | IP66, IP67, IP69K |
| Mount Type | Hole |
| Housing Material | Vistal Plastic |
| Output type | PNP |
| Series | W9 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 4-Pin Connector |
| Interface Type | 4-Pin, M12 Connector |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Standards/Approvals | EN IEC 63000, EU, RL |
| Sensor Style | Block |
Key Features
- This sensor uses a retro-reflective detection method for non-contact object detection.
- It supports a rapid 500 microseconds response time ideal for fast automation tasks.
- Designed with a 4-pin M12 connector for standardized and secure electrical connections.
- The device is housed in chemically resistant Vistal plastic and has ingress protection ratings of IP66, IP67, and IP69K.
- Capable of operating within a temperature range from -40°C to 60°C, suitable for demanding industrial conditions.
- Provides a PNP output type for easy integration with PLCs and industrial control systems.
- Maximum operating voltage is 30V DC with a maximum current of 100mA, compatible with common industrial power supplies.
- The sensor is certified to EN IEC 63000 standards, ensuring compliance with EU electromagnetic compatibility regulations.
Product Description
SICK WL9M4G-3P2432 Retroreflective Photoelectric Sensor is a block sensor designed for industrial automation requiring reliable object sensing over a 5-meter detection range. Operating with a PNP output and housed in durable Vistal plastic, it withstands harsh environments with IP66, IP67, and IP69K ingress protection ratings and temperature resilience from -40°C to 60°C.
The sensor employs a retro-reflective detection method enabling non-contact detection, ensuring rapid and precise response times of 500 microseconds for swift automation processes. It connects through a 4-pin M12 connector, a standard interface facilitating secure and straightforward integration with industrial control systems.
The unit supports a maximum DC voltage of 30V and can handle a maximum current of 100mA, making it compatible with prevalent industry power rails. The robust Vistal plastic casing offers chemical resistance and low electrical conductivity, allowing mounting near sensitive electronic components without interference.
Certified under EN IEC 63000 and compliant with relevant EU electromagnetic compatibility standards, this sensor is well-suited for use across various demanding industrial applications. Typical use cases include conveyor-line object presence detection, machine guarding and part counting systems, pick-and-place equipment requiring fast sensing, and packaging verification especially in washdown environments.
The sensor’s rugged design and fast response capabilities make it an excellent choice for manufacturing, material handling, packaging, and automated inspection industries requiring durable, high-performance sensor solutions.
Retro-reflective detection provides reliable non-contact sensing. 500 μs response time supports high-speed automation. 4-pin M12 connector ensures standardized wiring. Vistal plastic housing offers chemical resistance and electrical insulation.
IP66, IP67, and IP69K ratings protect against dust and washdown conditions. Operating temperature range from -40°C to 60°C suits harsh environments. PNP output aids easy system integration with PLCs. Meets EN IEC 63000 EMC compliance for industrial use.
Suitable for conveyor, packaging, and pick-and-place applications. Explore our extensive catalog of Photoelectric Sensors and industrial automation components at EnvMart to find suitable solutions for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 5 meters.
This model provides a PNP output type, facilitating easy integration with PLCs and industrial control systems.
The sensor has a rapid response time of 500 microseconds, making it suitable for fast automation tasks.
It operates within a temperature range from -40°C to 60°C, suitable for harsh industrial environments.
The sensor has ingress protection ratings of IP66, IP67, and IP69K, ensuring protection against dust and water.
It features a 4-pin M12 connector, which is a standardized interface for secure electrical connections.
The housing is made from Vistal plastic, which offers chemical resistance and low electrical conductivity.
The maximum operating voltage is 30V DC, and it can handle a maximum current of 100mA.
Yes, it is certified to EN IEC 63000 standards, ensuring compliance with EU electromagnetic compatibility regulations.
It employs a retroreflective detection method for non-contact object detection.
This sensor is suitable for applications such as conveyor-line object presence detection, machine guarding, and packaging verification.
The sensor is manufactured in Germany.
