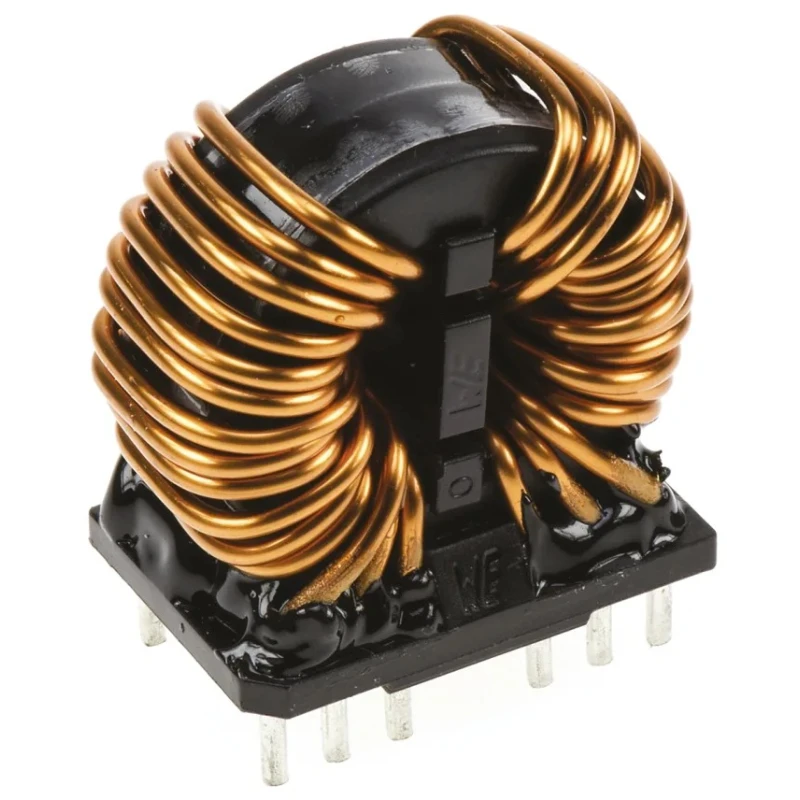

Wurth Elektronik 4.5 mH Nano Crystal Common Mode Choke, Max SRF 300 MHz, 18 A IDC, 4.2 mΩ RDC, Through Hole 7448051804
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 36mm |
| Brand | Wurth Elektronik |
| Height | 36mm |
| Length | 36mm |
| Depth | 23mm |
| Packaging | Tray & Carton |
| Mount Type | Through Hole |
| Series | WE-CMBNC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 50Hz |
| Core Material | Nano Crystal |
| Inductance | 4.5mH |
| Standards/Approvals | VDE, ENEC 10, REACH, RoHS |
| Maximum DC Current | 18A |
| Maximum DC Resistance | 4.2mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 300MHz |
| Lead Pitch | 25mm |
| Lead Diameter | 1.8mm |
| Small size Frequency range | 1 kHz-300 MHz |
| Wurth Elektronik 4.5 mH Nano Crystal Common Mode Choke, Max SRF | 300 MHz, 18 A Idc, 4.2 mΩ Rdc, WE-CMBNC |
Key Features
- Features a high permeability nano crystal core for improved electrical performance.
- Designed for through hole mounting with solder termination style.
- Maximum DC resistance of 4.2 mΩ ensures low power loss.
- Operates reliably at temperatures from -40°C to 125°C.
- Test frequency is 50 Hz with inductance tolerance between -30% to +50%.
- Available in tray and carton packaging for efficient handling.
- Broadband suppression from 1 kHz to 300 MHz for power electronics and noise filtering applications.
- Complies with VDE, ENEC 10, REACH, and RoHS standards.
Product Description
Wurth Elektronik 7448051804 is a 4.5 mH Nano Crystal Common Mode Choke designed for efficient suppression of electromagnetic interference in electronic circuits. Featuring a nano crystal core, it offers very high permeability and stable inductance values even at elevated temperatures up to 125°C. The choke is optimized for through hole mounting with solder termination and ensures minimal power loss due to its low maximum DC resistance of 4.2 mΩ.
This component is compact, with a 36 mm diameter and height, and a 23 mm depth, making it suitable for integration in a variety of power electronics applications. It operates effectively over a frequency range from 1 kHz to 300 MHz, providing broadband noise suppression. The choke is designed to handle a maximum DC current of 18 A, ensuring robust performance in demanding industrial environments.
Typical applications include power line input and output filters, radio interference suppression in motors, and general common mode noise suppression in electronic systems. The product complies with international standards such as VDE, ENEC 10, REACH, and RoHS, affirming its quality and environmental compliance.
Packaging in trays and cartons supports efficient inventory management and handling. Originating from China, this Wurth Elektronik common mode choke series WE-CMBNC is engineered for industrial and commercial electronic applications requiring reliable noise filtering and signal integrity.
High permeability nano crystal core for superior inductance stability. Through hole mount with solder termination for secure installation. Low DC resistance minimizes power loss during operation. Wide operating temperature range from -40°C to 125°C.
Compact size optimized for space-constrained electronic assemblies. Broad frequency suppression range suitable for power and signal lines. Compliance with multiple international safety and environmental standards. Suitable for power electronics, motor noise suppression, and EMI filtering.
Packaged for ease of handling and efficient manufacturing integration. Explore EnvMart for more Wurth Elektronik components and advanced electronic Inductors optimized for industrial, laboratory, HVAC, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode choke is 4.5 mH.
This common mode choke can handle a maximum DC current of 18 A.
The maximum self-resonant frequency for this choke is 300 MHz.
The choke has a diameter of 36 mm, a height of 36 mm, and a depth of 23 mm.
It operates reliably within a temperature range of -40°C to 125°C.
This model is designed for through hole mounting with solder termination.
The maximum DC resistance is 4.2 mΩ, ensuring low power loss.
It provides broadband suppression from 1 kHz to 300 MHz.
This common mode choke complies with VDE, ENEC 10, REACH, and RoHS standards.
The choke features a high permeability nano crystal core for improved electrical performance.
It is available in tray and carton packaging for efficient handling.
Typical applications include power line input and output filters, radio interference suppression in motors, and general common mode noise suppression in electronic systems.
