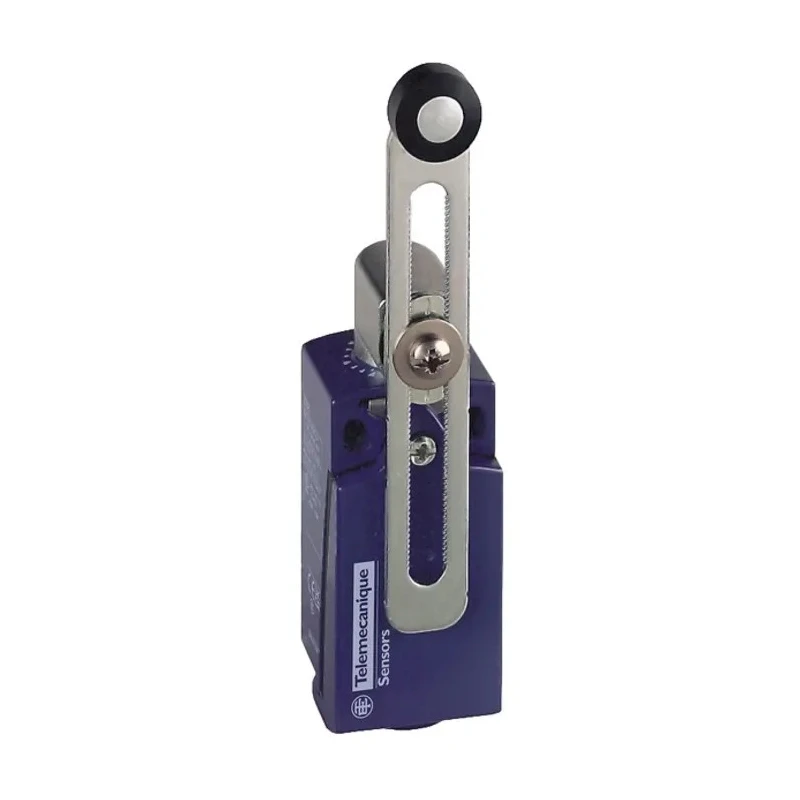

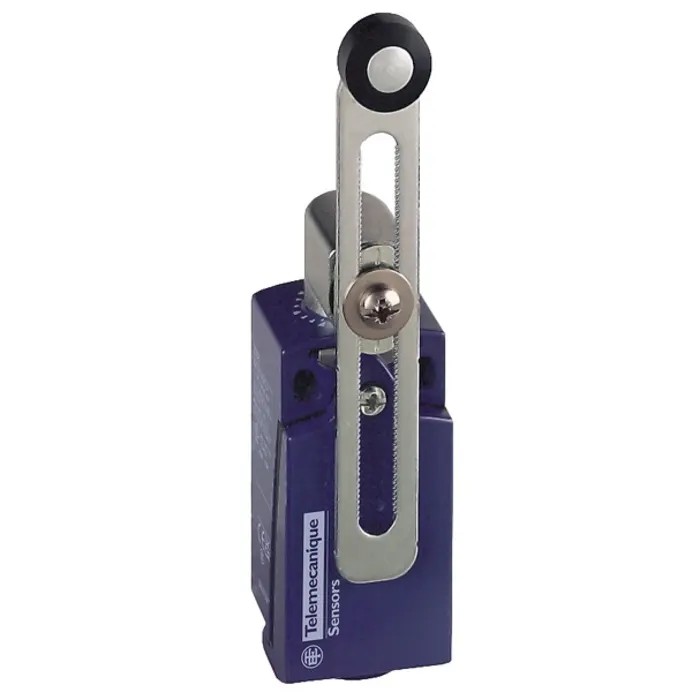

Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch 1 NO/1 NC, IP66/IP67, Zamak Housing, 240V AC XCKD2145N12
Specifications
| Country of Origin | France |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 65mm |
| Model | XCKD2145N12 |
| Depth | 30mm |
| IP Rating | IP66, IP67 |
| Width | 31mm |
| Housing Material | Zamak |
| Series | OsiSense XC |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Multi Directional |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Screw Clamp |
| Standards/Approvals | CSA, CE, EN, IEC, RoHS, UL |
| Operating Force | 0.1Nm |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 12.7 mm |
Key Features
- Equipped with 1 normally open and 1 normally closed contact configuration for versatile control options.
- Durable Zamak housing provides high mechanical resistance in harsh environments.
- IP66 and IP67 ratings ensure protection against dust ingress and water immersion.
- Capable of switching currents up to 10A at 240V AC and 250V DC.
- Supports multi-directional mounting to accommodate various installation geometries.
- Extends operational life with a mechanical life expectancy of 10,000,000 cycles.
- Operates efficiently within a temperature range from -25°C to 70°C for diverse industrial conditions.
- Features screw clamp terminals for secure and easy electrical connections.
Product Description
Telemecanique Sensors XCKD2145N12 OsiSense XC Series Roller Lever Limit Switch is a compact, electromechanical device designed for precise position detection and control in industrial automation and machinery. With a roller lever actuator providing snap action switching, it delivers rapid and reliable switching signals essential for machinery safety and process control.
Featuring robust IP66/IP67 ingress protection ratings, it is well-suited for environments with exposure to dust, moisture, and water jets, making it ideal for outdoor and harsh industrial settings. The switch housing crafted from durable Zamak metal alloy guarantees enhanced mechanical strength and longevity.
This limit switch is built to handle switching currents up to 10A at 240V AC or 250V DC, supporting substantial electrical loads commonly encountered in industrial applications. Its designed mechanical life of 10 million cycles minimizes maintenance interruptions, ensuring operational reliability over extended service periods.
The device operates efficiently across a broad temperature range from -25°C to 70°C, accommodating low-temperature applications and challenging climates. Installation flexibility is provided with multi-directional mounting options and a 12.7 mm conduit entry to fit standard cable gland configurations.
Applications include conveyor end-of-travel detection, door position sensing in outdoor enclosures, limit feedback on hydraulic cylinder stroking, and machine guard interlock monitoring. Its 1 normally open (NO) and 1 normally closed (NC) contact configuration offers versatile integration options for control circuits.
Equipped with 1 NO and 1 NC contacts for dual circuit control. Robust Zamak housing for enhanced durability. IP66/IP67 rating protects against dust and water ingress. Supports 10A switching current at 240V AC and 250V DC.
Multi-directional mounting adapts to various installation needs. Offers long mechanical life of 10 million cycles to reduce maintenance. Operates between -25°C and 70°C ensuring wide temperature range usability. Screw clamp terminals provide reliable electrical connections.
Conduit entry of 12.7 mm for secure cable management.
Designed and manufactured in France, this limit switch meets international standards including CSA, CE, EN, IEC, RoHS, and UL, ensuring compliance and safety in industrial deployments.
Explore more Limit Switch options to find products suited for your automation and safety requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle switching currents up to 10A at 240V AC and 250V DC, making it suitable for substantial electrical loads in industrial applications.
It has IP66 and IP67 ratings, providing protection against dust ingress and water immersion, suitable for harsh environments.
The mechanical life expectancy is rated at 10 million cycles, reducing maintenance interruptions and ensuring operational reliability over time.
This unit operates efficiently within a temperature range from -25°C to 70°C, accommodating various industrial conditions.
It features a roller lever actuator with snap action switching, which provides rapid and reliable switching signals for machinery control.
It supports multi-directional mounting, allowing for flexibility in installation to accommodate various geometries.
The dimensions are 65mm in length, 31mm in width, and 30mm in depth.
It is equipped with screw clamp terminals, ensuring secure and easy electrical connections.
The housing is made of Zamak, providing high mechanical resistance in harsh environments.
It meets several international standards, including CSA, CE, EN, IEC, RoHS, and UL, ensuring compliance and safety for industrial use.
The conduit entry is 12.7 mm, compatible with standard cable gland configurations for secure cable management.
It features a contact configuration of 1 normally open (NO) and 1 normally closed (NC), allowing for versatile control options.
