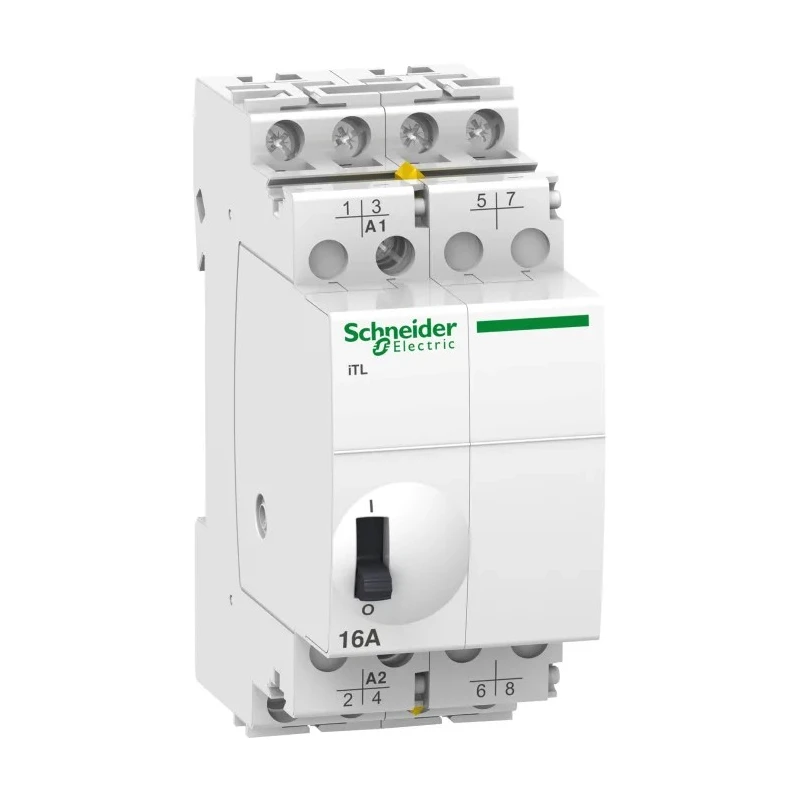

Schneider Electric DIN Rail Power Relay 4PST 16A Switching Current 415V AC 230V AC Coil A9C30814

Schneider Electric A9C30814 DIN Rail Power Relay is a high-quality 4PST power relay designed for use in electrical automation, industrial control, and lighting circuit applications. It operates with a coil voltage of 230 to 240V AC and can switch currents up to 16A at a voltage of 415V AC, supporting a wide range of industrial loads and systems.

This relay is part of the Acti9 iTL impulse relay series, which provides efficient control with zero energy consumption while maintaining two stable mechanical positions. The relay is triggered by impulse signals, making it ideal for lighting control systems activated by pushbuttons, compatible with incandescent, halogen low-voltage, fluorescent, and discharge lamps.

Designed for DIN Rail mounting, the compact relay has dimensions of 36 mm width, 84 mm height, and 6 mm length, facilitating easy installation in electrical panels with limited space. It features a 4-pole single-throw contact configuration enabling versatile switching arrangements.

The product complies with key international standards and certifications, including CEBEC, KEMA, CCC, EN 669-2-2, NF, GOST, EN 669-1, IMQ, and VDE, ensuring high reliability and safety in industrial installations.

The impulse duration is 1 second, providing secure switching during operation. Schneider Electric’s Acti9 iTL impulse relays are widely used in industrial, commercial, and residential settings for controlling lighting and other electrical loads efficiently, contributing to energy savings and operational reliability.

Operates with 230-240V AC coil voltage for reliable switching. 4-pole single-throw (4PST) contact configuration for complex circuits. Switching voltage rated up to 415V AC for diverse applications. Impulse duration of 1 second for secure switching performance.

DIN Rail mount for easy panel integration. Multiple international safety approvals and certifications. Part of the Acti9 iTL impulse relay series with zero power consumption when stable. Compact size of 36mm W × 6mm L × 84mm H for space efficiency.

Ideal for pushbutton lighting control including halogen and fluorescent lamps. Explore more Schneider Electric Power Relays and electrical components at EnvMart for industrial automation, electrical maintenance, and assembly solutions.
