Wurth Elektronik MMCX, SMA Series RG316 Coaxial Cable 152.4 mm Length 50 Ω 170 Vrms Rated RG316

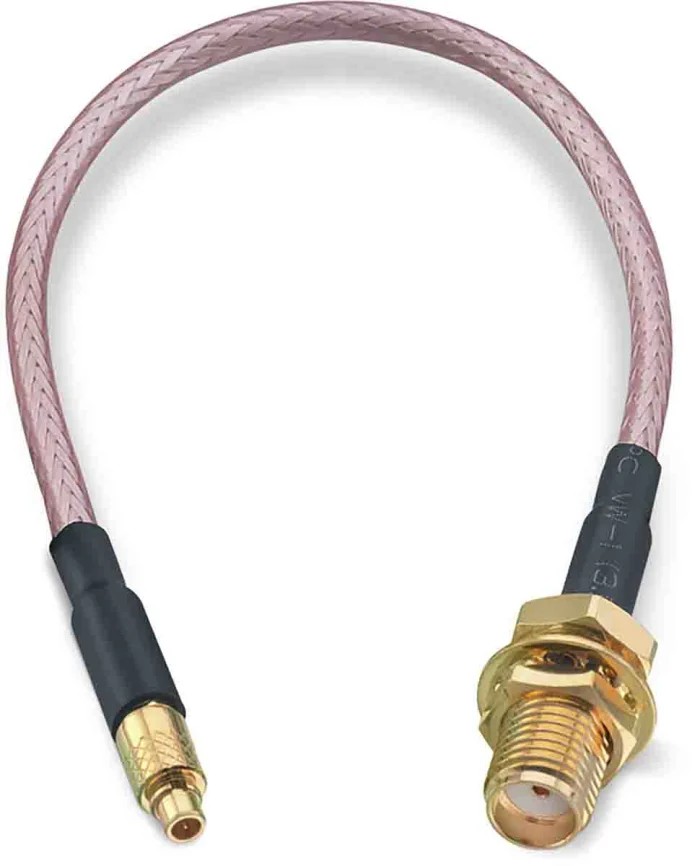

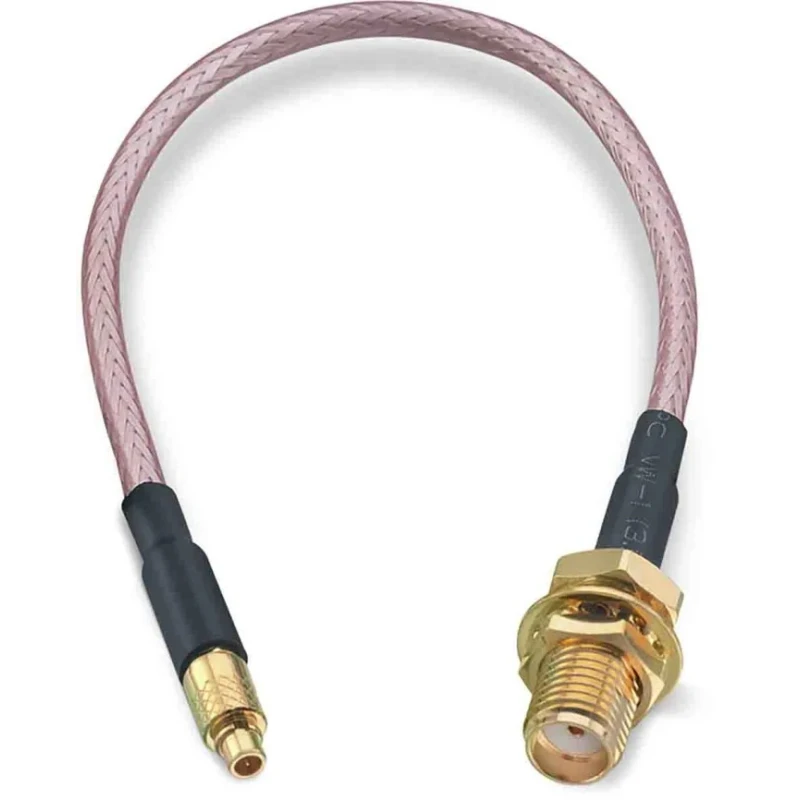

Wurth Elektronik RG316 model MMCX, SMA Series coaxial cable features a 152.4 mm length flexible cable terminated with an SMA Bulkhead Jack to MMCX Straight Plug. It is designed to support frequencies up to 6 GHz while maintaining a characteristic impedance of 50 Ω and a voltage rating of 170 Vrms. The cable's solid conductor is made from beryllium copper alloy, ensuring low resistive losses and durability.

The cable jacket is constructed from polytetrafluoroethylene in black, providing excellent chemical resistance and allowing the cable to operate across a temperature range from -55°C to 155°C, suitable for industrial, laboratory, HVAC, and telecommunications applications. Its outside diameter of 2.49 mm and minimum bend radius of 12.7 mm enable flexible installations in compact environments.

This terminated coaxial cable complies with RoHS, IEC, and MIL-STD-348 standards, emphasizing its quality and reliability. Its attenuation is minimal at 0.7 dB max, preserving signal integrity in high-frequency networks.

Ideal for use in RF communication systems, test equipment, sensors, and instrumentation where precise signal transmission is necessary. The cable's compact and flexible design supports seamless connectivity between equipment requiring MMCX and SMA connectors.

The cable length is precisely 152.4 mm to accommodate compact installations. Characteristic impedance of 50 Ω ensures minimal signal loss and impedance matching. Constructed with solid beryllium copper alloy conductor for reliable conductivity.

Polytetrafluoroethylene black jacket offers excellent thermal and chemical resistance. The cable supports frequency signals up to 6 GHz with a maximum attenuation of 0.7 dB. Operating temperature range from -55°C to 155°C suits harsh environments.

The flexible design includes an SMA Bulkhead Jack to MMCX Straight Plug configuration. Conforms to RoHS, IEC, and MIL-STD-348 standards assuring quality and compliance. Minimum bend radius of 12.7 mm facilitates ease of routing in confined spaces.

Produced in Taiwan, Province Of China, guaranteeing manufacturing quality. Explore the full range of Coaxial Cables and connectors at EnvMart for specialized electrical and electronic connectivity solutions.
