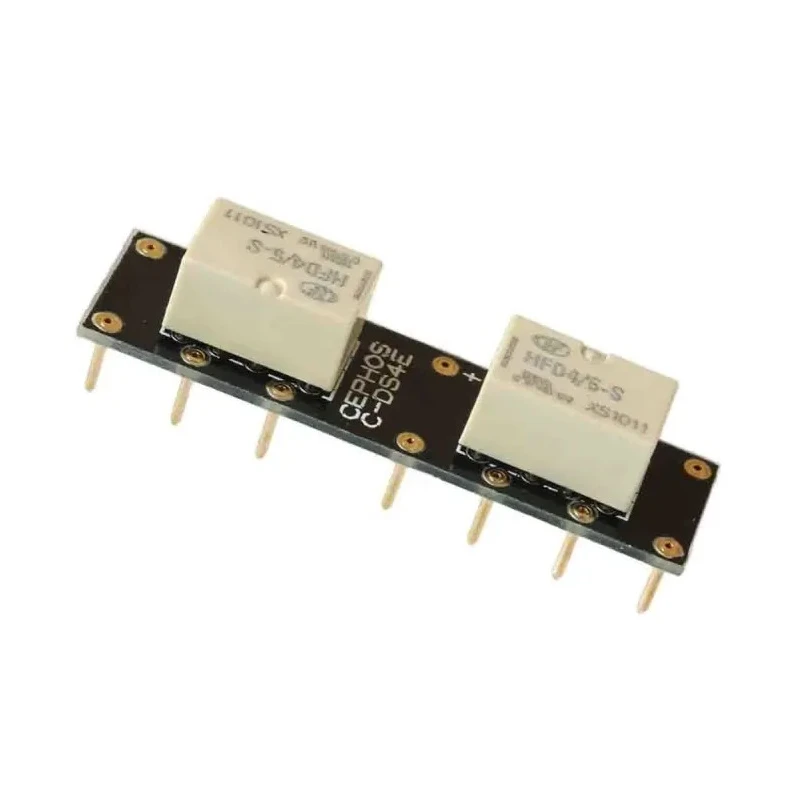

RS PRO PCB Signal Relay 24V DC Coil 2A Switching Current 4PDT Contact Configuration 193-5864

RS PRO 193-5864 PCB Signal Relay is a high-performance, non-latching relay with a 24V DC coil voltage and a 2A switching current, designed specifically for PCB mounting applications. Its 4PDT contact configuration enables switching of four separate circuits, making it ideal for complex electrical control systems. This relay is well suited for use in industrial machinery, automation systems, household appliances, and automotive electronics.

The relay features gold plated contacts which provide low contact resistance and reliable switching under varied electrical loads. Its compact size with dimensions of 15mm by 8.2mm by 7.4mm allows for installation in limited spaces on printed circuit boards. Operating temperature ranges from -40°C to 85°C, enabling robust performance in challenging environments.

Designed to handle switching voltages up to 250V AC and 220V DC with a switching power of 60W, the RS PRO 193-5864 provides a durable and safe solution for controlling electrical circuits. The coil requires a power of 140 mW with a coil resistance of 1028 Ω, ensuring efficient energization and quick response.

This model is a direct and reliable replacement for discontinued Panasonic DS4E, Omron G6A-434P, Fujitsu RA4, and IMO EN4-CW relays, making it a versatile option for maintenance and upgrades. The solder terminal type allows secure PCB mounting, facilitating steady electrical connections and easy integration in automated manufacturing lines.

Coil power consumption of 140 mW ensures efficient operation. Contact configuration is 4PDT providing four poles double throw switching. Designed for PCB mounting with solder terminal type for secure installation. Maximum switching voltages of 250V AC and 220V DC support versatile applications.

Operates reliably between -40°C and 85°C for industrial environments. Compact dimensions of 15mm length, 8.2mm height, and 7.4mm width save board space. Gold plated contacts minimize contact resistance at 100 mΩ ensuring superior conductivity.

Coil resistance rated at 1028 Ω for accurately controlled coil excitation. Compatible replacement for Panasonic DS4E, Omron G6A-434P, Fujitsu RA4, and IMO EN4-CW relays.

This RS PRO Signal Relay is ideal for use in electronics manufacturing, industrial automation, electrical control panels, laboratory instruments, and automotive electronics where reliable circuit switching is critical. Its compact footprint and robust specifications make it essential for engineers designing or maintaining switching systems.
