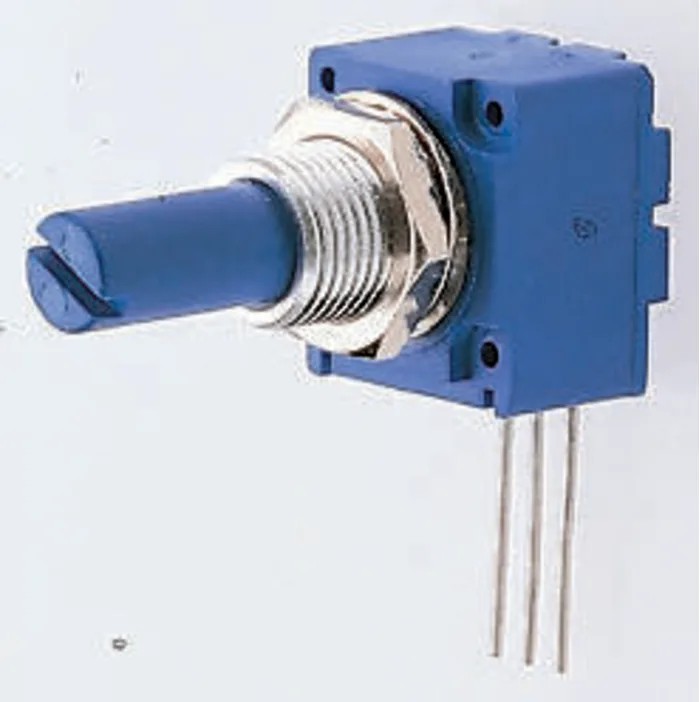

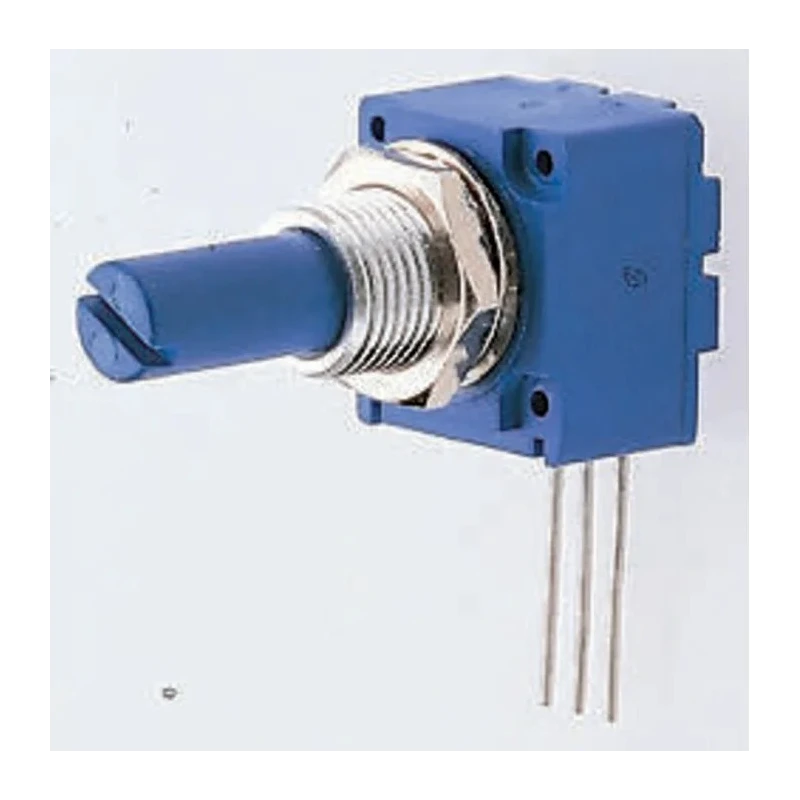

Bourns Rotary Potentiometer 1 Turn 1 Gang Panel Mount 0.5W Power Rating Linear Taper Conductive Plastic 91A1A-B24-B15L
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Bourns |
| Length | 41.91mm |
| Model | 91A1A-B24-B15L |
| Mount Type | Panel Mount |
| Series | 91 |
| Power Rating | 0.5W |
| Maximum Operating Temperature | 125°C |
| Actuator Type | Slotted Shaft |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 6.35mm |
| Shaft Length | 19.05mm |
| Adjustment Type | Side |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Termination Style | PC Pin |
| Mounting Hole Diameter | 9.525 mm |
| Number of Gangs | 1 |
| Tolerance ± | 20% |
| Element Material | Conductive Plastic |
| Potentiometer Type | Rotary |
| Number of Turns | 1 |
| Electrical Taper | Linear |
Key Features
- Features a rotational range of 1 turn and a linear electrical taper.
- Utilizes conductive plastic as the resistive element for durability and accurate performance.
- Shaft diameter is 6.35 mm with a slotted shaft actuator type.
- Mounting is via panel mount with PC pin termination style for reliable installation.
- Operates reliably between -40°C to 125°C, suitable for a wide range of industrial applications.
- Includes metal lock washer and nut for secure fitting.
- Complies with RoHS standards, ensuring environmental compliance.
- Manufactured in Mexico with high mechanical life expectancy of 100,000 cycles.
Product Description
The Bourns 91A1A-B24-B15L Rotary Potentiometer is a high-quality, panel mount 1-turn, 1-gang variable resistor featuring a conductive plastic resistive element and a linear taper. Designed for precision control in electrical circuits, it supports a power rating of 0.5W and features a 6.35 mm diameter slotted shaft actuator for effortless adjustment.
With a shaft length of 19.05 mm and an overall length of 41.91 mm, it mounts securely using a panel mount design with PC pin termination style. The device is engineered to operate across a wide temperature range from -40°C to 125°C, making it ideal for industrial, laboratory, and commercial electronic applications.
The potentiometer’s robust conductive plastic element ensures long mechanical life - rated for up to 100,000 cycles - while the device’s 9.525 mm mounting hole diameter and ±20% tolerance guarantee dependable performance and compatibility in diverse setups.
It comes standard with a metal lock washer and nut to secure mounting, enhancing durability and stability in demanding environments. The RoHS-compliant potentiometer is manufactured in Mexico and belongs to the Bourns 91 Series, which offers various pin-out configurations and resistance track options including linear and audio (log).
Rotary potentiometer with 1 turn and 1 gang for precise resistance control. Conductive plastic resistive element for enhanced durability and accuracy. Slotted shaft actuator with 6.35 mm diameter for easy adjustment. Panel mount type with PC pin termination for solid installation.
Wide temperature range operational capability from -40°C to 125°C. High mechanical life of 100,000 cycles ensures longevity. Includes metal lock washer and nut for secure mounting. RoHS compliant to meet environmental standards.
This potentiometer is suitable for electronic assembly in industrial equipment, control panels, and other applications requiring reliable variable resistance adjustment. Explore more quality electronic components and Potentiometers in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 0.5W.
It operates reliably between -40°C to 125°C, making it suitable for various industrial applications.
It utilizes a conductive plastic resistive element, which enhances durability and accuracy.
The shaft diameter is 6.35 mm and it features a slotted shaft actuator type for easy adjustment.
The shaft length is 19.05 mm.
It features a panel mount design with PC pin termination style for secure installation.
The tolerance is ±20%.
This model has a rotational range of 1 turn.
The mounting hole diameter is 9.525 mm.
It has a high mechanical life expectancy rated for up to 100,000 cycles.
Yes, it complies with RoHS standards, ensuring environmental compliance.
It is manufactured in Mexico.
