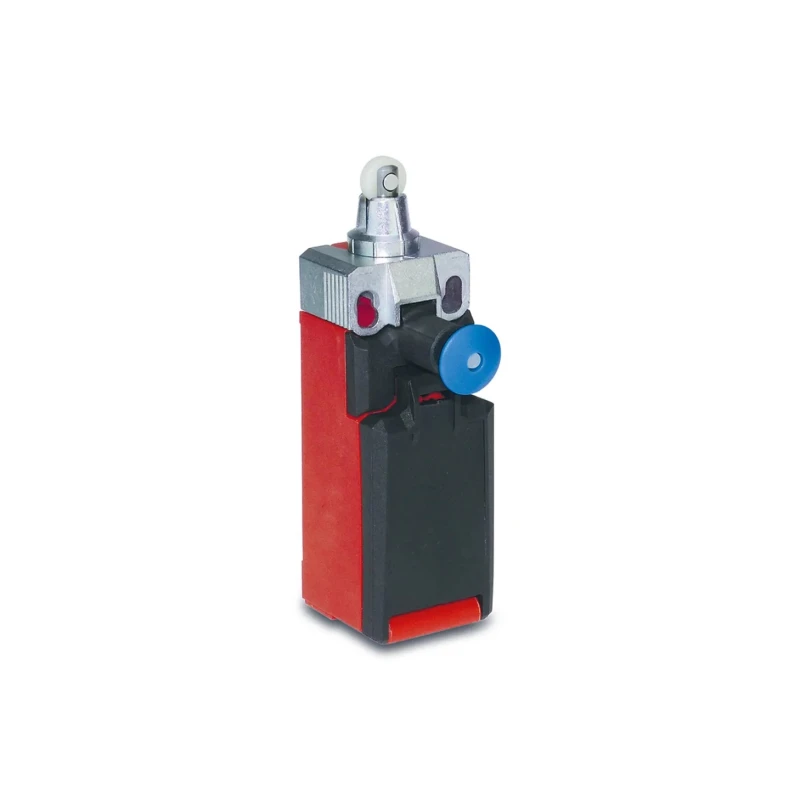

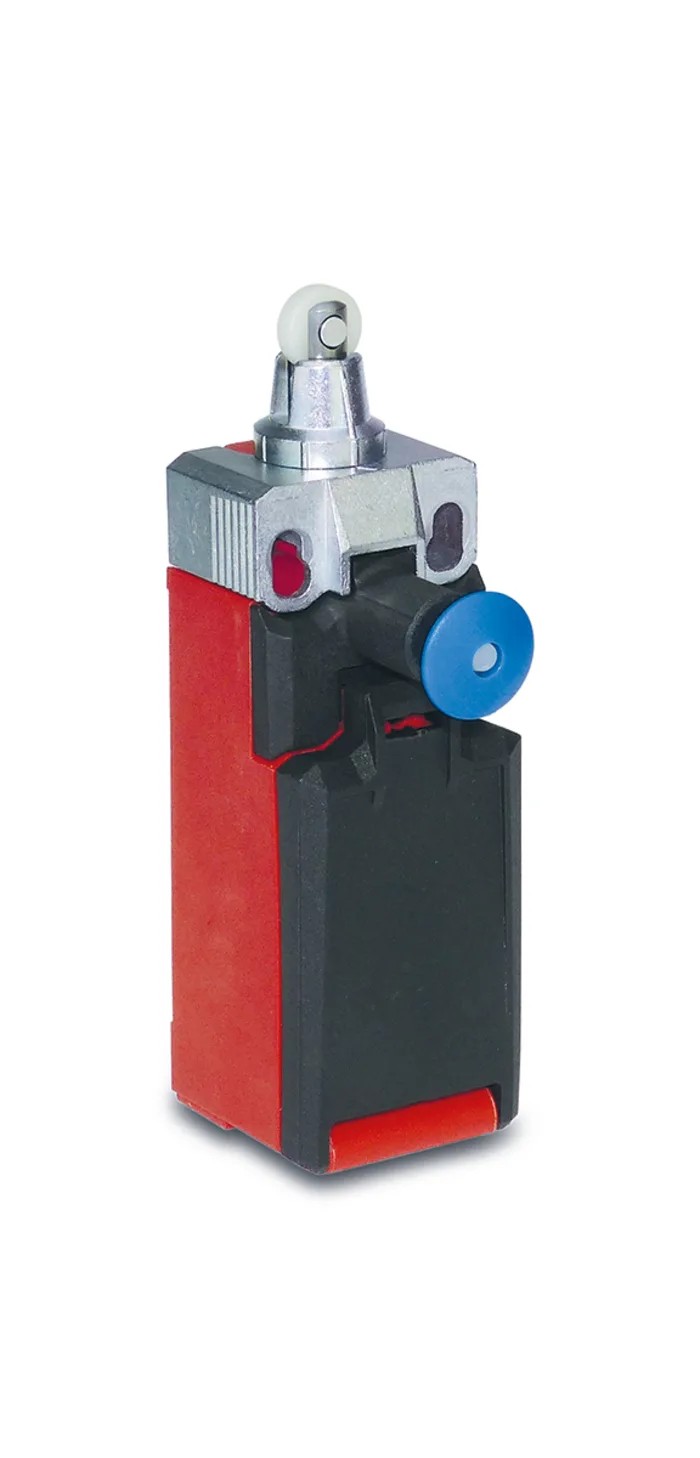

Bernstein AG I81 Series Roller Lever Limit Switch DPST IP67 IP66 Fibreglass Reinforced Thermoplastic Housing 240V 6083000243

Bernstein AG 6083000243 Roller Lever Limit Switch is a part of the I81 series designed for high reliability and modular flexibility in industrial automation and control systems. This DPST (double pole single throw) limit switch features a robust roller lever actuator that ensures precise position switching. With IP67 and IP66 ratings, the switch is well-protected against dust and water ingress, making it suitable for demanding environments.

The housing is made from fibreglass reinforced thermoplastic, providing exceptional durability and resistance to mechanical stress. The slow action contacts enable switching currents up to 5A, suitable for controlling various electrical loads. The screw terminal connection ensures secure and reliable wiring.

The switch is engineered to operate within a temperature range from -30°C to +75°C, allowing for use in a wide variety of industrial and commercial settings. Its mechanical lifespan is rated at 100,000 cycles, supporting prolonged operational life and minimizing maintenance requirements.

The I81 series incorporates a metal actuator locking mechanism and metal mounting clip for enhanced robustness. The integrated latch function requires manual reset by pulling a blue button after activation, adding a layer of operational safety. The actuator lever is adjustable, with 8 positions in 45° increments, providing customization to specific operational needs.

Mounting orientation is via screws, and the device supports an M20 conduit entry for standard cable installations. This makes it ideal for industrial automation, manufacturing, machine control, HVAC systems, and process control applications.

The product is made in Germany, ensuring high standards of quality and compliance with RoHS directives. The design is suitable for use in industrial, laboratory, and construction environments where reliable position detection and safety controls are critical.

The actuator type is a durable roller lever ensuring reliable operation. Offers protection ratings of IP67 and IP66 suitable for harsh environments. Contact configuration is double pole single throw (DPST) for versatile switching applications.

Constructed with fibreglass reinforced thermoplastic housing for high mechanical strength. Slow action contacts support switching currents up to 5A. Terminal connections are via screw type for secure wiring. Mechanical service life rated for 100,000 switching cycles ensuring long-term reliability.

Operating temperature range from -30°C to +75°C accommodates varied industrial conditions. Includes integrated latch function with manual reset via blue button for safety and control. Mounting is screw based with M20 conduit entry for standard installation.
