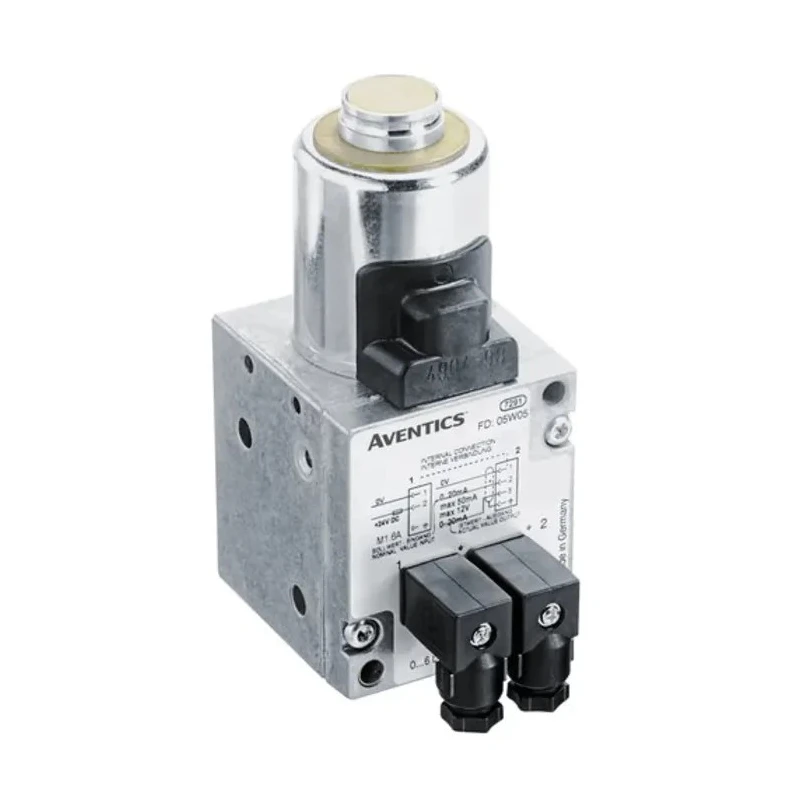

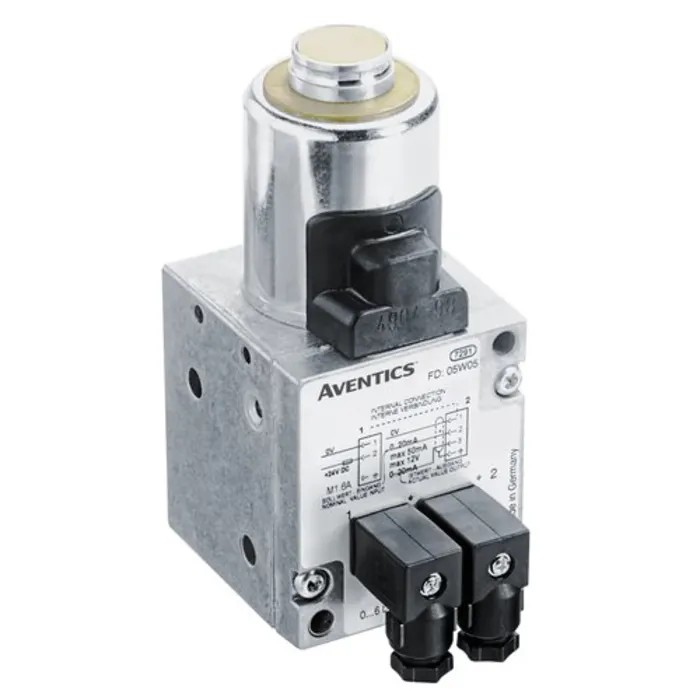

EMERSON ? AVENTICS Pneumatic Solenoid Valve 3/3 Solenoid Spring ISO NPTF 1/4 in Port 24V DC Series ED05

EMERSON AVENTICS ED05 Pneumatic Solenoid Valve is engineered for reliable and precise control of pneumatic flow in industrial applications. The valve features a 3/3 solenoid and spring actuation design, allowing efficient switching with manifold mounting capability. Its die cast zinc body ensures robustness while the rubber seals provide dependable tightness and durability under various operating conditions.

This valve supports a port size of 1/4 inch and conform to ISO and NPTF connection thread standards suitable for broad industrial integration. It permits a maximum operating pressure of 11 bar and can handle pilot pressures ranging from 0 to 10 bar, while delivering a significant maximum flow rate of 1000 liters per minute.

The product operates at 24V DC voltage with a C plug type electrical connection, enabling straightforward electrical interfacing. Designed to operate in ambient conditions spanning from 0°C to 70°C, it is RoHS compliant for environmental safety. The valve does not possess hazardous area certifications, so it is recommended for general industrial use.

This solenoid valve series ED05 includes a poppet type valve technology ideal for analogue control applications within 0-10V, 0-20mA, or 4-20mA control ranges with low hysteresis below 0.06 bar. It requires dry, oil-free air filtered to 50 µm to ensure optimal performance and longevity.

Typical use cases include pneumatic control systems in manufacturing plants, automation equipment, processing machinery, laboratory setups, and HVAC systems where precise pneumatic actuation is essential. Its manifold mount assembly simplifies integration in compact pneumatic systems.

Operates with 24V DC solenoid and spring actuator for efficient flow control. 3/3 valve function with three ports and positions provides versatile application. Robust die cast zinc housing and rubber sealed construction ensure durability.

Maximum operating pressure rated at 11 bar with pilot pressure up to 10 bar. High flow capability of 1000 L/min suitable for demanding pneumatic systems. Conforms to ISO and NPTF thread standards with 1/4 inch port size.

RoHS compliant with standard C plug electrical connection type. Operating temperature range from 0°C to 70°C for diverse industrial environments. Explore more Pneumatic Solenoid Valves and components across the Industrial Valves & Valve Fittings category at EnvMart to meet your automation and fluid control needs.
