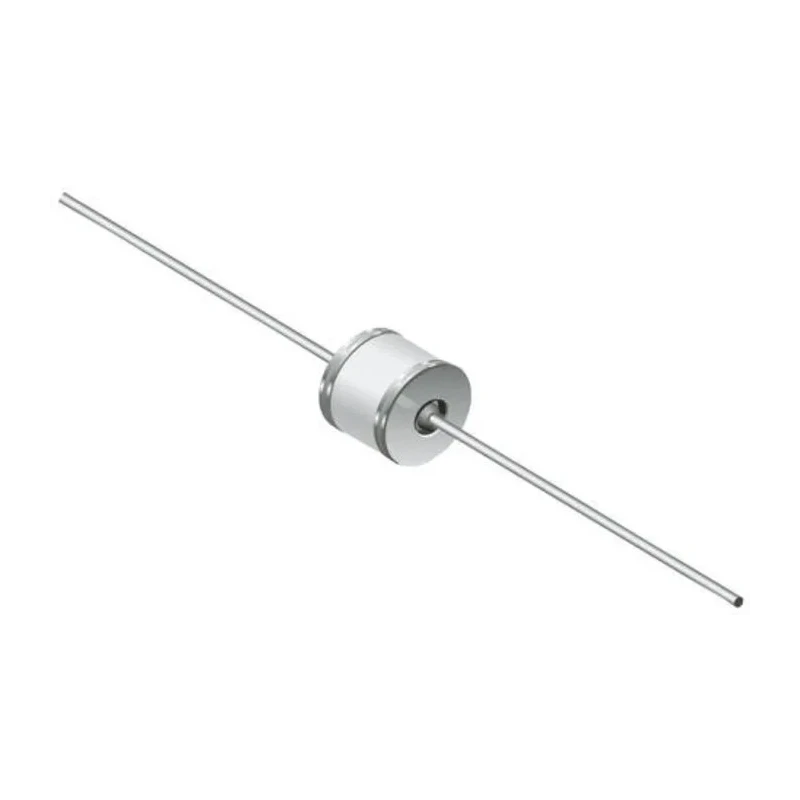

Bourns Gas Discharge Tube, Through Hole Mount, 230 V DC, 25 kA Surge Current, 2027-23-BLF
Specifications
| Country of Origin | Costa Rica |
|---|---|
| Brand | Bourns |
| Height | 8mm |
| Length | 9.5mm |
| Model | 2027-23-BLF |
| Depth | 6mm |
| Mount Type | Through Hole |
| Series | 2027 |
| Maximum Operating Temperature | 155°C |
| Capacitance | 1pF |
| Minimum Operating Temperature | -55°C |
| Suppressor Type | Gas Discharge Tube |
| Maximum Voltage | 230V |
| Maximum Surge Current | 25kA |
| DC Spark Over Voltage | 230V dc |
| Impulse Spark Over Voltage | 675V |
Key Features
- High surge current rating of 25 kA ensures excellent transient voltage protection.
- Through hole mounting for reliable PCB integration.
- Stable breakdown voltage with DC spark over voltage rated at 230 V.
- Compact size with dimensions 9.5 mm length, 8 mm height, and 6 mm depth.
- Wide operating temperature range from -55°C to 155°C for harsh conditions.
- Impulse spark over voltage is 675 V for high voltage transient protection.
- Minimal insertion loss due to low capacitance of 1 pF.
- Complies with RoHS, UL, IEC, and other relevant standards.
Product Description
Bourns model 2027-23-BLF is a high-performance gas discharge tube designed for surge protection applications where reliability and consistent operation are critical. This through-hole mounted gas discharge tube operates with a maximum surge current of 25 kA and a DC spark over voltage rating of 230 V, making it suitable for protecting sensitive electronics against transient voltages.
The device is compact with a length of 9.5 mm, height of 8 mm, and depth of 6 mm, allowing easy integration into printed circuit boards. It operates reliably over a wide temperature range from -55°C to 155°C, suitable for demanding industrial, telecommunications, automotive, and aerospace environments where temperature variations are common.
The 2027 series tubes maintain stable breakdown voltages throughout their service life and feature a low capacitance of just 1 pF, minimizing signal distortion and insertion loss in circuits. The impulse spark over voltage is rated at 675 V, ensuring protection against sudden high-voltage spikes.
Bourns gas discharge tubes comply with multiple international standards, including RoHS, Telcordia GR 1361, UL, IEC 60068-1, ITU-T CCITT K.12, IEEE C62.31, and RUS PE-80. These certifications embody the product's quality, safety, and efficacy for industrial and commercial applications.
High surge current rating of 25 kA ensures excellent transient voltage protection. Through hole mounting for reliable PCB integration. Stable breakdown voltage over product lifespan. Wide temperature tolerance from -55°C to 155°C.
Low capacitance of 1 pF minimizes insertion loss. Compliant with RoHS, UL, IEC and other international standards. Suitable for telecommunications, industrial, automotive, aircraft electronics, and commercial systems. Compact dimensions allow versatile circuit placement.
Manufactured in Costa Rica under stringent quality controls.
This Gas Discharge Tube is essential for protecting electronic equipment against voltage surges, thereby enhancing safety and longevity of electrical systems in industrial and commercial environments. Browse more about Bourns and gas discharge protections with EnvMart for reliable and certified electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current rating of this model is 25 kA, ensuring excellent transient voltage protection for sensitive electronics.
The DC spark over voltage rating for this gas discharge tube is 230 V, making it suitable for protecting against transient voltages.
This model has dimensions of 9.5 mm in length, 8 mm in height, and 6 mm in depth, allowing for compact integration into PCBs.
It operates over a wide temperature range from -55°C to 155°C, suitable for harsh industrial and commercial environments.
This model features a through hole mounting type, ensuring reliable integration into printed circuit boards.
The capacitance of this gas discharge tube is 1 pF, which helps minimize insertion loss and signal distortion in circuits.
The impulse spark over voltage for the 2027-23-BLF is rated at 675 V, providing protection against high-voltage transients.
It complies with several international standards including RoHS, UL, IEC 60068-1, and others, ensuring quality and safety.
This gas discharge tube is manufactured in Costa Rica under stringent quality controls.
It is suitable for applications in telecommunications, industrial, automotive, aircraft electronics, and commercial systems.
The 2027 series tubes maintain stable breakdown voltages throughout their service life, ensuring consistent operation.
This model belongs to the 2027 series of gas discharge tubes, designed for surge protection applications.
