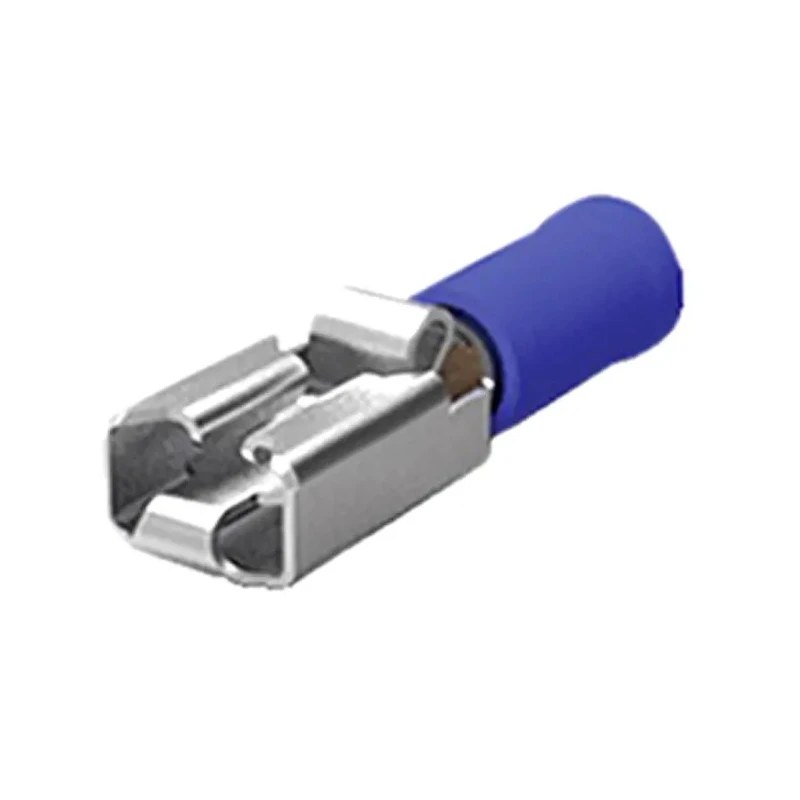

TE Connectivity PIDG Positive Lock .250 EX Blue Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 165536-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Orientation | Straight |
| Model | 165536-1 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 24.3mm |
| Contact Material | Brass |
| Series | PIDG Positive Lock .250 EX |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 15.5AWG |
| Maximum Wire Size AWG | 13.5AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Features a positive locking system for secure mechanical connection.
- Copper sleeve improves wire insulation support after crimping.
- Funnelled wire entry allows easy and fast wire insertion.
- Serrations in the crimp barrel ensure maximum contact and tensile strength.
- Blue nylon insulation provides resistance against hydrocarbons and high dielectric strength.
- Suitable for use in electrical, industrial, HVAC, appliance, power supply, lighting, and automotive applications.
Product Description
TE Connectivity 165536-1 PIDG Positive Lock .250 EX Blue Insulated Female Spade Connector offers precision-engineered crimp connections for robust and uniform terminations in demanding circuits with vibration or mechanical strain.
This connector features a high conductivity tin-plated brass contact body combined with a copper sleeve and blue nylon insulation for enhanced durability and electrical performance.
The crimp barrel serrations provide excellent contact reliability and tensile strength, while the positive locking system ensures secure mating with a spring and latch mechanism to prevent disconnection under strain.
The funnelled wire entry facilitates rapid wire insertion improving assembly efficiency, and the nylon insulation resists hydrocarbons such as greases and oils, making it suitable for harsh industrial environments.
Typical applications include electrical components, instrumentation, industrial machines, HVAC systems, household appliances, power supplies, lighting solutions, and automotive wiring systems.
Positive locking mechanism prevents accidental disconnection. Copper sleeve supports wire insulation post-crimp. Funnelled wire entry accelerates wire insertion. Serrated crimp barrel maximises electrical contact and mechanical strength.
Durable nylon insulation withstands hydrocarbons and electrical stresses. Ideal for use in industrial, commercial, and automotive electrical assemblies. This product is part of the TE Connectivity PIDG Positive Lock .250 EX series, trusted for high-quality wire termination solutions.
Explore more high-performance connectors and components from TE Connectivity in the Electronics Components section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this connector is 6.35 x 0.81 mm.
This model can accommodate a maximum wire size of 2.5 mm² or 13.5 AWG.
It uses a crimp termination type for secure connections.
The contact body is made of brass and is tin-plated for enhanced conductivity.
The insulation material is nylon, which provides resistance against hydrocarbons and electrical stresses.
The overall length of this connector is 24.3 mm.
It is suitable for use in electrical, industrial, HVAC, appliance, power supply, lighting, and automotive applications.
Yes, it features a positive locking system to prevent accidental disconnection under strain.
The minimum wire size is 1.5 mm² or 15.5 AWG.
The orientation of this connector is straight.
This connector is manufactured in India.
This connector is part of the PIDG Positive Lock .250 EX series.
