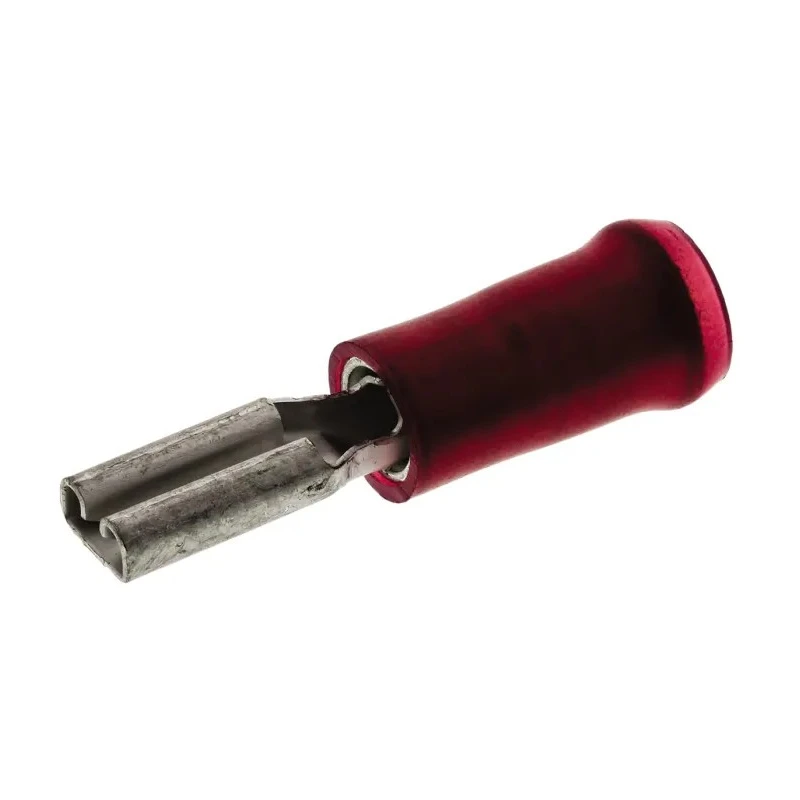

TE Connectivity PIDG FASTON .110 Red Insulated Female Spade Connector Crimp 2.79 x 0.3 mm Tab Size 22 AWG to 16 AWG 165563-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Straight |
| Model | 165563-1 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 19.8mm |
| Contact Material | Brass |
| Series | PIDG FASTON .110 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 2.79mm |
| Tab Thickness | 0.3mm |
| Tab Size | 2.79 x 0.3 mm |
Key Features
- Red insulated sleeve made of durable nylon for electrical insulation and identification.
- Precision-formed brass contact with tin plating ensures reliable conductivity and corrosion resistance.
- Suitable for crimp termination with a straight orientation for ease of use.
- Compatible with wire sizes from 0.3 mm² (22 AWG) to 1.5 mm² (16 AWG).
- Compact overall length of 19.8 mm fits tight electrical assemblies.
- Designed for quick disconnect applications to improve manufacturing efficiency.
- Meets industry requirements though no specific standards approvals are listed.
- PIDG FASTON .110 series ensures consistent, high-quality connections in electrical systems.
Product Description
TE Connectivity 165563-1 PIDG FASTON .110 Red Insulated Female Spade Connector is engineered for reliable crimp wire connections in industrial and electronics applications. Featuring a tab size of 2.79 x 0.3 mm, this connector supports wire gauges ranging from 22 AWG to 16 AWG, with an overall length of 19.8 mm. The contact is made of brass with tin plating, providing excellent electrical conductivity and corrosion resistance.
The connector includes a red nylon insulated sleeve, offering secure insulation and distinct color coding commonly used for 0.3 to 1.5 mm² wire sizes. Its straight orientation allows for easy mating with compatible male terminals, facilitating efficient assembly processes in manufacturing, automotive, and equipment wiring.
These PIDG insulated FASTON quick disconnect receptacle terminals are widely used in industrial, electronic, and power connector systems requiring dependable, repeatable connections. The crimp barrel is precision formed with serrations to maximize tensile strength and electrical contact quality after crimping.
Red nylon insulation provides enhanced electrical protection and wire size identification. Brass contact with tin plating ensures durability and corrosion resistance. Compatible with 22 AWG to 16 AWG wires for versatile applications.
Overall length of 19.8 mm suits compact wiring layouts. Straight contact orientation for standard mating connections. Quick disconnect feature improves production speed and maintenance efficiency. No explicit certification but meets common industry usage standards.
The TE Connectivity PIDG FASTON series is ideal for use in electrical and electronic connectors across automotive, industrial automation, manufacturing, and HVAC sectors. This product is supplied new, ready-crimped, and packaged in bags for ease of handling and inventory management.
Explore EnvMart’s broad selection of high-quality terminals and connectors to match your industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 0.3 mm² (22 AWG) to 1.5 mm² (16 AWG).
The overall length of this connector is 19.8 mm, making it suitable for compact wiring layouts.
The contact is made of brass with tin plating, which provides excellent electrical conductivity and corrosion resistance.
It features a red nylon insulated sleeve, which offers electrical insulation and identification.
The tab size is 2.79 x 0.3 mm, designed for compatibility with standard male terminals.
The contact orientation is straight, allowing for easy mating with compatible male terminals.
This model uses crimp termination, which facilitates secure wire connections.
It is suitable for use in automotive, industrial automation, manufacturing, and HVAC sectors requiring reliable electrical connections.
This connector is female, designed to mate with male terminals.
The serrations are designed to maximize tensile strength and electrical contact quality after crimping.
The country of origin for this connector is India.
While no specific standards approvals are listed, it meets common industry usage standards for electrical connections.
