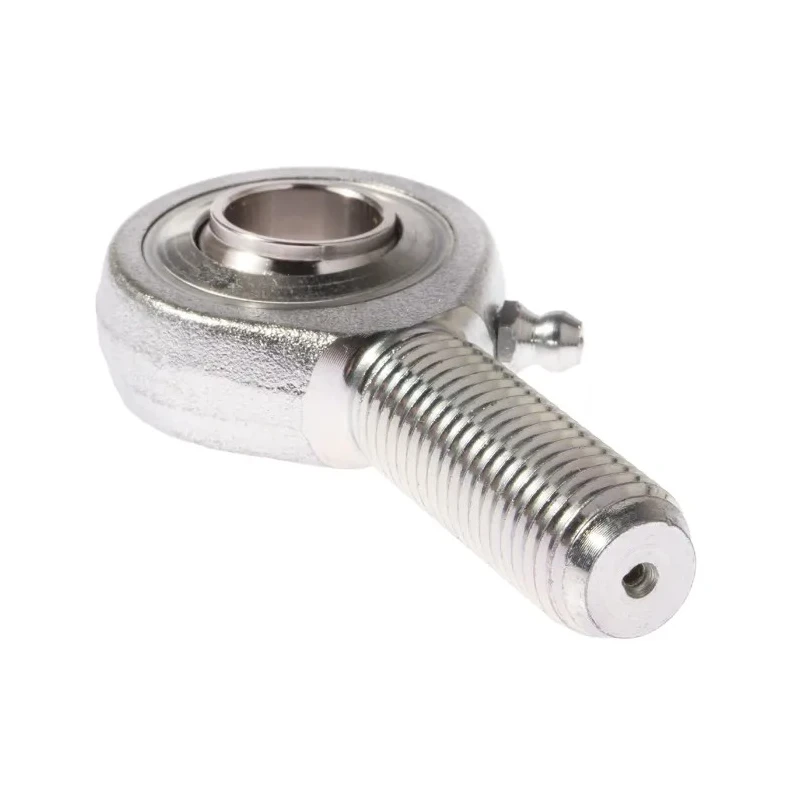

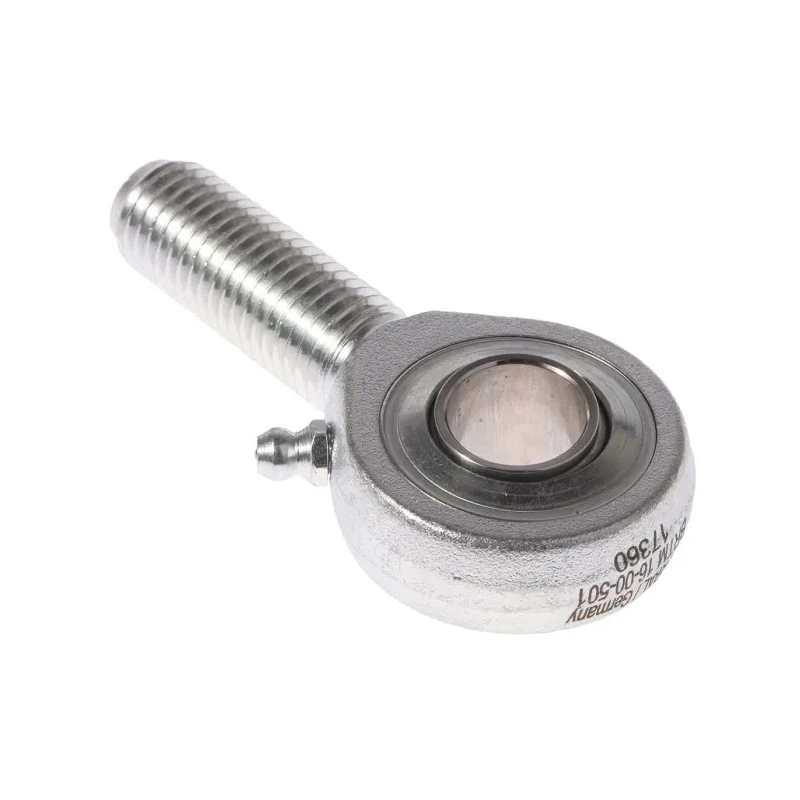

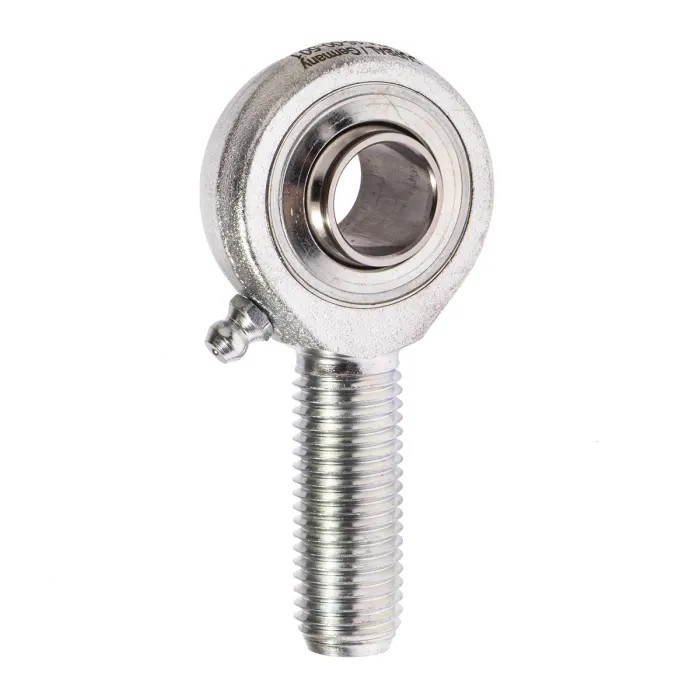

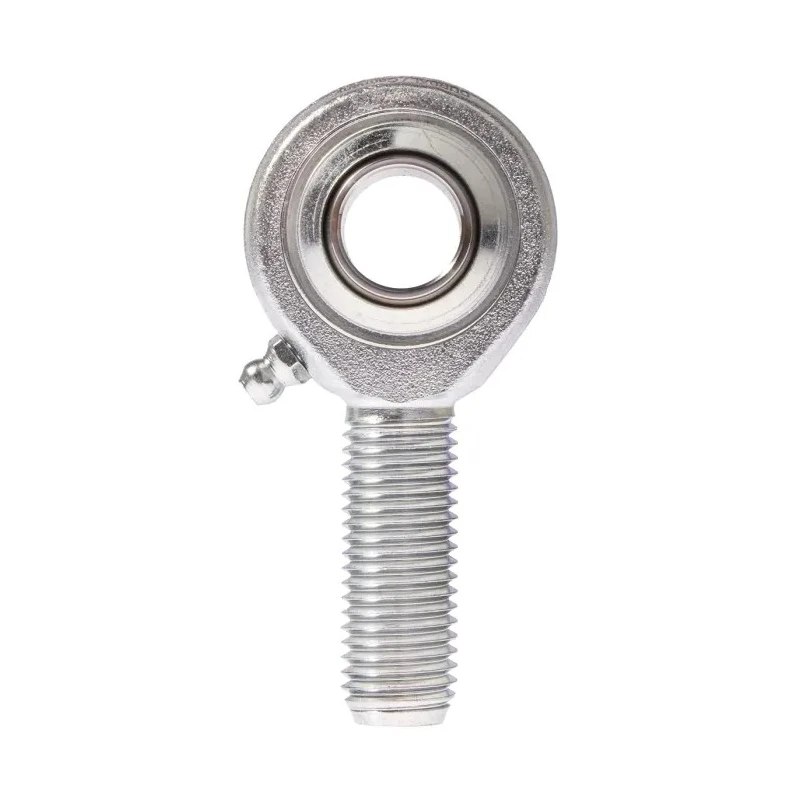

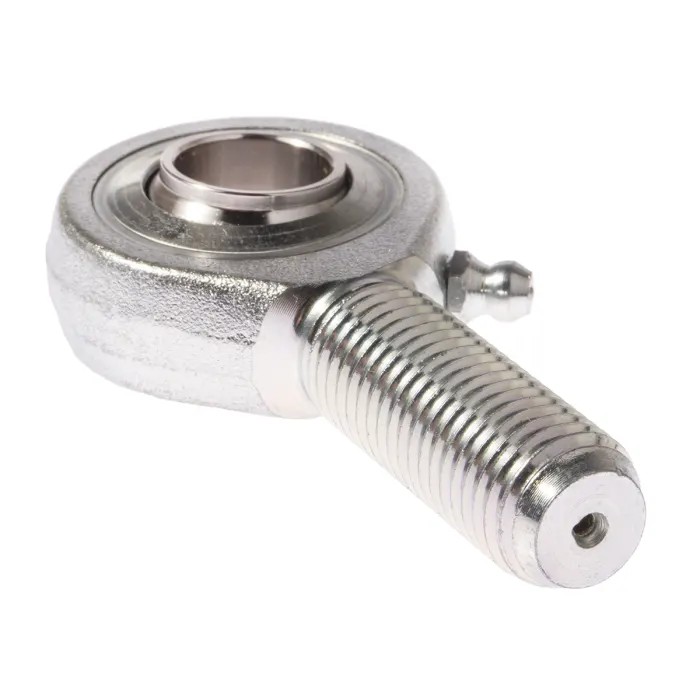

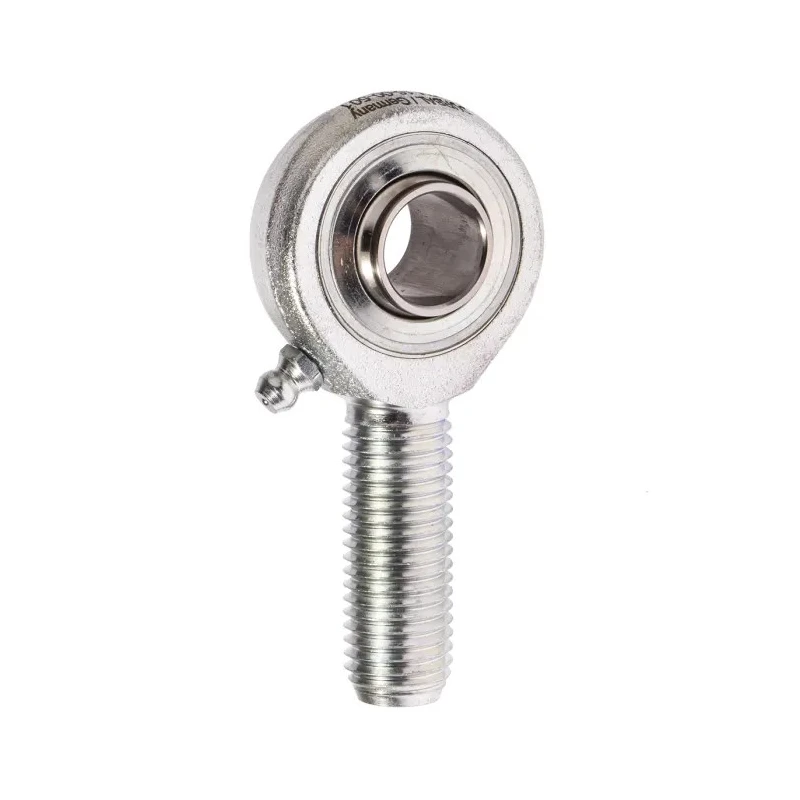

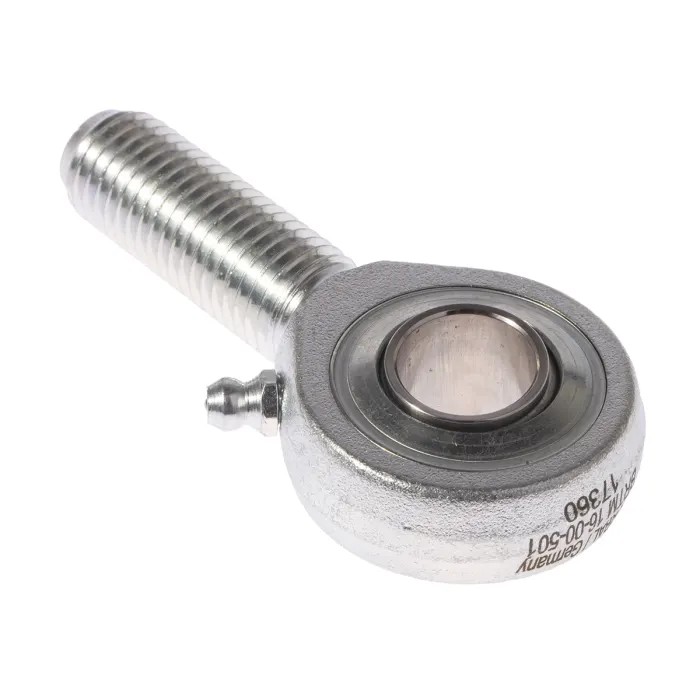

Durbal M20 x 1.5 Male Forged Steel Rod End Metric, 20mm Bore BRM 20-00-501

Durbal BRM 20-00-501 forged steel rod end bearing is a premium line mechanical component engineered for applications requiring reliable support and low maintenance. It incorporates a male thread sized M20 x 1.5 with a 20mm bore, providing precise fit and strength in industrial machinery and equipment.

The rod end housing is forged steel that is tempered and case hardened to ensure high wear resistance. Its bearing race is ground and lapped for smooth operation, while the rolled thread is surface galvanized for corrosion protection. The inner ring is constructed from hardened ball bearing steel with superfine ground finish to maintain reduced friction and durability.

This model has a dynamic load rating of 7.9 kN and a static load rating of 3.5 kN, making it suitable for demanding fluid power, mechanical, and hydraulic tool applications. The right-hand thread direction follows metric thread standards, facilitating easy integration.

Operating temperature range from -20°C to +120°C enables this rod end to perform consistently in varying environmental conditions. Lubrication with Polyrex EP2 or soap complex is possible, promoting extended service life and low maintenance requirements. The bearing clearance of 15 to 40 micrometers radial ensures self-aligning capabilities and precise bearing motion control.

With an outside diameter of 50mm and an overall width of 103mm, this rod end bearing is compact yet strong, suitable for rotary bearing and housing unit assemblies in construction, manufacturing, agricultural machinery, and other industrial sectors.

Constructed from forged steel with forged, tempered, and case hardened housing for durability. Features a right-hand, metric thread direction for standard compatibility. Dynamic load rating of 7.9 kN and static load rating of 3.5 kN for robust performance.

Temperature rated for operation between -20°C and +120°C. Includes low maintenance greasable male thread and self-aligning ball bearing inner ring. Outside diameter measures 50mm with overall width of 103mm. Bearing clearance ranges from 15 to 40 micrometers radial to ensure precision alignment.

This Rod End Bearing is ideal for industrial, mechanical, and fluid power system applications requiring high strength, durability, and reliable performance. Explore the full range of Durbal rod ends and mechanical spares on EnvMart.
