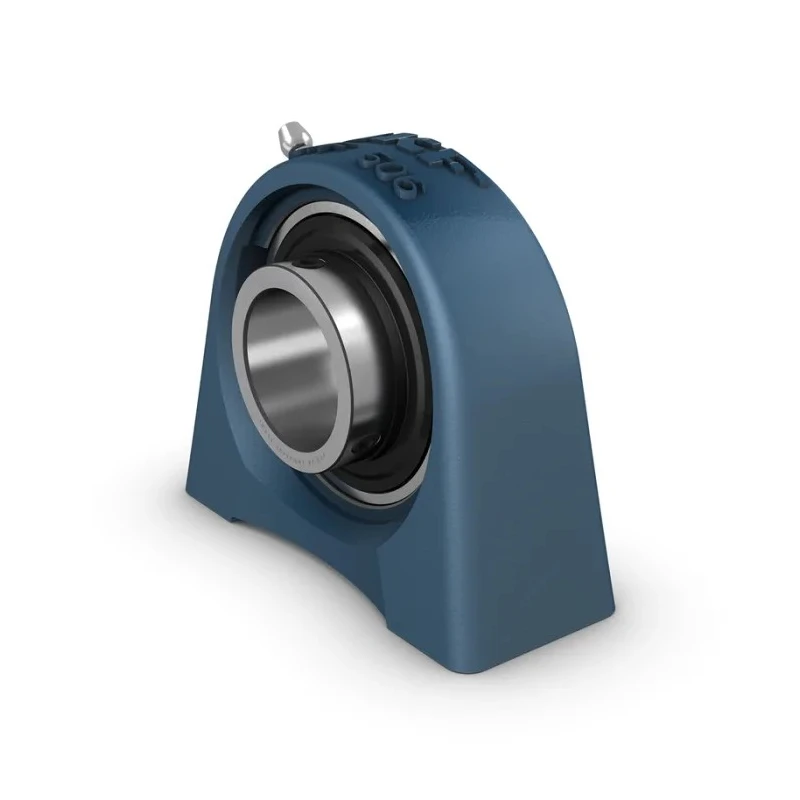

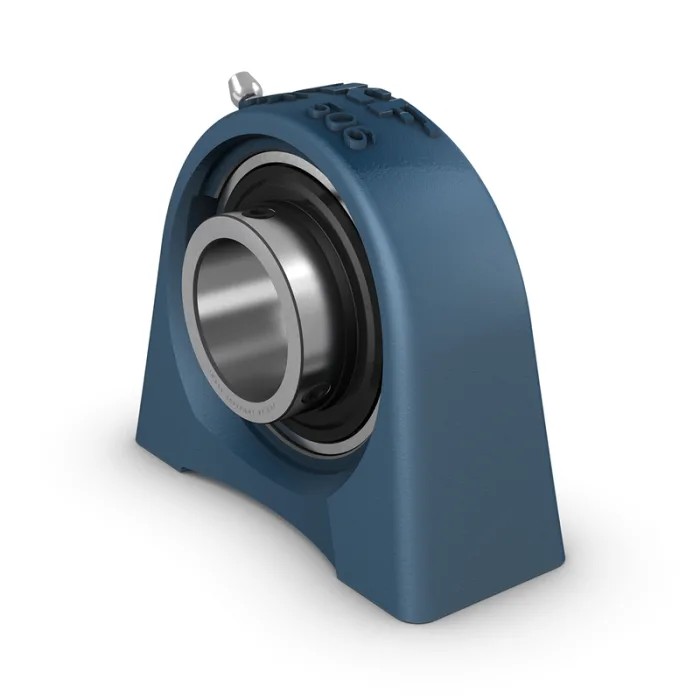

SKF Pillow Block Bearing, 50 mm Inside Diameter, Steel Material, Cylindrical Bore, 4000 RPM Limiting Speed SYF 50 TF

The SKF SYF 50 TF Pillow Block Bearing is a short base design unit consisting of a sealed deep groove ball bearing insert mounted in a robust steel housing. This unit features a 50 mm inside diameter and a total length of 135 mm, designed for industrial rotary support in applications requiring high precision and durability.

Constructed from bearing steel, it features a cylindrical bore allowing easy shaft mounting with a set screw locking mechanism to secure the assembly. The bearing has an open end type, facilitating access for inspection and maintenance.

With a dynamic load rating of 35.1 kN and static load rating of 23.2 kN, the bearing is suited for medium-duty applications. It supports limiting speeds up to 4000 rpm, making it suitable for high-speed rotary machinery in manufacturing, industrial equipment, and mechanical systems.

The housing includes two mounting bolts spaced 101.6 mm center-to-center, ensuring stable installation. The overall dimensions, including a 57.2 mm centre height, 114 mm height, 54 mm depth, and 135 mm length, make it compatible with a wide variety of setups.

Manufactured in Italy, this SKF SYF 50 TF unit complies with stringent quality and durability standards, enabling dependable performance in sectors such as industrial machinery, HVAC, agricultural equipment, and fluid power systems. The convex outer ring and extended inner ring design enable quick and easy shaft mounting while withstanding operational torque according to industry benchmarks.

Equipped with a cylindrical bore to ensure shaft compatibility. Features a set screw locking type for secure mounting. Designed with an open end type for easy maintenance and access. Capable of limiting speeds up to 4000 rpm for high-performance applications.

Constructed from bearing steel to withstand operational demands. Includes 2 mounting bolts with centre-to-centre distance of 101.6 mm. Offers static and dynamic load ratings of 23.2 kN and 35.1 kN respectively for reliable load management.

Compact dimensions with a length of 135 mm, height of 114 mm, depth of 54 mm, and centre height of 57.2 mm. Manufactured to the SYF series specifications and made in Italy ensuring high quality standards. Explore more industrial-grade Pillow Block Bearings and SKF products on EnvMart for tailored mechanical solutions.
