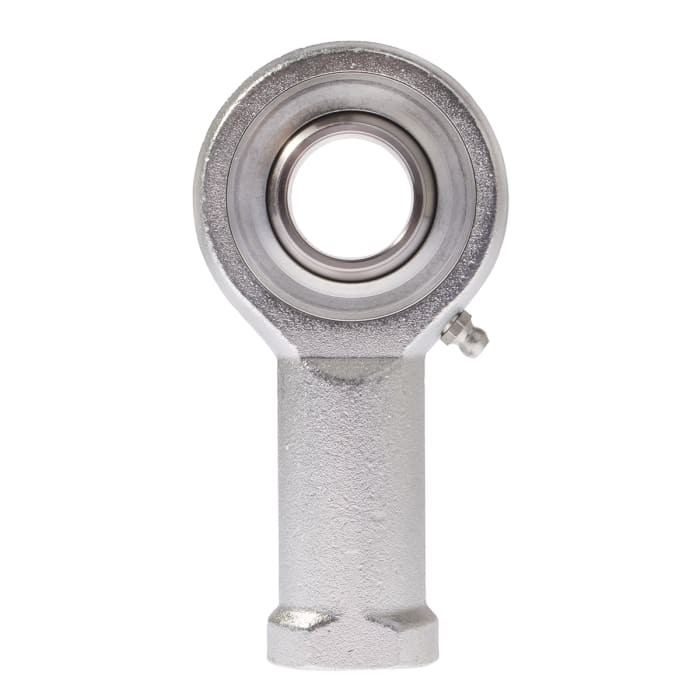

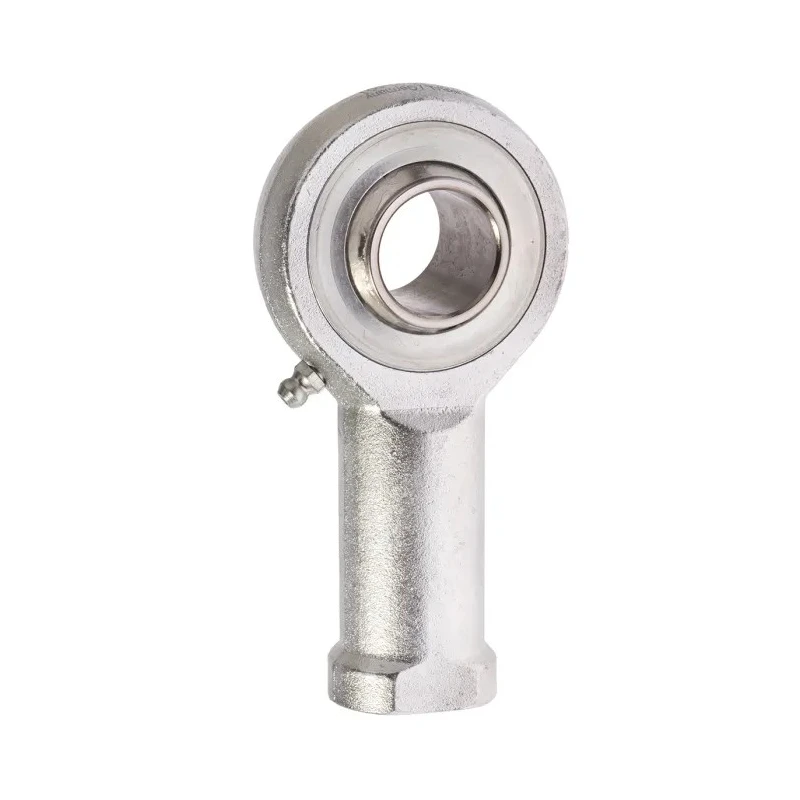

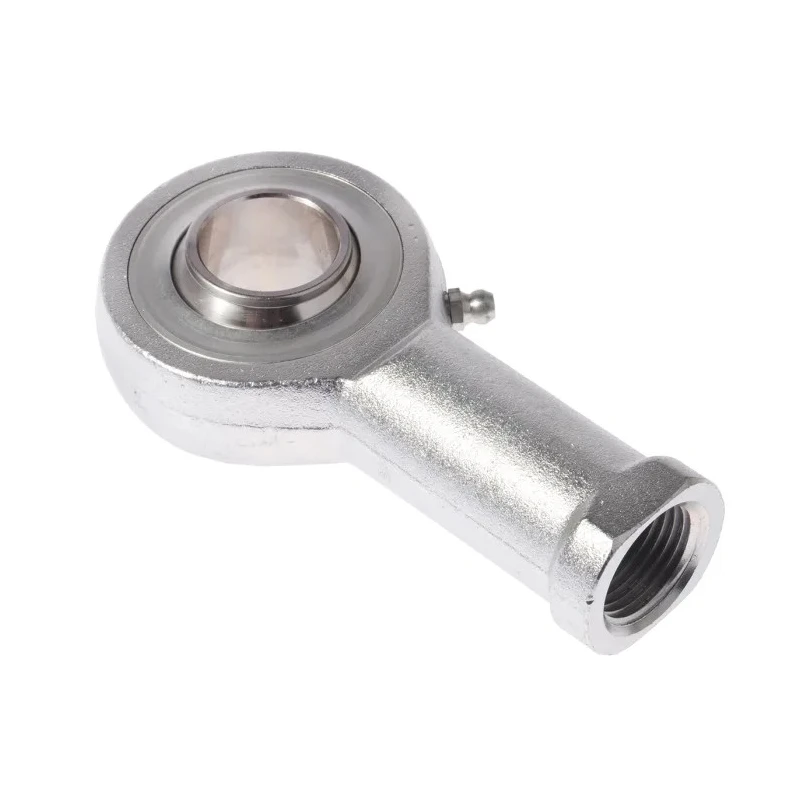

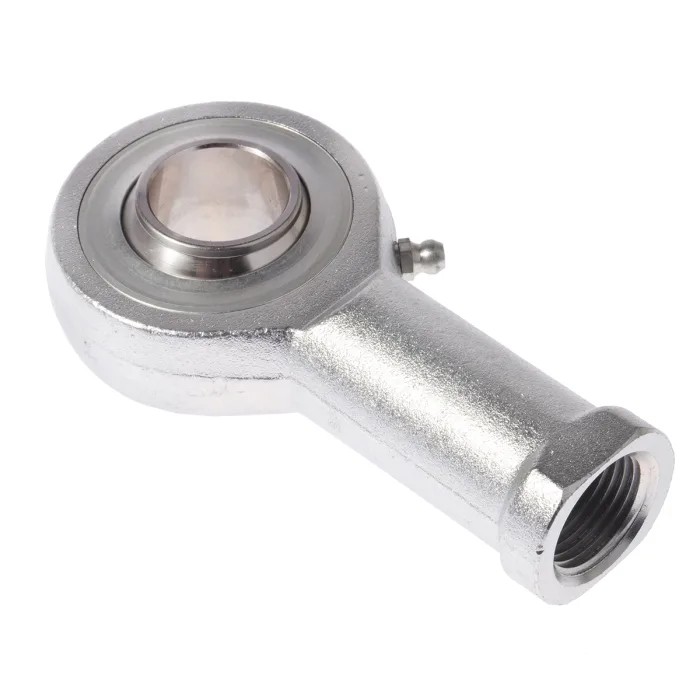

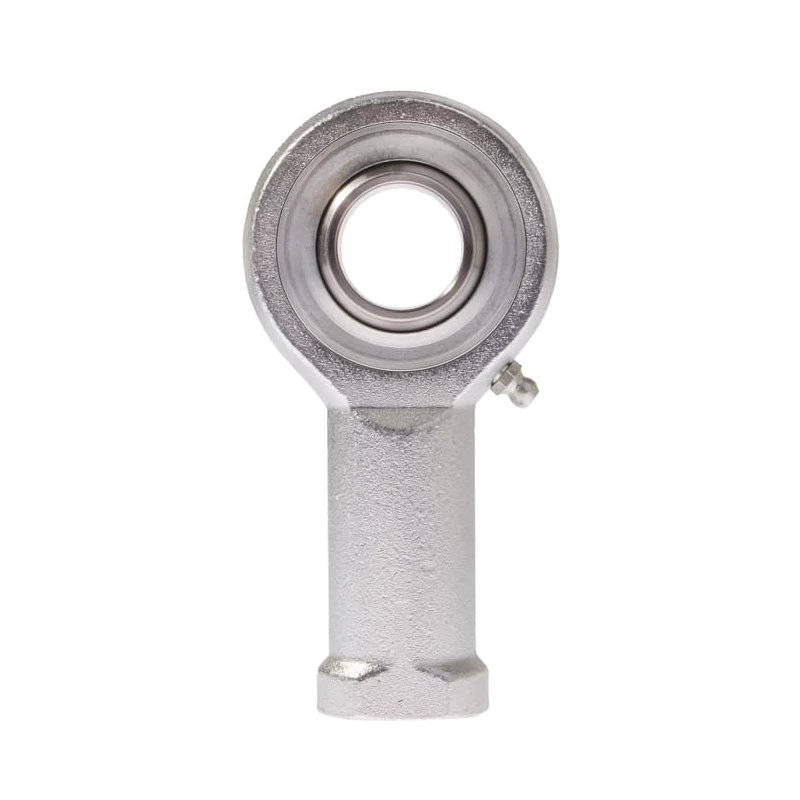

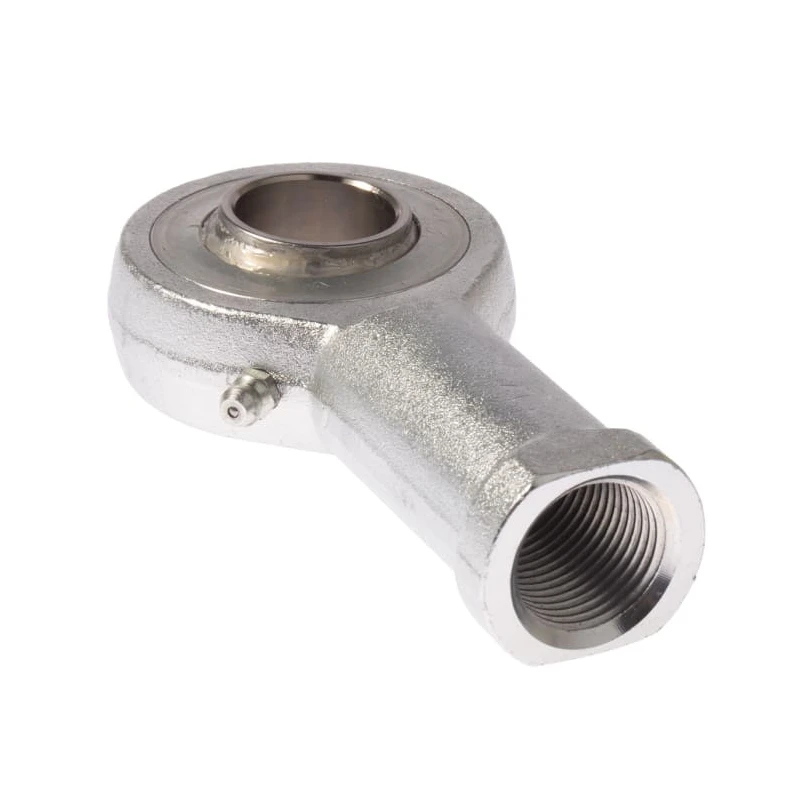

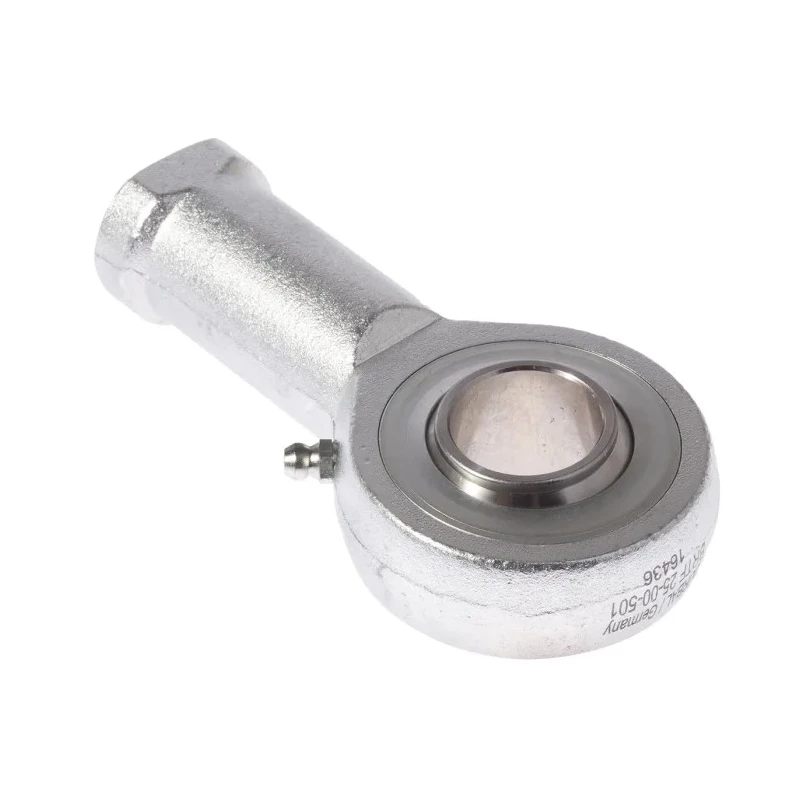

Durbal M12 x 1.75 Female Forged Steel Rod End, 12mm Bore, 5.6kN Dynamic Load BRF 12-00-501

Durbal BRF 12-00-501 M12 x 1.75 Female Forged Steel Rod End is a premium line rod end designed for mechanical, fluid power, and rotary bearing applications in industrial environments. The forged steel housing is tempered, case hardened, and galvanized to provide excellent wear resistance and corrosion protection.

This rod end features a 12mm bore diameter with a female metric thread of M12 x 1.75, suitable for various mechanical linkages and assemblies. The ball bearing steel inner ring is hardened and superfine ground to ensure precision and durability, enabling smooth self-aligning performance under load.

It offers a dynamic load rating of 5.6kN and a static load rating of 2kN, supporting robust mechanical operation. The operating temperature range spans from -20 °C up to 120 °C, making it suitable for diverse industrial applications requiring low maintenance and reliable lubrication options such as Polyrex EP2 or soap complex.

The rod end has a right-hand thread direction with an outside diameter of 32mm and an overall width of 66mm. Bearing clearance is maintained between 15 to 40 micrometers radial, ensuring precise fitting and reduced wear.

Durable forged steel housing with case hardened and surface galvanized finish. Precision hardened ball bearing steel inner ring. Lubrication facilitated for long-term low maintenance. Suitable for high load and temperature applications up to 120 °C.

Metric M12 x 1.75 female threaded connection. Ideal for industrial, mechanical, and fluid power use cases.

This rod end bearing stands out for demanding mechanical linkages in construction, manufacturing, and hydraulic equipment. Choose Durbal BRF 12-00-501 for reliability, performance, and extended service life in harsh environments.
