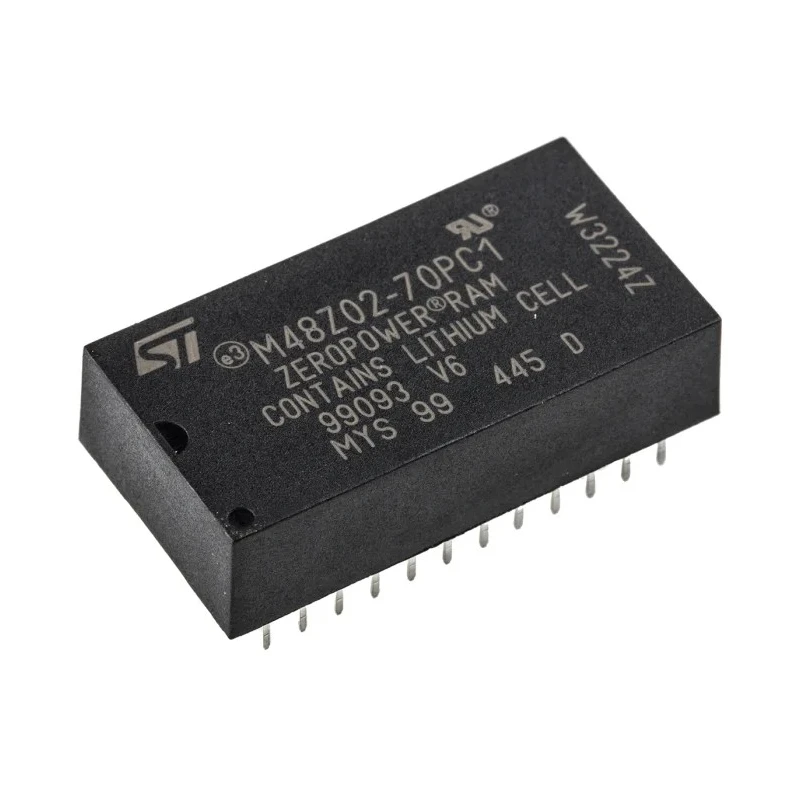

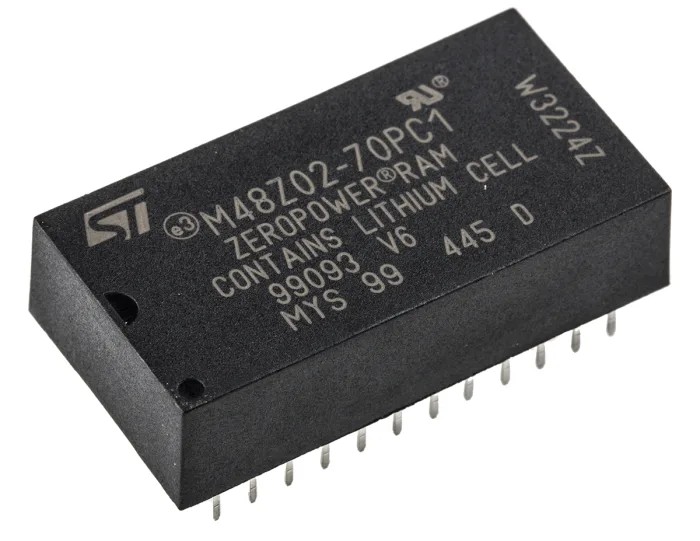

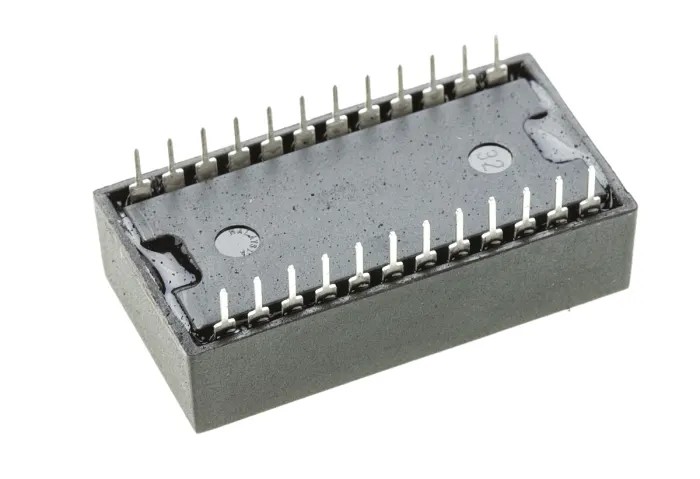

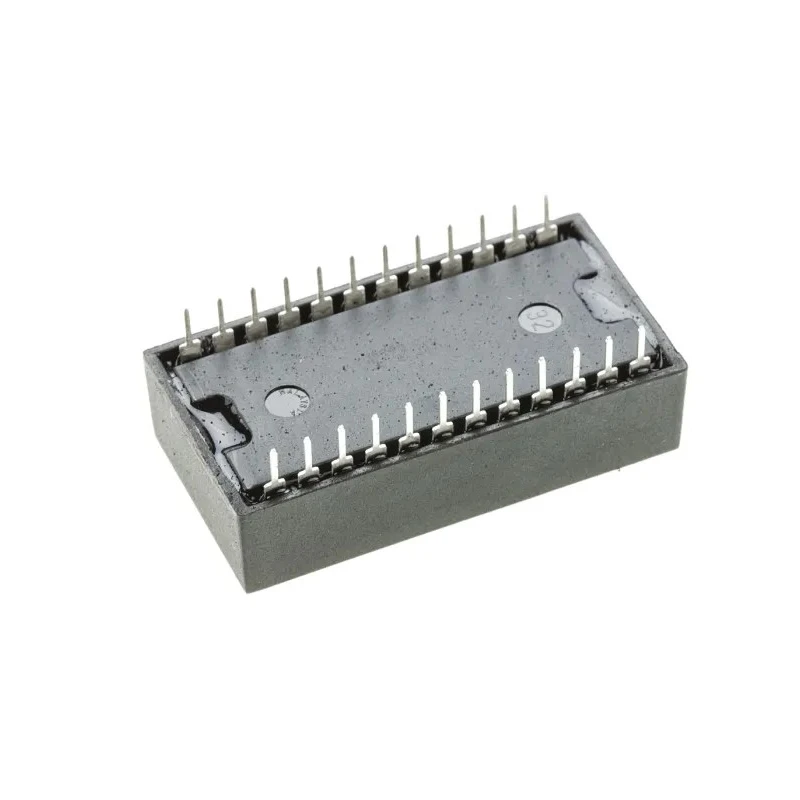

STMicroelectronics 16 kB 70 ns NVRAM 24-Pin PCDIP M48Z02-70PC1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 8.89mm |
| Length | 34.8mm |
| Model | M48Z02-70PC1 |
| Width | 18.34mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 70°C |
| Package Type | PCDIP |
| Minimum Operating Temperature | 0°C |
| Memory size | 16kB |
| Interface Type | Parallel |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.75V |
| Supply Current | 80mA |
| Organisation | 2K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 70ns |
| Number of Words | 2 |
Key Features
- The memory size is 16 kB configured as 2K x 8 bit organization.
- It features a parallel 8-bit data bus interface.
- The device supports through hole mount with a 24-pin PCDIP package.
- Maximum random access time is 70 ns ensuring fast memory operations.
- Operational voltage ranges between 4.75 V minimum and 5.5 V maximum supply.
- The supply current is low at 80 mA, optimizing power consumption.
- Operating temperature ranges from 0°C to 70°C for standard industrial use.
- Physical dimensions are 34.8 mm length, 18.34 mm width, and 8.89 mm height.
Product Description
STMicroelectronics M48Z02-70PC1 is a 16 kB non-volatile RAM (NVRAM) with a 70 ns maximum random access time, housed in a 24-pin PCDIP package designed for through-hole mounting. This memory chip combines low power SRAM with a power-fail control circuit and a long-life lithium battery, making it ideal for industrial, electronic components, and embedded system applications where data retention and fast access speed are critical.
With an organization of 2K x 8 bit and an 8-bit parallel data bus interface, it offers efficient data handling for various memory applications. The device operates at a voltage range from 4.75 V to 5.5 V, with a low supply current of 80 mA, ensuring energy efficiency and minimal heat dissipation during operation.
Physical dimensions of 34.8 mm in length, 18.34 mm in width, and 8.89 mm in height make it suitable for integration into conventional PCB designs. The operational temperature range of 0°C to 70°C suits many industrial and commercial environments, though it lacks automotive certification.
This NVRAM is best suited for use in industrial electronics, manufacturing systems, communication devices, and legacy hardware requiring reliable static memory with power backup capabilities. The 24-pin PCDIP package facilitates straightforward installation on standard PCB layouts.
The 16 kB memory size supports moderate data storage needs. 70 ns random access time provides fast read/write performance. Through hole mounting type ensures durability in industrial setups. Low supply current reduces overall power usage.
Wide operational temperature suits diverse environmental conditions. Compact PCDIP packaging for easy PCB integration. Explore more from STMicroelectronics and find suitable semiconductor solutions to enhance your electronic designs at EnvMart.
Explore more products in our Memory Chips category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The M48Z02-70PC1 has a memory size of 16 kB, configured as a 2K x 8 bit organization.
The maximum random access time for the M48Z02-70PC1 is 70 ns, ensuring fast memory operations.
The operational voltage range for the M48Z02-70PC1 is between 4.75 V and 5.5 V.
This model features a parallel 8-bit data bus interface for efficient data handling.
The dimensions of this NVRAM are 34.8 mm in length, 18.34 mm in width, and 8.89 mm in height.
The supply current for this model is 80 mA, optimizing power consumption during operation.
The operational temperature range for the M48Z02-70PC1 is from 0°C to 70°C, suitable for standard industrial use.
This NVRAM uses a through-hole mounting type, designed for easy installation on standard PCB layouts.
The M48Z02-70PC1 has 24 pins, housed in a PCDIP package.
This NVRAM is suitable for industrial electronics, manufacturing systems, communication devices, and legacy hardware requiring reliable static memory with power backup capabilities.
The memory organization of this model is 2K x 8 bit, allowing for efficient data storage and retrieval.
The M48Z02-70PC1 is manufactured in India.
