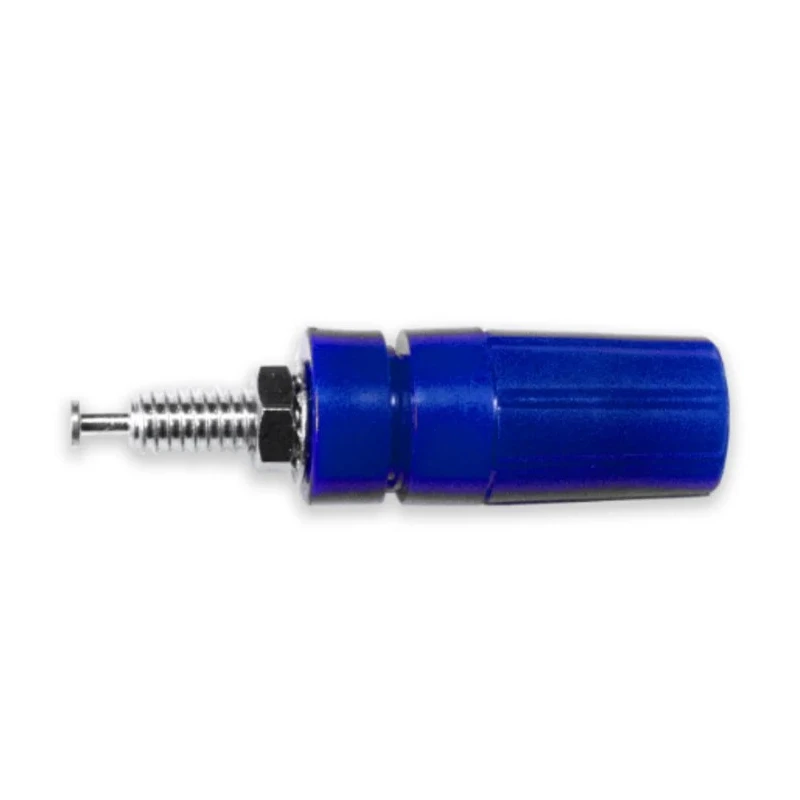

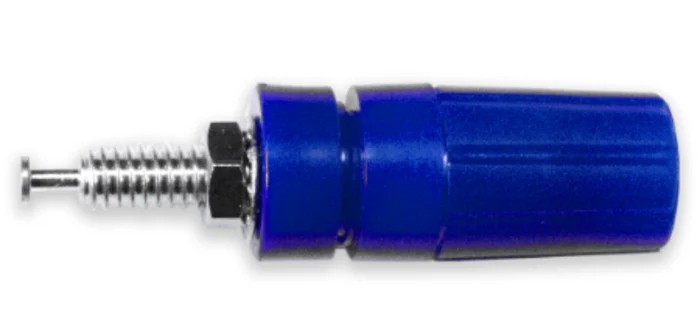

Mueller Electric Blue 15A Binding Post with Brass Contacts Nickel Plated 9.53 mm Hole Diameter BU-P3760-6

Mueller Electric BU-P3760-6 binding post in blue color is designed for electrical and test connector applications requiring a robust and reliable current handling solution. It features a nickel-plated brass contact material that provides enhanced corrosion resistance and excellent electrical conductivity for carrying 15 Amps current safely.

The binding post accepts a range of connection styles, including bare wire, spade terminals, and non-shrouded or retractable 4mm banana plugs, making it suitable for quick and easy connections in laboratory, electronic testing, and industrial equipment setups.

The device accommodates panel thicknesses between 1.78 mm and 6.35 mm and mounts at a height of 20.32 mm above the panel, ensuring mechanical stability and ease of use. It is rated for hands-free voltage testing up to 2500 VRMS, providing safety and reliability during electrical testing procedures.

Constructed with a polycarbonate insulator, the binding post is built for durability and capable of operating under harsh environmental conditions ranging from -50°C to 115°C. This allows it to be used in diverse industrial, laboratory, and electrical measurement situations where temperature extremes occur.

With a male gender type and precise hole diameter of 9.53 mm, this product from Mueller Electric ensures consistent and secure electrical connections. Its nickel plating and brass build assure long-term performance even in demanding environments.

Nickel plated brass contacts ensure corrosion resistance and reliable conductivity. Accepts bare wires, spade terminals, or non-shrouded 4mm banana plugs. Panel thickness compatibility ranges from 1.78 mm to 6.35 mm. Height above panel is 20.32 mm for secure mounting.

Rated for hands-free testing up to 2500 VRMS at 15 Amps. Operating temperature range is from -50°C to 115°C for versatile applications. Made with a durable polycarbonate insulator. Ideal for industrial, laboratory, and electrical testing use cases.
