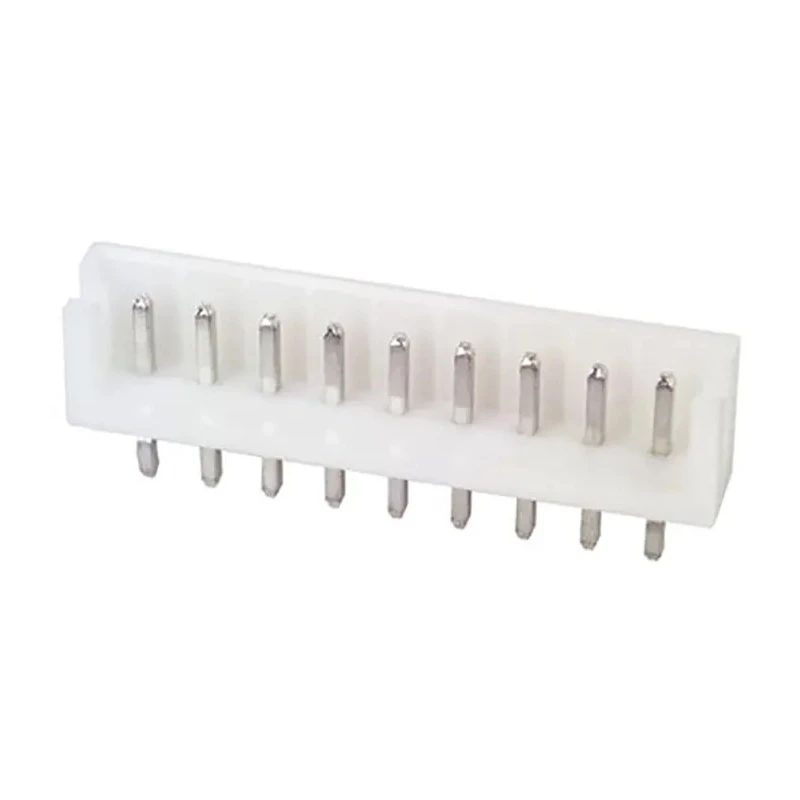

JST EH Series Straight Through Hole PCB Header, 9 Contacts, 2.5 mm Pitch, 1 Row, Shrouded B9B-EH-A (LF) (SN)

JST B9B-EH-A (LF) (SN) EH Series Straight Through Hole PCB Header is designed for reliable wire-to-board electronic connections with a 9 contact configuration and 2.5 mm pitch in a single row.

The header features a shrouded design with polyamide housing that provides electrical insulation and mechanical stability in harsh operating environments. Brass contact material with tin plating offers excellent conductive performance and corrosion resistance, ensuring long-lasting service in electronic assemblies.

This component supports a current rating of 3 amperes and voltage rating of 250 volts, making it suitable for moderate power circuits and signal transmission in industrial and commercial applications.

Operating temperature range from -25°C to 85°C allows suitability across diverse environmental conditions encountered in manufacturing, testing laboratories, and embedded electronic systems.

The 3.2 mm mating pin length and integral keying provide secure, polarized connections that prevent misalignment during assembly or maintenance. Termination is through-hole solder type, giving robust and permanent mechanical retention on PCB assemblies.

Provides reliable 3A current handling for industrial electronic connections. Constructed with a polyamide housing for robust insulation and durability. Features brass contacts with tin plating to ensure consistent conductivity and corrosion resistance.

Operates safely within a voltage rating of 250V and temperature range of -25°C to 85°C. Includes integral keying to guarantee correct polarization and mating orientation. Mounts via through-hole solder termination to ensure secure mechanical and electrical connection.

Mating pin length is 3.2 mm for precise and stable connections. Ideal for PCB header use in industrial, laboratory, and manufacturing electronic assembly. Compatible with JST crimp socket housings and IDC socket housings for versatile connectivity options.

These JST EH Series PCB Headers are commonly used in electronic manufacturing, printed circuit board interconnects, industrial control systems, laboratory instrumentation, and HVAC control wiring.
