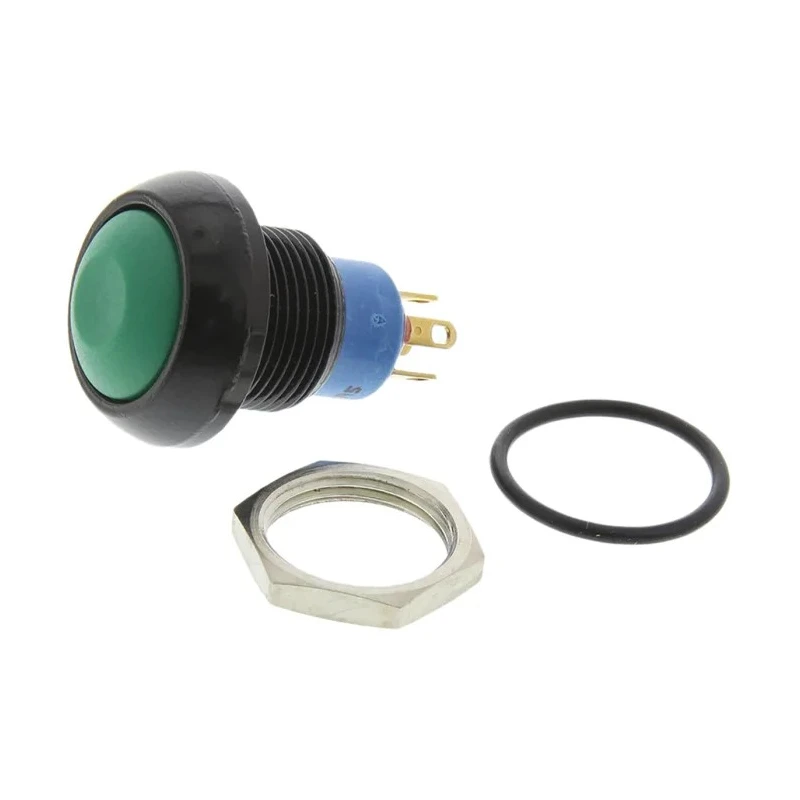

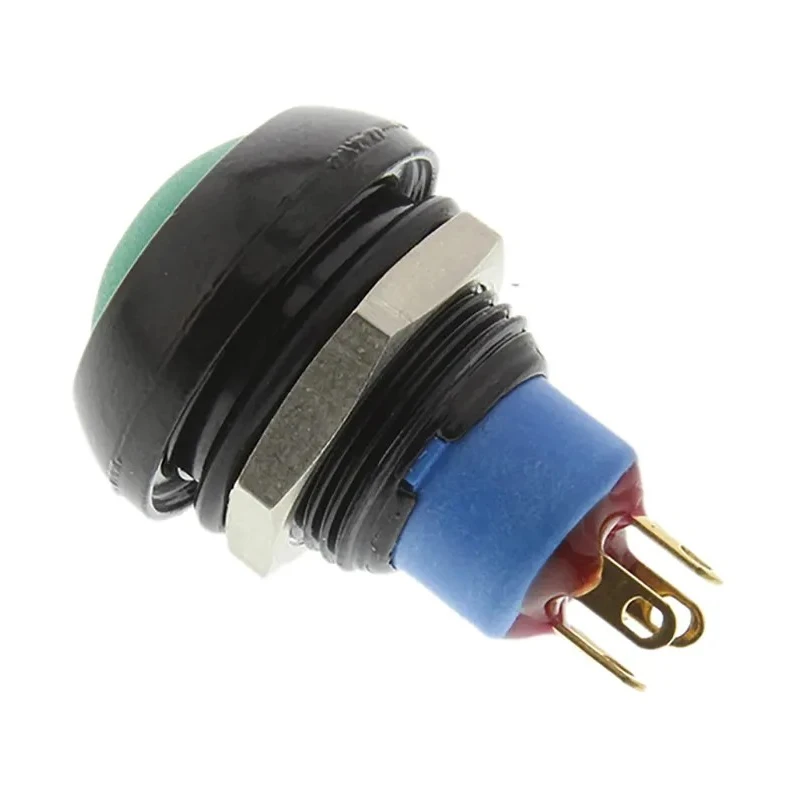

APEM IP Series Momentary Push Button Switch Panel Mount SPDT Green Actuator, IP67, 12.9 mm Cutout, 50 V dc 48 V ac IPR5SAD3
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 17.5mm |
| Model | IPR5SAD3 |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | NC, NO |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.9 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 50V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 5A |
| Contact AC Voltage | 48V ac |
| Very robust | IK06 |
Key Features
- The switch offers reliable momentary operation with SPDT contacts.
- It has a robust design rated IK06 for impact resistance.
- Suitable for harsh environments with IP67 protection against dust and water ingress.
- The actuator color is green with a plunger style for excellent touch feedback.
- It supports contact currents up to 5A and operates between -40°C and 85°C.
- Mount type is panel with solder terminal type for connectivity.
- RoHS compliant and manufactured in France ensuring quality and standards.
Product Description
The APEM IPR5SAD3 push button switch is a high-quality momentary switch designed for panel mounting applications requiring a compact 12.9 mm cutout. Featuring a green plunger actuator, it provides clear indication and excellent tactile feedback.
Built to endure harsh environments, the switch achieves an IP67 ingress protection rating, making it completely dust-tight and protected against water immersion. The design also includes a robust IK06 impact resistance rating, ensuring durability in industrial and commercial settings.
This switch operates with a SPDT contact configuration allowing Normally Open (NO) and Normally Closed (NC) switching, accommodating various control circuit needs. Rated for up to 5A contact current and supporting 50 V dc and 48 V ac, it is suitable for moderate voltage control tasks.
The operating temperature range from -40°C to +85°C broadens its applicability from cold storage to hot industrial conditions. Its solder terminal type ensures secure electrical connections on PCBs or wiring harnesses.
Manufactured in France, it meets RoHS environmental compliance standards and follows EN 50102, IEC 512-4 and IEC 512-6 certifications, reflecting its quality and safety credentials.
Reliable momentary SPDT switch operation with clear green plunger actuator. Compact 12.9 mm cutout designed for panel mounting. IP67 rated for dust and water ingress protection in harsh environments. Robust IK06 impact resistance for long-lasting durability.
Operating voltage up to 50 V dc and 48 V ac with 5A contact current capability. Wide temperature range from -40°C to +85°C for versatile industrial use. Solder terminals for dependable electrical connection. RoHS compliant and manufactured in France for quality assurance.
This APEM push button switch series is ideal for use in industrial control panels, automation systems, electrical equipment, and other demanding applications requiring dependable momentary switching with environmental robustness. Explore more Push Button Switches in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The APEM IPR5SAD3 has an ingress protection rating of IP67, making it completely dust-tight and protected against water immersion.
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for Normally Open (NO) and Normally Closed (NC) switching.
It can handle a maximum contact current of 5A.
The switch supports a contact DC voltage of 50V and an AC voltage of 48V.
The operating temperature range is from -40°C to +85°C, allowing it to function in extreme conditions.
It uses solder terminals for secure electrical connections.
The required panel cutout size for this switch is 12.9 mm.
The actuator style is plunger, and it is colored green for clear indication.
This switch has an IK06 impact resistance rating, indicating its robustness against mechanical impacts.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This model is manufactured in France, reflecting its quality and standards.
It is suitable for use in industrial control panels, automation systems, and other demanding applications requiring momentary switching.
