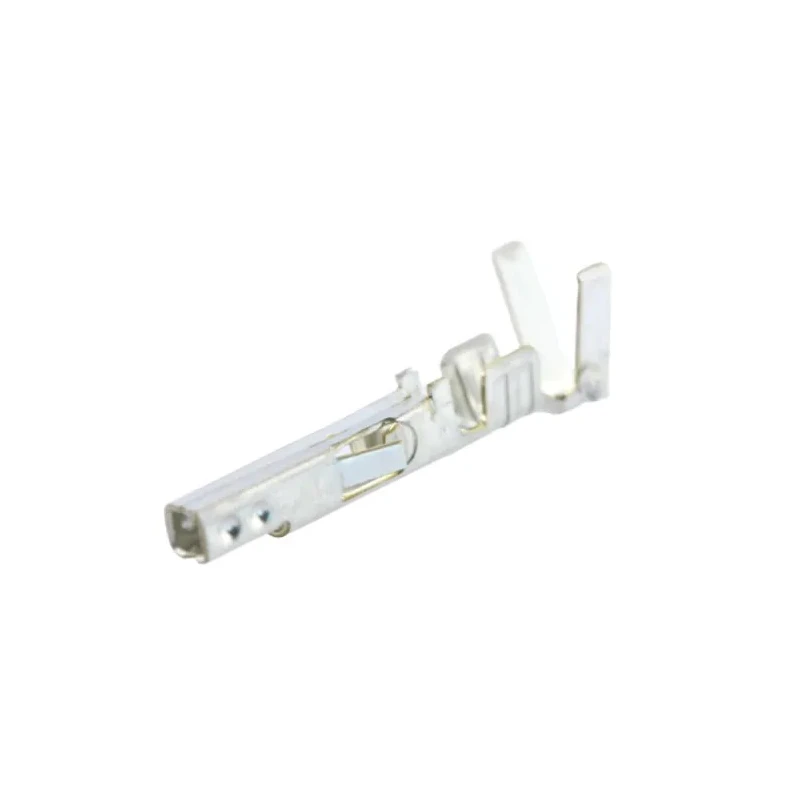

Molex 5556 Series Female Crimp Terminal, 16 AWG Min and Max Wire Size, Tin Plating, Phosphor Bronze Contact 39-00-0217
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | 30067 Mini-Fit TPA, 42474 Mini-Fit BMI Panel Mount, 5557 Mini-Fit Jr. Receptacle Housing |
| Standards/Approvals | China RoHS compliant, EU ELV Compliant, EU RoHS Compliant, Halogen-Free Status Low-Halogen |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with phosphor bronze for high conductivity and fatigue resistance.
- Tin plated contacts ensure excellent corrosion resistance.
- Rated for 9 ampere current and up to 600 volts maximum voltage.
- Operates in temperature range from -40°C to 105°C for rugged performance.
- Designed for use with Molex Mini-Fit connector housings including 30067 Mini-Fit TPA.
- Features crimp termination providing secure wire and insulation grip without soldering.
- Meets China RoHS, EU RoHS, ELV compliance, and is low-halogen.
- Ideal for industrial automation, telecommunications, medical devices, commercial vehicles, and marine applications.
Product Description
Molex 39-00-0217 Female Crimp Terminal from the 5556 Series is a high-performance crimp terminal designed for use with 16 AWG wires. This component offers reliable and efficient electrical connections without the need for soldering.
Manufactured with phosphor bronze, the contact material is highly conductive and resistant to mechanical fatigue, ensuring long-lasting durability. The tin plating on the contact surface further enhances resistance to corrosion and wear, making it suitable for harsh environments.
This crimp terminal supports a current rating of 9 amperes and a maximum voltage of 600 volts, making it ideal for a wide range of electrical and electronic applications. It is capable of operating in extreme temperatures from -40°C up to 105°C, providing rugged reliability across diverse industrial conditions.
Designed to work with Molex Mini-Fit Jr connector housings, including models like 30067 Mini-Fit TPA, 42474 Mini-Fit BMI Panel Mount, and 5557 Mini-Fit Jr Receptacle Housing, it ensures compatibility and secure connections.
The dual-pair crimp arms provide firm holding power on both stripped wires and insulation, delivering secure and vibration-resistant connections without soldering. Phosphor bronze contact material provides excellent conductivity and fatigue resistance.
Tin plating offers corrosion protection and increases terminal lifespan. Current rating of 9A and voltage rating of 600V. Operating temperature range from -40°C to 105°C for versatile use. Compatible with various Mini-Fit connector housings.
Compliant with China RoHS, EU RoHS, ELV directives, and is low-halogen for environmental safety. Suitable for applications in industrial automation, telecommunications, medical devices, commercial vehicles, and marine industry.
This Crimp Terminal is engineered to support efficient assembly and maintenance of wiring harnesses in demanding environments. Its reinforced design minimizes connection failures and supports long-term stable electrical performance.
Explore a broad range of Molex connectors and terminals in the Electronics Components category on EnvMart for your precise industrial and commercial application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a current of 9 amperes.
It can handle a maximum voltage of 600 volts.
The terminal operates within a temperature range of -40°C to 105°C.
This model is designed for use with 16 AWG wire sizes, both minimum and maximum.
It is constructed with phosphor bronze for the contact material and features tin plating for corrosion resistance.
Yes, it is compliant with China RoHS, EU RoHS, and EU ELV directives, and is classified as low-halogen.
It is designed for use with Molex Mini-Fit connector housings, including models like 30067 Mini-Fit TPA and 42474 Mini-Fit BMI Panel Mount.
This terminal uses a crimp termination type, providing a secure grip on wires and insulation without soldering.
The maximum contact resistance is 10 milliohms (10mΩ).
It is suitable for applications in industrial automation, telecommunications, medical devices, commercial vehicles, and marine industries.
The country of origin for this crimp terminal is India.
The dual-pair crimp arms provide firm holding power on both stripped wires and insulation, ensuring secure and vibration-resistant connections.
