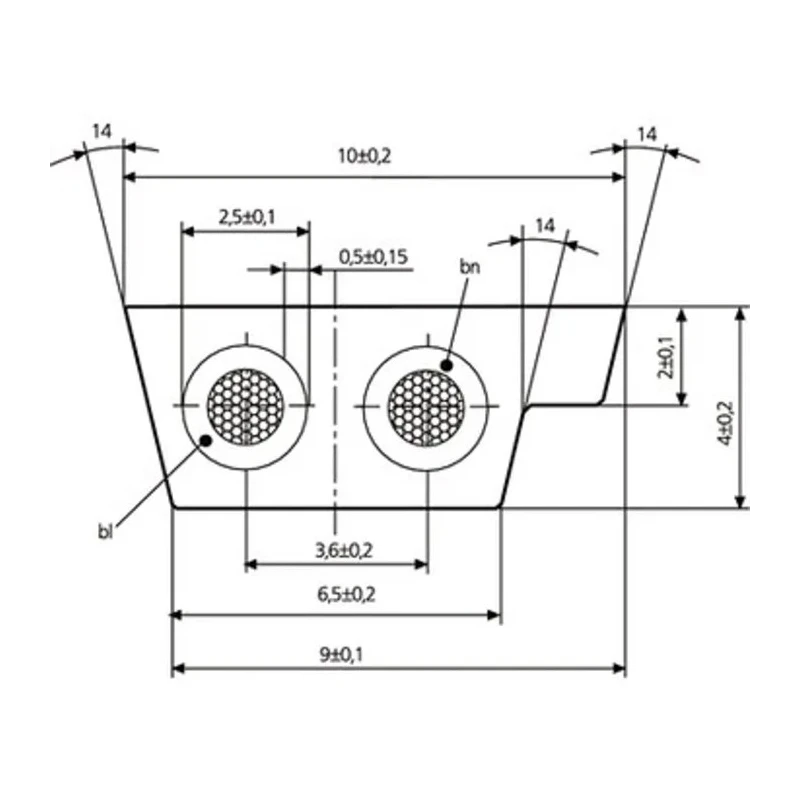

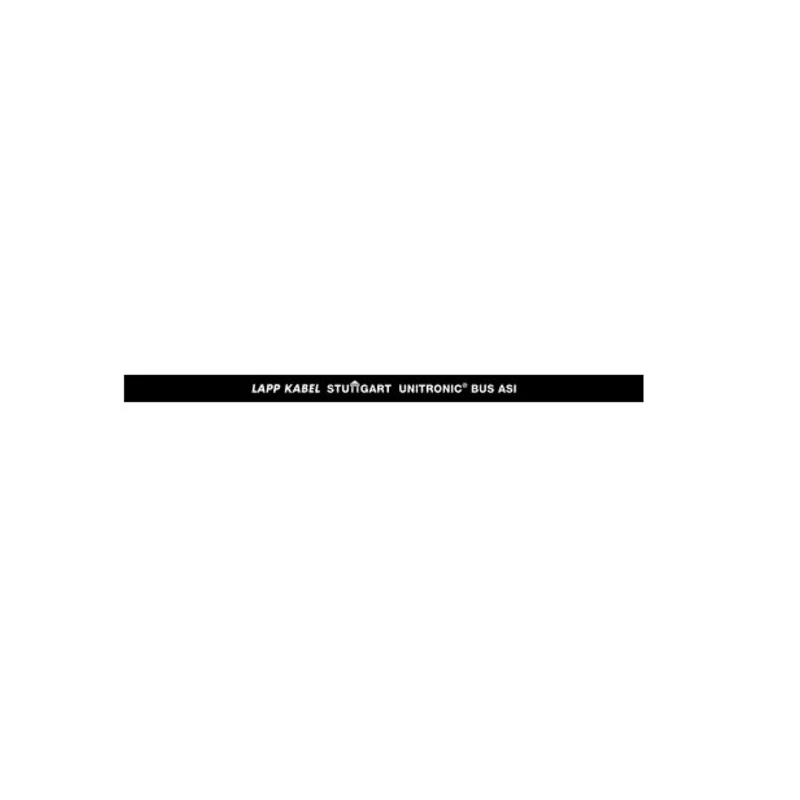

Lapp UNITRONIC BUS ASI Data Cable 2 Cores 1.5 mm² CSA 15 AWG Unscreened 50 m Black Thermoplastic Elastomer Sheath 2170231
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 1.5mm² |
| Model | 2170231 |
| Cable Length | 50m |
| Series | UNITRONIC BUS ASI |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Sub Type | Data Cable |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | UL |
| Jacket Colour | Black |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
Key Features
- The cable features a stranded tinned copper conductor for enhanced conductivity and durability.
- It has a black thermoplastic elastomer sheath that is oil resistant and suitable for outdoor use.
- The cable is unscreened and supports a voltage rating of 300V.
- Operating temperature range is from -30°C to +85°C, making it durable in diverse environments.
- The 15 AWG wire gauge ensures optimal power and data transmission performance.
- Halogen-free design improves safety by minimizing toxic emissions in case of fire.
- The cable conforms to UL standards and is RoHS compliant under EU Directive 2011/65/EU.
Product Description
Lapp 2170231 UNITRONIC BUS ASI Data Cable is a high-quality 2-core data cable with 1.5 mm² cross-sectional area and 15 AWG stranded tinned copper conductor. It features a black thermoplastic elastomer sheath that is robust, oil resistant, and halogen free. Designed specifically for AS-INTERFACE systems, this cable supports a voltage rating of 300V and has a temperature range from -30°C to +85°C for use in both fixed and flexible installations.
This unscreened cable ensures efficient data transmission and seamless integration into existing UNITRONIC BUS ASI systems. Its halogen-free and oil-resistant sheath enhances safety and durability, suitable even for outdoor exposure in dry and damp environments. The cable complies with UL standards and meets RoHS requirements, ensuring environmental safety and regulatory compliance.
Ideal for industrial automation, electronics, electrical, mechanical, and manufacturing applications, this cable provides reliable performance under varying environmental conditions. Its stranded tinned copper conductors improve conductivity and resistance to corrosion, extending the cable's service life.
The cable uses TPE insulation for safety and durability. Multicore design facilitates efficient data and signal transmission. Oil-resistant sheath enables use in harsh environments. Halogen-free construction improves fire safety by reducing toxic emissions.
Compliant with international standards including UL and RoHS. Designed for AS-INTERFACE systems, ensuring interoperability. Suitable for fixed installations in dry or damp locations and flexible uses without tensile stress.
Set contains 1 Pc of 50 meters Lapp UNITRONIC BUS ASI Data Cable, Model 2170231. Explore the wide range of industrial cables and sensor cables available at EnvMart for your automation and electrical wiring needs.
Explore more products in our Sensor & Actuator Cables category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this data cable is 300V.
The conductors in this model have a cross-sectional area of 1.5 mm².
The maximum operating temperature for this cable is 85°C.
This data cable uses stranded tinned copper wire as its conductor material.
The cable has a length of 50 meters.
This cable is unscreened.
The minimum operating temperature for this cable is -30°C.
The jacket material is thermoplastic elastomer, which is oil resistant and suitable for outdoor use.
This cable complies with UL standards and is RoHS compliant under EU Directive 2011/65/EU.
The American Wire Gauge (AWG) rating of this cable is 15 AWG.
This cable is designed for AS-INTERFACE systems and is suitable for industrial automation, electronics, and manufacturing applications.
The cable is halogen-free, which improves safety by minimizing toxic emissions in case of fire.
