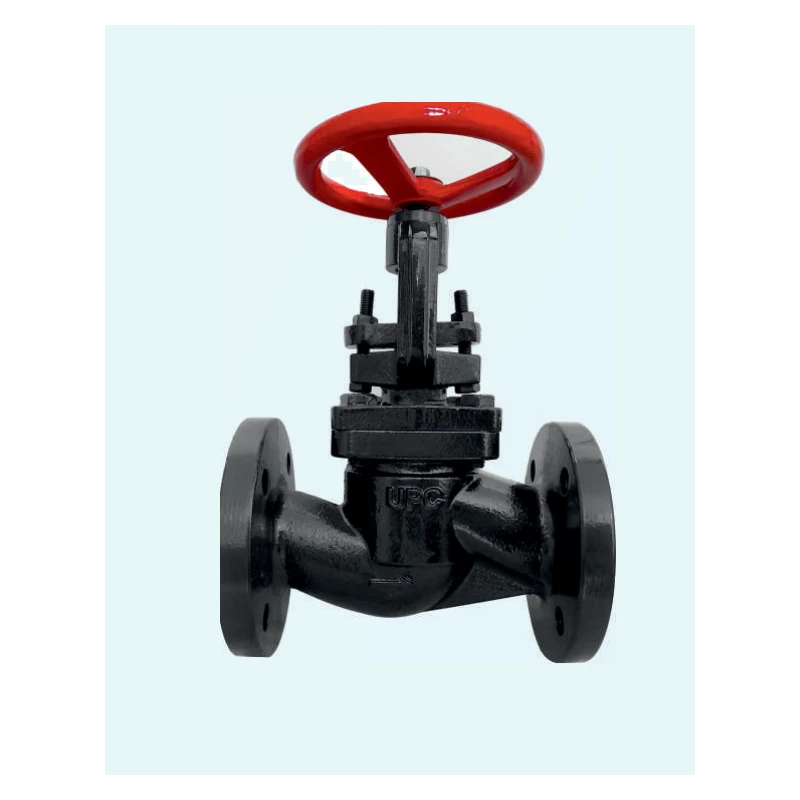

Globe Valve Cast Iron 200 mm
Specifications
| Description | Bolted Bonnet| Outside Screw & Yoke type Rising Stem |
|---|---|
| Working Pressure | Max. BOP 13 kg/cm Max. BOP 8.5 kg/cm |
| Model | UPC-CIGB-433 |
| Pressure Rating | Till 150mm Pn16 & for 200mm PN10 |
| Product Standard | BS 5152/Din 86251 |
| End Details | Flange Ends as per DIN 2533 Raised Face Flanged ends as per DIN 2533 Raised Face |
| Type of Pattern | Straight Pattern |
| Type of Seat & Disc | Renewable |
| Handwheel | Cast Iron as per IS 210 Gr. FG 200 |
| Stud Nut & Washer | Carbon steel as per IS 1367 |
| Hydraulic Test Pressure | Body 17 kg/cm| seat 11.3/kg/cm Body 26 kg/cm| seat 17.3/kg/cm |
Key Features
- Easy installation
- Low leakage
- Long service life
Product Description
Globe Valve Cast Iron (200 mm) is an innovative valve design that allows water to flow through the valve without clogging or leaking. The unique shape of the GLOBE Valve creates a seal around the stem of the valve, preventing any debris from entering the system. This prevents sediment build up which can cause problems such as reduced pressure, leaks, and poor performance.
- Good corrosion resistance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working pressure for the Globe Valve Cast Iron is 13 kg/cm for the body and 8.5 kg/cm for the seat.
This valve features flanged ends as per DIN 2533 Raised Face.
The pressure rating for the 200 mm model is PN10.
The handwheel is made of cast iron as per IS 210 Gr. FG 200, while the stud nut and washer are made of carbon steel as per IS 1367.
This globe valve has a straight pattern design.
The hydraulic test pressure for the body is 17 kg/cm and for the seat, it is 11.3 kg/cm.
The product standard for this globe valve is BS 5152/DIN 86251.
The unique shape of the globe valve creates a seal around the stem, preventing debris from entering the system and reducing sediment build-up.
The valve features a renewable type of seat and disc.
The model number of this globe valve is UPC-CIGB-433.
This valve is designed for easy installation with bolted bonnet and outside screw & yoke type rising stem.
The globe valve is noted for its good corrosion resistance, which helps extend its service life.
