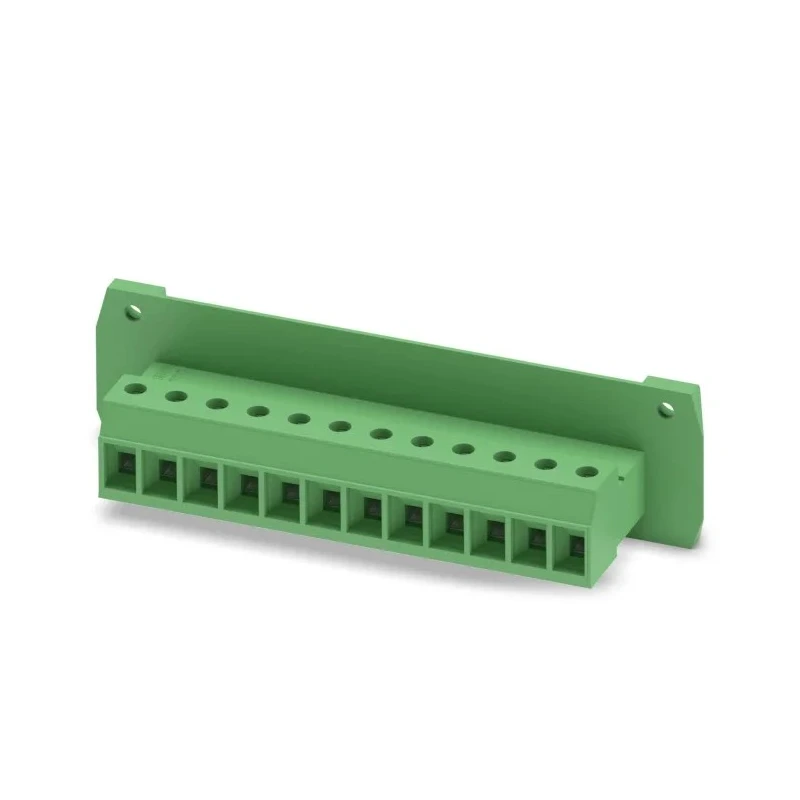

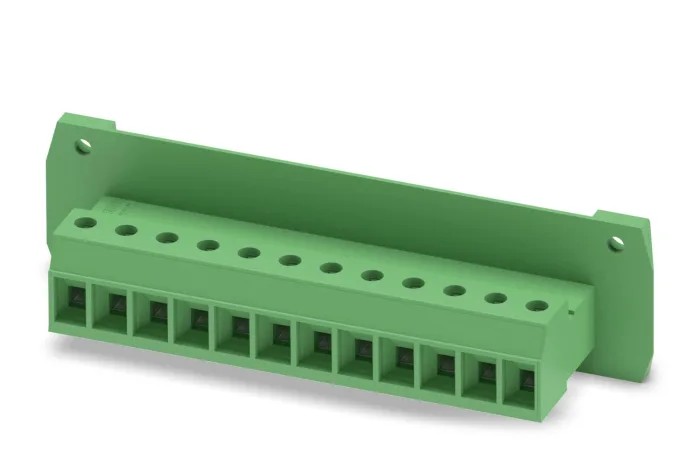

Phoenix Contact Pluggable Terminal Block 12-Contact 7.62 mm Pitch 1 Row 160V 8A Polyamide Housing 1840654

Phoenix Contact 1840654 is a pluggable terminal block designed for electronic components assemblies requiring secure and reliable connections. This 12-contact terminal block features a 7.62 mm pitch and a single row configuration, ideal for compact PCB designs and industrial electrical applications.

The terminal block housing is constructed from robust polyamide material, providing excellent insulation and durability under demanding conditions. Rated for 160 volts and 8 amperes current capacity, it is suitable for moderate power electronic circuits.

Wire connection is achieved through a solder method, ensuring secure mechanical and electrical contact. It supports a wide range of wire sizes, from 0.14 mm² minimum to 10 AWG maximum, making it versatile for various wiring requirements.

Compact dimensions with a length of 32 mm, depth of 30.5 mm, and width of 113.06 mm allow efficient utilization of PCB space. The green color coding aids easy identification in complex wiring harnesses, and straight orientation simplifies installation layouts.

The terminal's contacts are tin-plated, imparting excellent conductivity and resistance to corrosion, essential for maintaining performance reliability over time. It includes direct mounting capabilities for ease of assembly.

Commonly employed in industrial automation, manufacturing, electronic testing, and power supply assemblies, this terminal block caters to diverse applications including control cabinets, machinery wiring, and instrumentation panels.

This product originates from Poland, a recognized manufacturing hub for high-quality electronic connectors. It complies with relevant electrical standards but does not list specific approvals or certifications.

The terminal block has a 7.62 mm pitch for space-efficient installation. Housing is made of durable polyamide ensuring safety and longevity. Rated voltage of 160V and current capacity of 8A meets industrial standards. Connection method utilizes solder ensuring secure wiring.

Compact dimensions with length of 32 mm and depth of 30.5 mm for optimized PCB footprint. Supports wire sizes from 24 AWG to 10 AWG with a minimum cross-section of 0.14 mm². Color-coded in green for easy identification and wiring.

Straight orientation facilitates direct routing in assemblies. Single row configuration allows for straightforward modular setups. Contact surfaces are tin-plated to enhance conductivity and corrosion resistance. Explore more from Phoenix Contact and related Pluggable Terminal Blocks within EnvMart’s extensive electronics components category for industrial and commercial applications.
