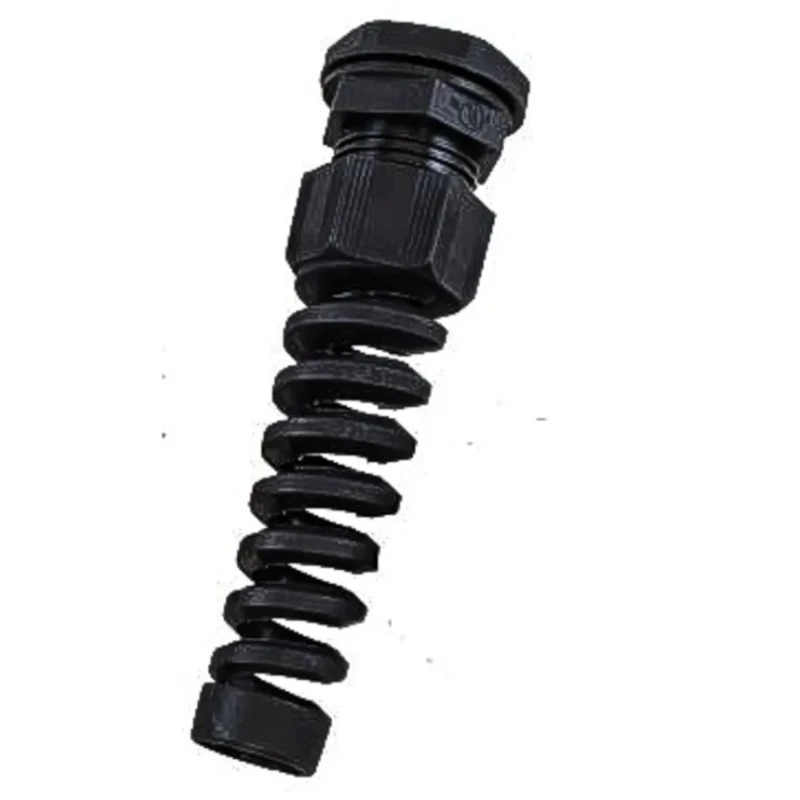

Alpha Wire Black Polyamide 6 Cable Gland FIT Wire Management Series PG11 Thread, 5 mm Min., 10 mm Max., IP66, IP68
Specifications
| Country of Origin | India |
|---|---|
| Brand | Alpha Wire |
| Material | Polyamide 6 |
| Colour | Black |
| Temperature range | -20°C to +100°C (Permanent), -30°C to +150°C (Intermittent) |
| Model | PG11 |
| IP Rating | IP66, IP68 |
| Series | FIT Wire Management |
| Maximum Operating Temperature | 150°C |
| Thread Size | PG11 |
| Minimum Operating Temperature | -30°C |
| Thread Length | 8 mm |
| Clamping Range | 5 - 10 mm |
| Thread Diameter | 18.6 mm |
| Standards/Approvals | CSA, UL |
| Maximum Cable Diameter | 10mm |
| Minimum Cable Diameter | 5mm |
| Flammability | V2 (According to UL94) |
Key Features
- Constructed from durable black Polyamide 6 material ensuring long-lasting performance.
- Supports cable diameters ranging from 5 mm minimum to 10 mm maximum.
- Equipped with a locknut for secure fitting and enhanced strain relief.
- Rated for IP66 and IP68 to provide excellent dust and water resistance.
- Operates reliably within temperature ranges from -30°C to 150°C, with intermittent tolerance up to 150°C.
- Includes a robust Chloroprene rubber O-ring seal for superior protection against environmental ingress.
- Complies with CSA and UL standards ensuring product safety and reliability.
- Suitable for telecommunications, control, instrumentation, and electrical power cabling applications.
Product Description
Alpha Wire PPS11 BK080 Cable Gland from the FIT Wire Management Series is a high-quality black Polyamide 6 cable gland designed to provide secure cable management and protection in demanding industrial and electrical environments. Featuring a PG11 thread and a clamping range for cable diameters between 5 mm and 10 mm, it offers robust strain relief and environmental sealing suitable for varied applications.
This cable gland is rated IP66 and IP68, meaning it is dust-tight and capable of withstanding immersion beyond one meter in fresh water, making it ideal for telecommunications, control, instrumentation, data transmission, and electrical power cables. Additionally, it offers resistance to dirt and sand, ensuring reliable protection in harsh conditions.
Constructed from durable Polyamide 6, this gland includes a Chloroprene rubber O-ring seal and locknut for enhanced sealing and strain relief. The operational temperature rating spans from -30°C to 150°C, with permanent usage up to +100°C, rendering it suitable for various industrial applications. The product complies with CSA and UL standards, providing reliability and safety certifications.
The gland's flame retardant property is certified as V2 under the UL94 standard, indicating it will self-extinguish flames in vertical orientation within 30 seconds, enhancing safety in installations.
Durable Polyamide 6 construction for longevity. Clamping range between 5 mm and 10 mm to support various cable sizes. IP66 and IP68 ratings for superior dust and water ingress protection. Includes locknut and robust sealing components.
Operational temperature from -30°C to 150°C for versatility. Compliant with CSA and UL safety standards. Flame retardant with UL94 V2 rating. Suitable for telecommunications, control, instrumentation, and electrical power.
This cable gland is a reliable choice for industrial, telecommunications, manufacturing, and water treatment sectors where dependable cable protection and management are critical. Explore more cable glands and fittings in the Wires & Cables category at EnvMart for comprehensive solutions.
Explore more products in our Cable Glands & Fittings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping range of this cable gland is from 5 mm minimum to 10 mm maximum, accommodating various cable sizes.
This model is rated IP66 and IP68, providing excellent dust-tight and water-resistant properties.
It operates reliably within a temperature range from -30°C to 150°C, with permanent usage up to +100°C.
The cable gland is constructed from durable black Polyamide 6 material, ensuring long-lasting performance.
It complies with CSA and UL standards, ensuring product safety and reliability.
Yes, it includes a robust Chloroprene rubber O-ring seal for superior protection against environmental ingress.
The thread size of this cable gland is PG11, which is standard for various applications.
The flammability rating is V2 according to UL94, indicating it will self-extinguish flames in a vertical orientation within 30 seconds.
It is suitable for telecommunications, control, instrumentation, data transmission, and electrical power cabling applications.
The thread diameter of this cable gland is 18.6 mm, which is compatible with PG11 fittings.
It is equipped with a locknut that enhances strain relief, ensuring secure fitting and protection for the cables.
The country of origin for this cable gland is India.
