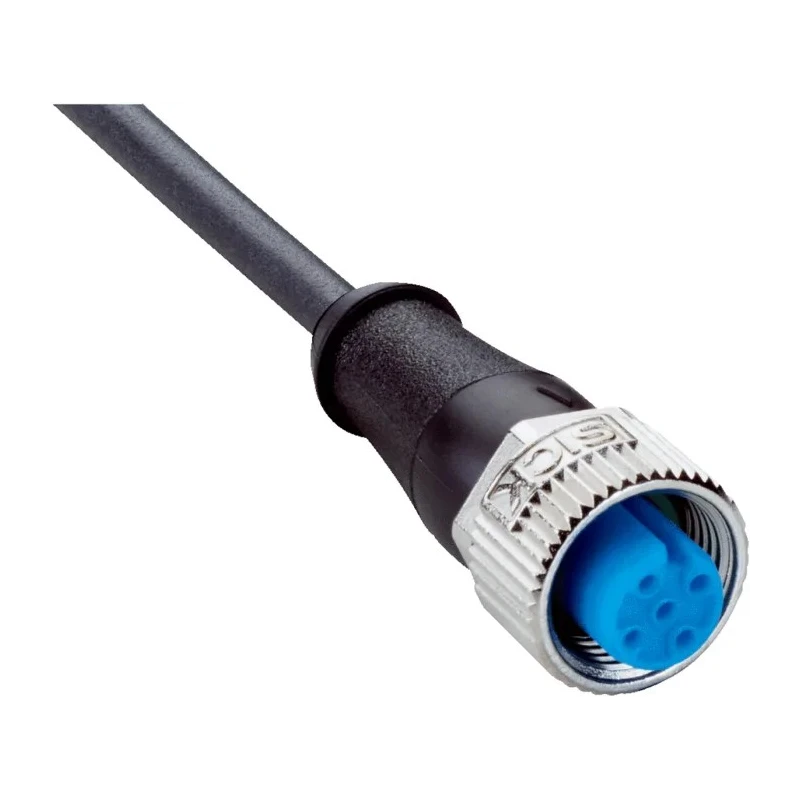

SICK Sensor Actuator Cable Female 5 Way Straight M12 to Unterminated 10 m Polyurethane Jacket YF2A15-100UB5XLEAX / 2095619

The SICK YF2A15-100UB5XLEAX / 2095619 is a high-quality Sensor Actuator Cable featuring a 10 m length and a durable polyurethane black jacket, specifically designed for industrial automation and control applications. It offers a female 5 way straight M12 connector on one end and an unterminated 5 conductor wiring on the other, allowing custom termination suited to varied installation needs.

This cable is engineered to provide reliable connections for safety light curtain senders and controllers, as well as actuator outputs wired to safety relays in machinery. The polyurethane jacket provides robust resistance to abrasion and mechanical wear, suitable for areas experiencing continuous movement or contact.

Voltage compatibility is rated at 125V, ensuring safe operation within typical low-voltage control circuits. The cable is certified with ingress protection ratings IP65, IP66K, and IP67, making it resistant to dust infiltration, high-pressure washdowns, and temporary immersion, thus suitable for harsh industrial environments including washdown and dusty production zones.

It complies with rigorous international standards such as IEC 60068-2-27 for shock, IEC 60529 for ingress protection, IEC 61496-1 for safety electro-sensitive devices, IEC 61508 and IEC 62061 for functional safety, and ISO 13849-1 for safety-related parts of control systems.

Applications include linking sensor fields to cabinet inputs/outputs in automation systems, wiring actuator outputs, and connecting safety light curtain equipment. The flexible cable length and open termination end enable custom configurations for diverse industrial scenarios.

The 10 m length allows flexible installation in large industrial setups. Features a straight M12 female connector on one end and unterminated 5-pin wiring on the other for custom termination. Polyurethane jacket provides excellent abrasion resistance and durability in harsh environments.

Rated for 125V, suitable for low-voltage control and safety circuits. Ingress protection rated IP65, IP66K, and IP67 for dust, water jet, and temporary immersion resistance. Meets multiple industrial standards including IEC 60068-2-27, IEC 60529, and IEC 61496-1.

Compatible with safety light curtain systems and actuator wiring in machinery. Explore a wide range of sensor actuator cables and related industrial connectors on EnvMart for your automation and control needs.
