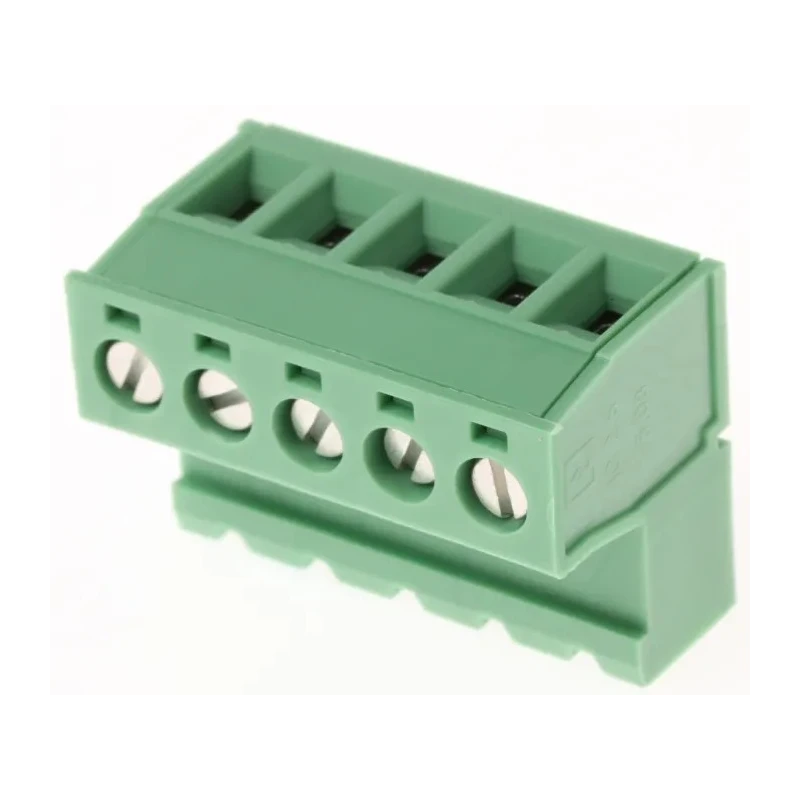

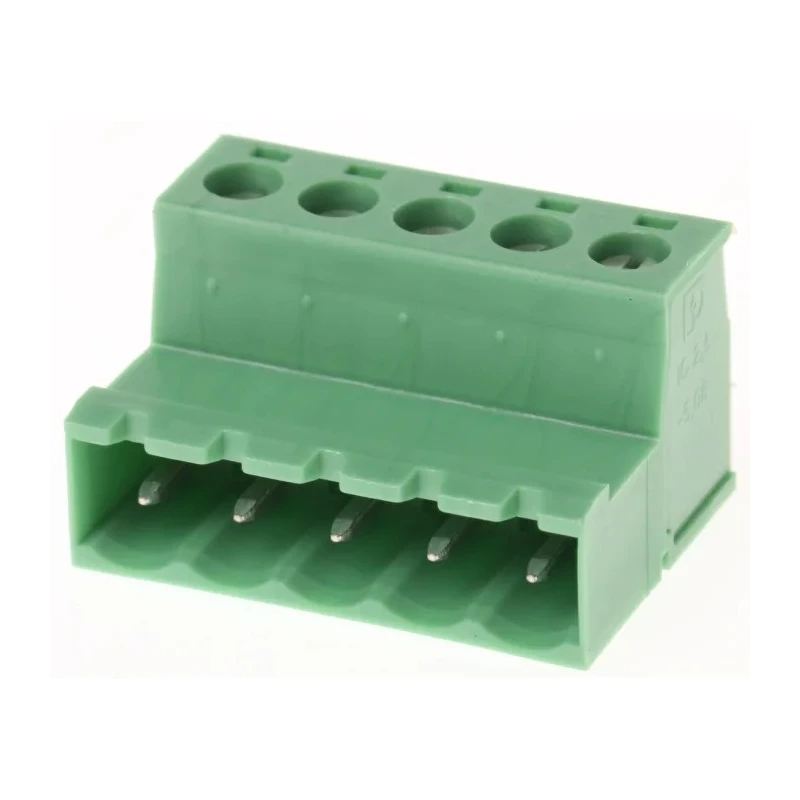

Phoenix Contact CLASSIC COMBICON IC Series Pluggable Terminal Block, 5-Contact, 5.08 mm Pitch, 1 Row, 1786200

Phoenix Contact 1786200 CLASSIC COMBICON IC Series Pluggable Terminal Block is engineered as a 5-contact, 5.08 mm pitch single-row PCB terminal connector designed for reliable electrical connections in harsh industrial and electronic environments.

The terminal block mounts directly onto printed circuit boards, accommodating wire sizes ranging from 24 AWG to 12 AWG (0.2 mm² to 2.5 mm²) via a screw-in connection method. Its angled orientation facilitates wire management in confined spaces, such as LED lighting setups, by allowing connections from the underside.

Constructed of durable green polyamide housing, this product delivers mechanical robustness and electrical insulation. The tin-plated contacts are resistant to corrosion, ensuring lasting conductivity. Designed for a maximum current of 12 amperes and voltage rating of 320 volts, it withstands rigorous operational conditions.

The terminal sleeve protects conductors from damaging radial forces caused by screw tightening. The product is built for low temperature rise during operation, thus reducing the risk of PCB damage due to overheating. Its UL 94V-0 rating confirms that the material is fire retardant and self-extinguishing within 10 seconds, enhancing safety in critical applications.

The terminal block is part of Phoenix Contact's CLASSIC COMBICON IC series, which features inverted pin contacts and screw connections optimized for secure, touch-proof device outputs or cable connections. It integrates smoothly with the MSTB 2.5 range and can be adapted for panel feed-through applications using specific assembly frames.

Supports a current rating of 12A and voltage rating of 320V for reliable electrical connections. Constructed from durable green polyamide housing to withstand industrial environments. Compatible with wire sizes from 24 AWG to 12 AWG (0.2 mm² to 2.5 mm²) using screw connection method.

Angled orientation design enables easier wire dressing in compact spaces such as LED systems. Tin-plated, rust-resistant contacts ensure longevity and consistent conductivity. Terminal sleeve protects conductor from radial forces exerted by screw connection.

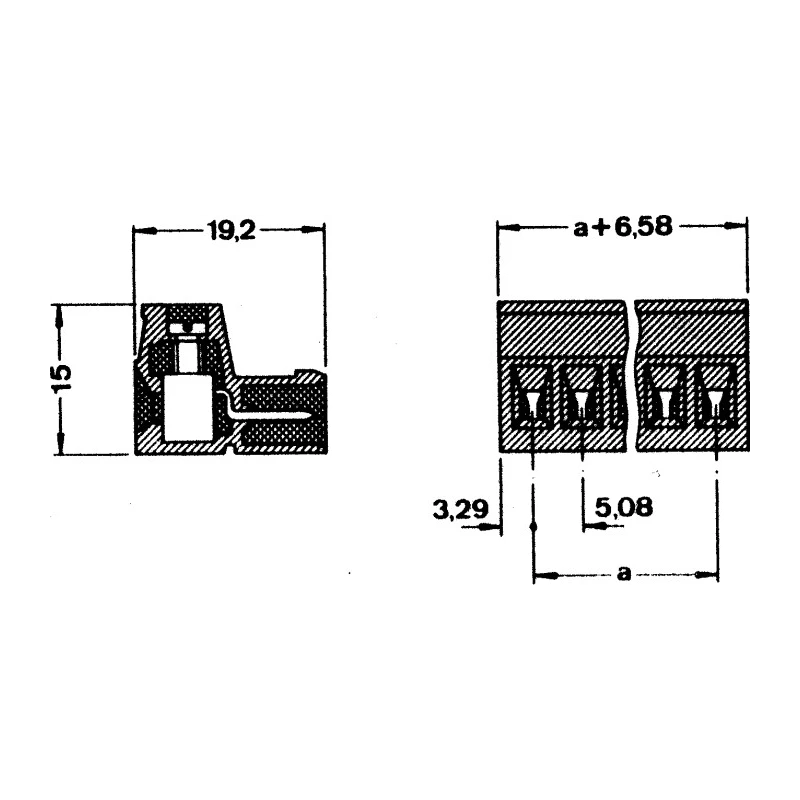

Low temperature rise minimizes PCB damage from overheating during operation. Materials comply with UL 94V-0 fire safety standards. Dimensions: 19.2 mm length, 26.9 mm width, 15 mm depth for compact PCB designs. Origin: Germany.

This pluggable terminal block is ideal for industrial automation, electronic manufacturing, LED lighting systems, and other applications requiring robust yet compact PCB wire connections. Phoenix Contact products are rigorously tested to meet international quality and safety standards.
