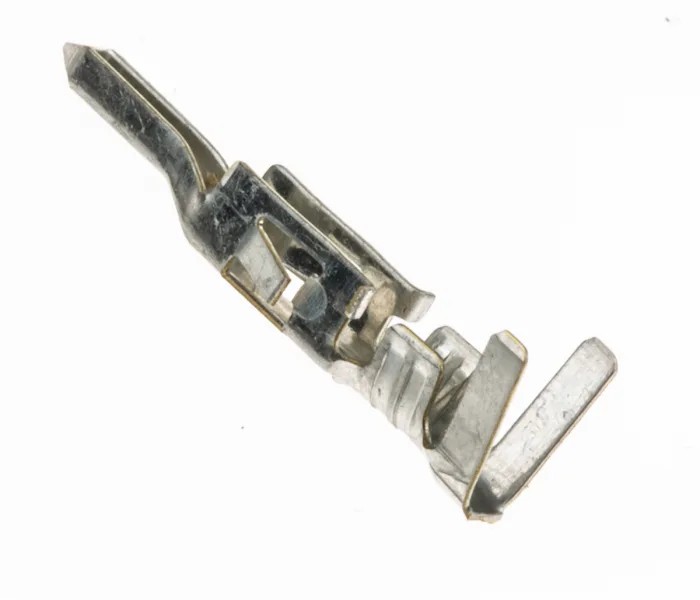

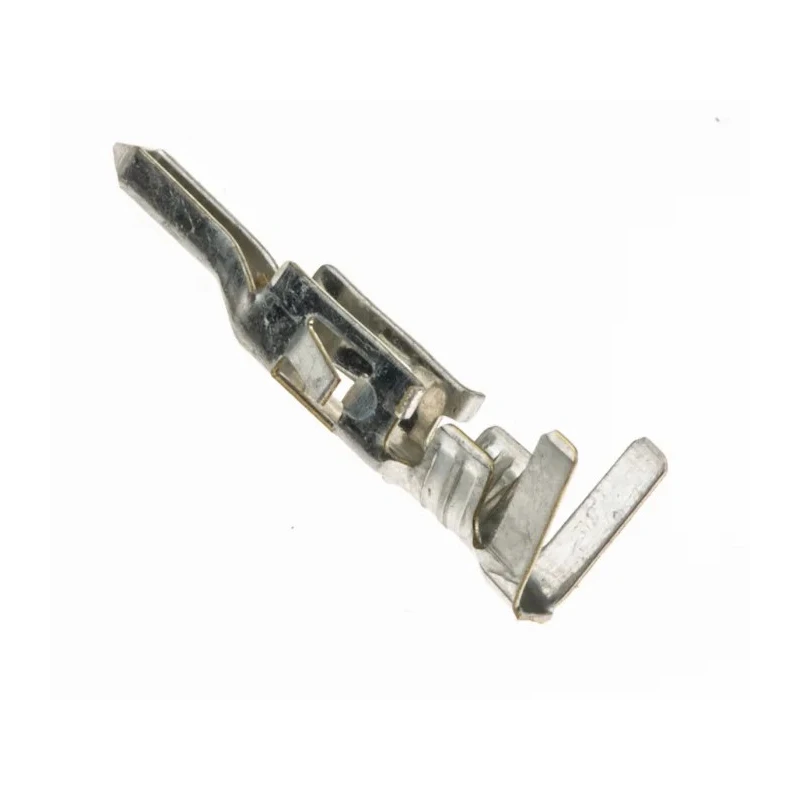

Molex 5558 Series Male Crimp Terminal for Mini-Fit Jr. Plug Housing, 9A, Tin Plated Brass, 24 AWG Min to 18 AWG 39-00-0041
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr. Plug Housing, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
| Molex 5558 Series Male Crimp Terminal, 24 AWG Min Crimp, 18 AWG MaxBrand | Molex |
Key Features
- Constructed from brass with tin plating for reliable conductivity and corrosion resistance.
- Features multiple contact points for secure electrical connection.
- Locking tangs ensure firm retention in Mini-Fit Jr. connector housings.
- Supports wire sizes 24 AWG minimum to 18 AWG maximum (0.2 mm² to 0.8 mm²).
- Maximum contact resistance of 10 milliohms ensuring low signal loss.
- Operational temperature range from -40°C to 105°C for versatile applications.
- Termination type is crimp, suitable for reliable wire connections.
- Manufactured in the United States to strict quality standards.
Product Description
Molex 39-00-0041 is a Male Crimp Terminal from the 5558 Series, engineered for use with Mini-Fit Jr. plug housings and compatible connector housings including Mini-Fit TPA and Mini-Fit BMI. It supports robust electrical connections with multiple points of contact and a locking tang design that prevents accidental disconnection.
Constructed from brass with tin plating, this terminal delivers excellent conductivity and resistance to corrosion, making it reliable for demanding industrial and commercial applications. It accommodates wire sizes ranging from 24 AWG minimum to 18 AWG maximum or 0.2 mm² to 0.8 mm², and supports a maximum current of 9 amperes.
The terminal is designed for crimp termination, providing a secure mechanical and electrical bond with the cable. It maintains a low maximum contact resistance of 10 milliohms, which is crucial for maintaining signal integrity and power efficiency. It is rated for operation in temperature ranges from -40°C to 105°C, suiting it for harsh environments.
This product finds applications across automotive, industrial automation, medical devices, communications, networking, and consumer electronics sectors where reliable connector contacts are essential.
Male Crimp Terminal designed for Mini-Fit Jr. plug and compatible housings. Brass construction with tin plating for electrical and corrosion performance. Multiple points of contact and locking tangs ensure secure electrical connections.
Fits wires from 24 AWG to 18 AWG (0.2 mm² to 0.8 mm²). Maximum contact resistance of 10 mΩ minimizes electrical loss. Operational from -40°C to 105°C for wide-ranging environments. Crimp termination type suits industrial and commercial wiring needs.
Manufactured in the United States, this Molex 5558 Series terminal meets strict standards for connector performance and reliability. Suitable for industrial, automotive, medical, communication, and consumer electronics applications, it offers a high-quality wire termination solution within Mini-Fit Jr. systems.
Explore further components and connectors in the Electronics & Electricals category on EnvMart to complement your wiring and assembly projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this male crimp terminal is 9 amperes.
This terminal supports wire sizes ranging from 24 AWG minimum to 18 AWG maximum, or 0.2 mm² to 0.8 mm².
The terminal is constructed from brass with tin plating, which provides reliable conductivity and corrosion resistance.
It operates within a temperature range of -40°C to 105°C, making it suitable for various applications.
This model uses crimp termination, which provides a secure mechanical and electrical bond with the cable.
The maximum contact resistance is 10 milliohms, ensuring low signal loss.
It is designed for use with Mini-Fit Jr. plug housing, as well as Mini-Fit TPA and Mini-Fit BMI connector housings.
Key features include multiple contact points for secure connections, locking tangs to prevent disconnection, and corrosion resistance due to tin plating.
This terminal is suitable for applications in automotive, industrial automation, medical devices, communications, networking, and consumer electronics.
This terminal is manufactured in the United States to strict quality standards.
The gender of this crimp terminal is male.
The locking tangs ensure firm retention in Mini-Fit Jr. connector housings, preventing accidental disconnection during use.
