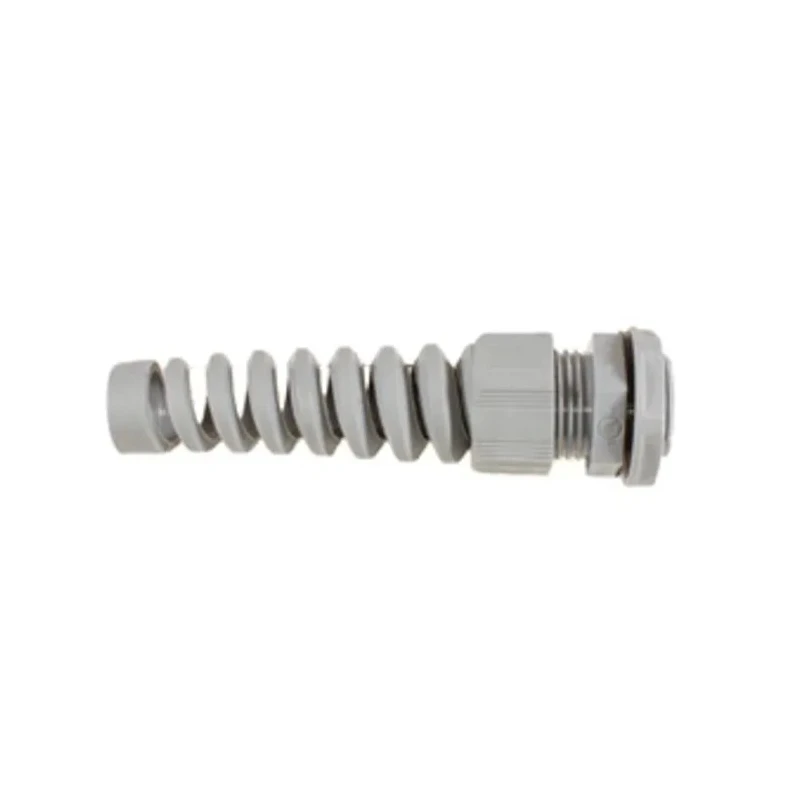

Alpha Wire FIT Wire Management Series Slate Chloroprene Rubber Polyamide Cable Gland PG13.5 Thread, 6 mm Min. PPS13 SL080
Specifications
| Country of Origin | India |
|---|---|
| Brand | Alpha Wire |
| Material | Chloroprene Rubber, Polyamide |
| Colour | Slate |
| Temperature range | -20°C to +100°C (Permanent), -30°C to +150°C (Intermittent) |
| Model | PPS13 SL080 |
| IP Rating | IP66, IP68 |
| Series | FIT Wire Management |
| Maximum Operating Temperature | 150°C |
| Thread Size | PG13.5 |
| Minimum Operating Temperature | -20°C |
| Thread Length | 10 mm |
| Clamping Range | 6 - 12 mm |
| Thread Diameter | 20.4 mm |
| Standards/Approvals | CSA, UL 514, UL 94V-2 |
| Maximum Cable Diameter | 12mm |
| Minimum Cable Diameter | 6mm |
| Flammability | V2 (According to UL94) |
Key Features
- The cable gland features a robust chloroprene rubber O-ring and polyamide 6 body for durability.
- It provides IP66 and IP68 ratings for dusttight and waterproof protection.
- Locknut is included for secure installation and strain relief.
- Operates in temperature ranges from -20°C to +150°C, including intermittent conditions.
- Complies with CSA, UL 514, and UL 94V-2 standards ensuring flame retardancy.
- Clamping range is designed for cable diameters between 6 mm and 12 mm.
- The gland thread size is PG13.5 with a 10 mm thread length and 20.4 mm diameter.
- Suitable for telecommunications, control, instrumentation, and electrical power cable protection.
Product Description
Alpha Wire PPS13 SL080 FIT Wire Management Series Cable Gland combines high-quality polyamide and slate chloroprene rubber materials, engineered for superior cable protection with strain relief. The gland supports cables with a diameter ranging from 6 mm minimum to 12 mm maximum and features a thread size of PG13.5. It ensures a secure fit and environmental sealing with included locknut and high-performance rubber seals.
Providing IP66 and IP68 ratings, this cable gland offers resistance to dust, dirt, and submersion in water up to 5 bars for 30 minutes, making it suitable for demanding industrial and outdoor applications. The product performs reliably in temperatures from -20°C to 100°C for continuous operation and up to 150°C intermittently.
Constructed with polyamide 6 body and chloroprene rubber O-ring, it complies with industry standards including CSA, UL 514, and flammability rating UL 94 V2, ensuring enhanced safety and durability.
The gland's specifications include a thread length of 10 mm and external thread diameter of 20.4 mm, designed for easy integration with compatible fittings. Its large clamping range supports flexible installation over varying cable sizes. Locknut inclusion provides additional mechanical strength to the cable connection.
This cable gland is ideal for telecommunications, control systems, instrumentation, data cables, and electrical power transmission with excellent protection against environmental hazards such as water ingress, dust, dirt, and sand.
The gland supports a clamping range of 6 to 12 mm, accommodating a variety of cable sizes. IP66 and IP68 ratings confirm protection against dust and water immersion. Robust materials include polyamide 6 and chloroprene rubber for harsh conditions.
Temperature tolerant from -20°C to +150°C with permanent and intermittent ratings. Flame retardant with UL 94 V2 classification ensuring safety compliance. Comes with a locknut to secure cable connections against strain.
Thread size PG13.5 with a thread length of 10 mm facilitates installation. Explore the comprehensive range of Alpha Wire cable glands and fittings available at EnvMart for reliable industrial cable management solutions.
Explore more products in our Cable Glands & Fittings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping range of this model is designed for cable diameters between 6 mm and 12 mm.
It has IP66 and IP68 ratings, providing protection against dust and water immersion.
This unit operates at temperatures from -20°C to +100°C for continuous use and up to 150°C for intermittent conditions.
It is made of chloroprene rubber for the O-ring and polyamide 6 for the body, ensuring durability.
The thread size is PG13.5 with a thread length of 10 mm and an external thread diameter of 20.4 mm.
It complies with CSA, UL 514, and UL 94V-2 standards, ensuring flame retardancy and safety.
Yes, a locknut is included for secure installation and strain relief.
This model is suitable for telecommunications, control systems, instrumentation, and electrical power cable protection.
The maximum cable diameter that this gland can accommodate is 12 mm.
The minimum operating temperature for this unit is -20°C.
The country of origin for this product is India.
It has a flammability rating of V2 according to UL 94, indicating its flame retardant properties.
