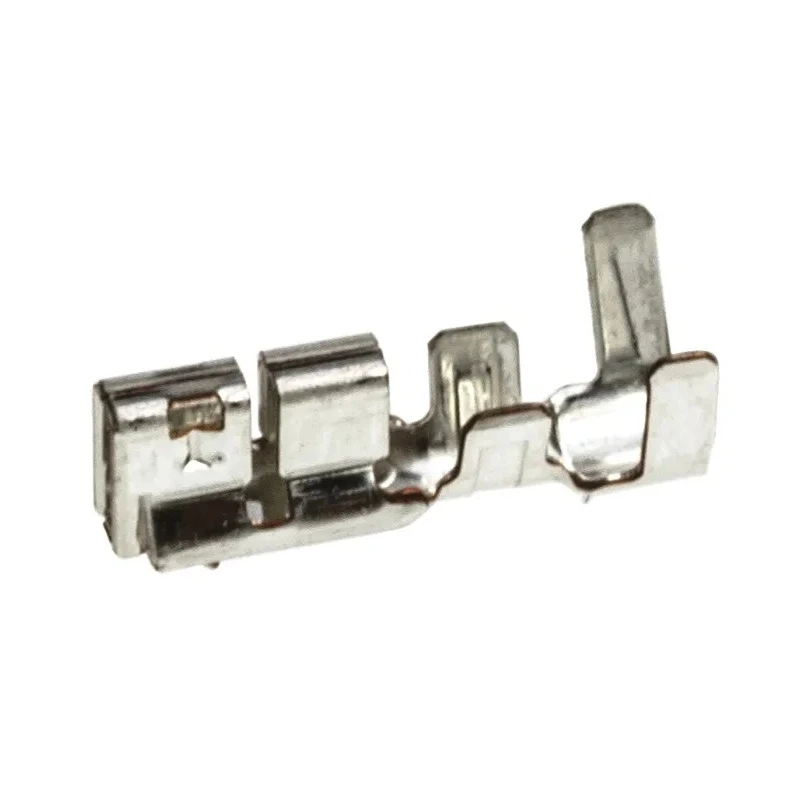

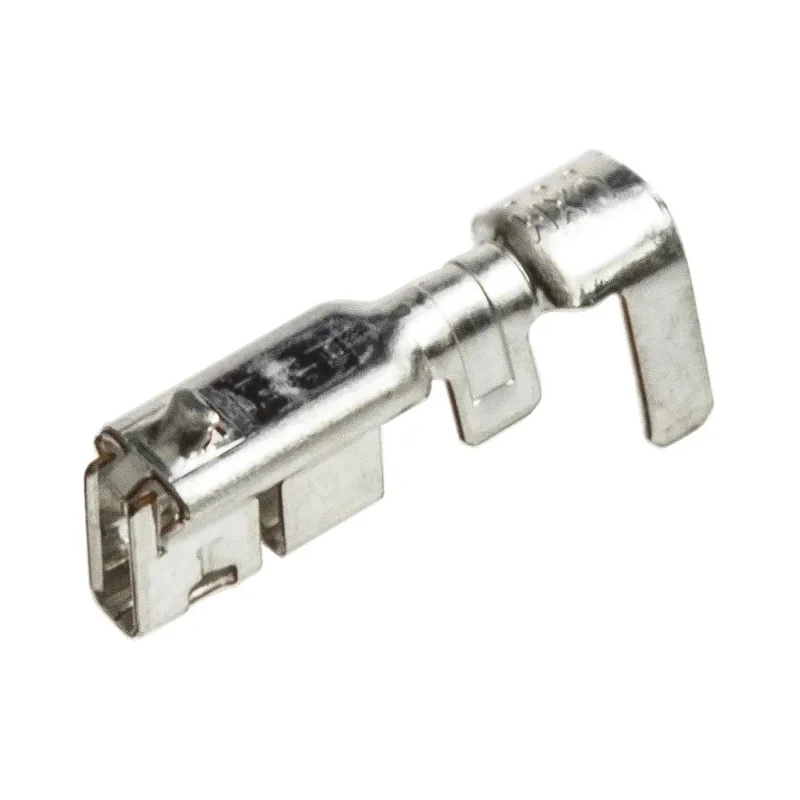

Molex 56134 Series Female Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max, 5A Current, Tin Plated Copper Alloy 56134-9000

Molex 56134-9000 Female Crimp Terminal is engineered for reliable electronic component connections, supporting wire sizes from 26 AWG minimum to 22 AWG maximum and rated current of 5A. Designed for MicroClasp Connector Housing, this terminal ensures precise and durable performance in demanding industrial environments.

The contacts are made of copper alloy with tin plating, providing excellent electrical conductivity and resistance to corrosion, suitable for a broad operating temperature range between -25°C and 85°C. The crimp termination method guarantees secure fastening, ideal for heavy-duty and high-reliability applications.

An audible mating click confirms secure wire attachment, while the inner positive lock mechanism prevents accidental disconnections, reducing downtime risks. The design ensures low insertion and withdrawal forces to facilitate efficient assembly processes.

Despite its robustness, the terminal maintains a lightweight form, approximately 36mg, minimizing mechanical load on printed circuit boards (PCBs).

This terminal is widely applicable in medical equipment, automotive systems, telecommunications, domestic appliances, and aerospace controls, providing dependable electrical connectivity.

Designed for MicroClasp Connector Housing compatibility. Rated for 5A current with a maximum voltage rating of 250V. Features tin-plated copper alloy contacts to ensure high electrical conductivity. Operates reliably from -25°C to 85°C for diverse industrial conditions.

Crimp termination provides secure and robust connections. Audible mating click confirms wire attachment security. Inner positive lock prevents accidental disconnections and operational downtime. Low insertion and withdrawal force supports quick assembly.

Lightweight construction at 36mg minimizes PCB strain. Suitable for medical, automotive, telecommunications, aerospace, and appliance industries. Explore additional Molex electronic component products for enhanced connectivity and performance in your industrial, manufacturing, or laboratory applications at EnvMart.
